Internet #204347774

Model # SMT130M

0885917000547

Delta Breez

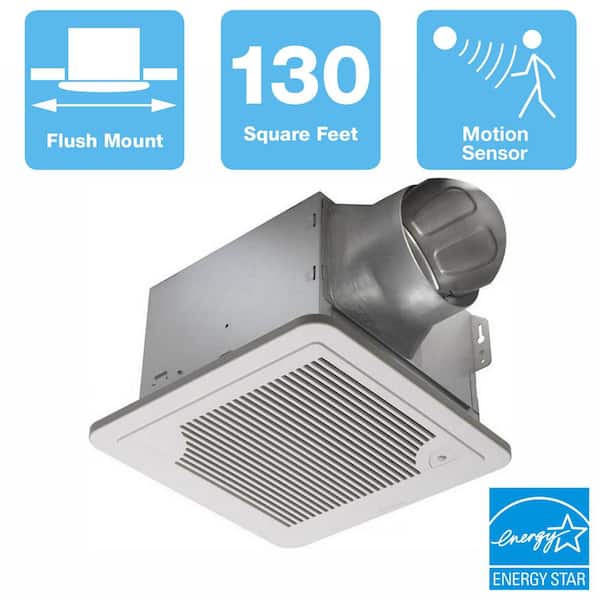

Smart Series 130 CFM Ceiling Bathroom Exhaust Fan with Motion Sensor and Timer Delay, ENERGY STAR

  • DC brushless motor consumes less power for energy conservation
  • Includes motion sensor and adjustable, low speed controls
  • 130 CFM airflow with 0.3 sones of ultra-quiet operation
$ 155 19 /box
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • DC brushless motor consumes less power for energy conservation
  • Includes motion sensor and adjustable, low speed controls
  • 130 CFM airflow with 0.3 sones of ultra-quiet operation
Set it and forget it. The Delta Breez Smart SMT130M is a powerful yet quiet bathroom exhaust fan equipped with a motion sensor. Adjustable delay timer for the ultimate in convenience and worry-free operation.
  • Motion sensor triggers full speed operation until user-set delay time (0.5, 5, 15, 30, 45 or 60 minutes)
  • Adjustable low speed for continuous operation (0, 50, 70 or 90 CFM options)
  • Virtually silent less than 0.3 Sones
  • Indicator light underneath the grille assures you that this quiet fan is running
  • Precision engineered with DC brushless motor for extended reliability, this fan will outlast many household appliances
  • Energy star qualified for efficient cost-saving operation
  • Galvanized steel construction resists corrosion, equipped with metal duct adapter
  • Fan impeller stops if obstructed, for safe worry-free operation
  • Attractive grille gives your bathroom a fresh look
  • Peace of mind quality, performance and reliability from the world's largest DC brushless fan manufacturer
  • 3-year warranty

Product Overview

  • DC brushless motor consumes less power for energy conservation
  • Includes motion sensor and adjustable, low speed controls
  • 130 CFM airflow with 0.3 sones of ultra-quiet operation
Model #: SMT130M
Internet #: 204347774

Set it and forget it. The Delta Breez Smart SMT130M is a powerful yet quiet bathroom exhaust fan equipped with a motion sensor. Adjustable delay timer for the ultimate in convenience and worry-free operation.

  • Motion sensor triggers full speed operation until user-set delay time (0.5, 5, 15, 30, 45 or 60 minutes)
  • Adjustable low speed for continuous operation (0, 50, 70 or 90 CFM options)
  • Virtually silent less than 0.3 Sones
  • Indicator light underneath the grille assures you that this quiet fan is running
  • Precision engineered with DC brushless motor for extended reliability, this fan will outlast many household appliances
  • Energy star qualified for efficient cost-saving operation
  • Galvanized steel construction resists corrosion, equipped with metal duct adapter
  • Fan impeller stops if obstructed, for safe worry-free operation
  • Attractive grille gives your bathroom a fresh look
  • Peace of mind quality, performance and reliability from the world's largest DC brushless fan manufacturer
  • 3-year warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Delta Breez Delta Breez Delta Breez Delta Breez
Name Smart Series 130 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR Smart Series 150 CFM Ceiling Bathroom Exhaust Fan, ENERGY STAR Smart Series 150 CFM Dual Speed Ceiling Bathroom Exhaust Fan, ENERGY STAR Smart Series 130 CFM Ceiling Bathroom Exhaust Fan with Motion Sensor and Timer Delay, ENERGY STAR
Price
$128.69 /box
$142.49 /box
$151.40 /box
$155.19 /box
Ratings (3) (14) (0) (2)

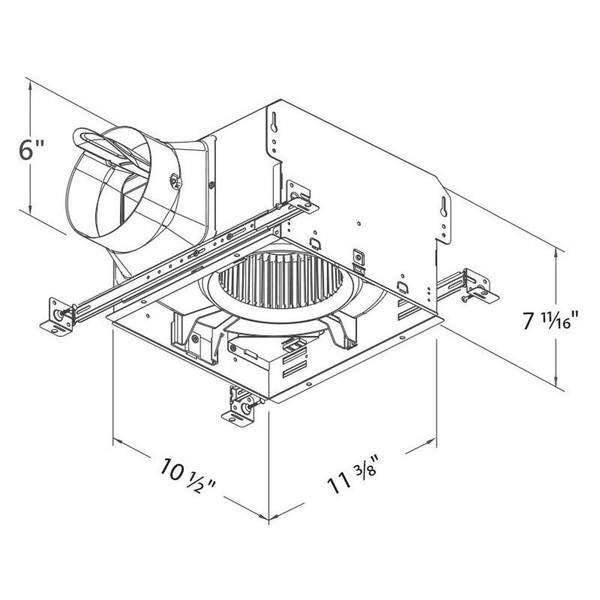

Housing Length (in.) 11.375 11.375 11.375 11.375
Maximum Room Size (sq. ft.) 130 150 150 130
Housing Width (in.) 10.5 10.5 10.5 10.5
Features Roomside Installation Roomside Installation Roomside Installation,Timer Motion Sensing,Roomside Installation,Timer
View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
11.375
Housing Width (in.)
10.5
Maximum Room Size (sq. ft.)
130
Product Height (in.)
8.225
Product Length (in.)
14
Product Width (in.)
14

Details

Air Volume (CFM)
130
Amperage (amps)
0.44
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.3
Features
Motion Sensing,Roomside Installation,Timer
Grill Shape
Square
Housing Material
Metal
Included
Hardware
Installation Type
Ceiling
Mount Type
Flush Mount
Product Weight (lb.)
12.2lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
11.5

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
3 year limited

Specifications

Dimensions

Housing Length (in.)
11.375
Housing Width (in.)
10.5
Maximum Room Size (sq. ft.)
130
Product Height (in.)
8.225
Product Length (in.)
14
Product Width (in.)
14

Details

Air Volume (CFM)
130
Amperage (amps)
0.44
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.3
Features
Motion Sensing,Roomside Installation,Timer
Grill Shape
Square
Housing Material
Metal
Included
Hardware
Installation Type
Ceiling
Mount Type
Flush Mount
Product Weight (lb.)
12.2lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120
Wattage (watts)
11.5

Warranty / Certifications

Certifications and Listings
1-UL Listed,HVI Certified
Manufacturer Warranty
3 year limited

Questions & Answers

does this require to light switches like the 150cfm

Asked by: cmillis
Thank you for your inquiry. SM130M does not have a light, will it be possible you have an inquiry for a different fan model? For BreezSmart SMT130M you would hook up the fan just like a regular single speed fan, this fan has only one switch leg. Please feel free to contact our Technical Support at (888) 979-9889 Monday – Friday, 6:00 AM to 5:00 PM PST or email us at BreezTechSupport@deltaww.com for additional assistance.
Answered by: DeltaBreezCustomerService
Date published: 2018-04-01

Does this Fan Shut off by itself after humidity drops below the setting of 50 % And the delay time is set?

Asked by: Mike
This unit is motion activated but does not contain the humidity sensor for humidity controlled operation. The 130H is the unit for that.
Answered by: Doug
Date published: 2017-10-11
  • y_2019, m_6, d_14, h_22CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_, sid_204347774, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 32ms
  • QUESTIONS, PRODUCT

Customer Reviews

Smart Series 130 CFM Ceiling Bathroom Exhaust Fan with Motion Sensor and Timer Delay, ENERGY STAR is rated 4.0 out of 5 by 2.
Rated 5 out of 5 by from Been installed for about two weeks now, very happy with this unit. It is very quiet but still mov... Been installed for about two weeks now, very happy with this unit. It is very quiet but still moves a lot of air. A very straight forward installation.
Date published: 2017-10-10
Rated 3 out of 5 by from Too noisy.... Just finished my installation. I thought the instructions could have been a little... Too noisy.... Just finished my installation. I thought the instructions could have been a little better for existing construction, but I managed. The duct size spec on the HD website is a little misleading as it says 4" "compatible". Product has a 6" duct. I guess anything is compatible with 4" if you use enough reducers, but OK, aside from another trip to HD to get a reducer, I managed. My major disappointment is with the noise. After installing and hooking up the electrical, I tried it out (no ducts yet) to confirm the electrical. It was so quiet I had to double check that it was running and moving air (it was). Now I hooked up the 6" to 4" reducer, ran it through 10-12 ft of Masterflow 4" insulated duct from HD and terminated with a Everbilt soffit exhaust vent from HD. I had expected some increase in noise due to adding these restrictions, but was not prepared for how loud it was. It's somewhat better than than 4.0 sones builder fan it replaced, but not much. It now sounds more like a typical exhaust fan and not the ultra quiet model I thought I bought. If anyone from Delta or elsewhere has ideas to lower the noise, it would be much appreciated.
Date published: 2018-09-14
