Model #DWL1300XY

6 in. 2-Axis Smart Machinist Digital Level Bluetooth 0.002/feet (0.2 mm/m) NIST-Traceable

Product Overview

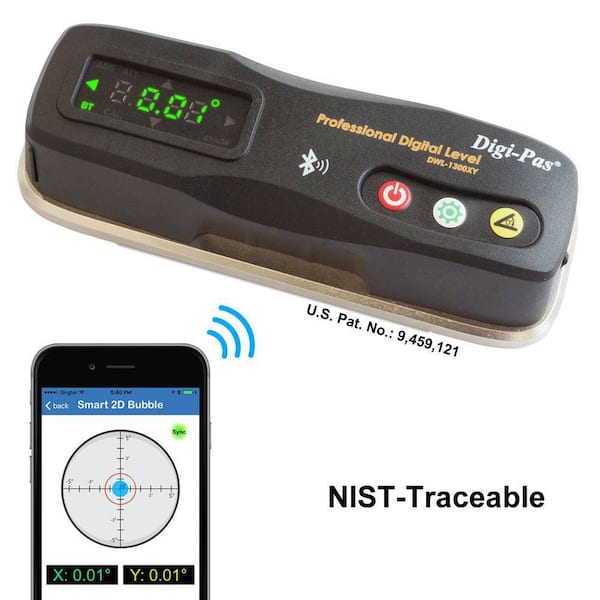

Digi-Pas DWL1300XY is an AFFORDABLE Dual-Axis, Wireless Bluetooth-enabled, Smart Machinist Level, Digital Inclinometer designed for modern industrial and professional users. SIMULTANEOUSLY reads both X and Y axis levelling status wirelessly (One App included to redeem) with smartphones/tablets while adjusting footings of precision machines and equipment. Greatly CUTDOWN installation, setup and maintenance TIME and improve alignment QUALITY with precision. Digi-Pas 2-axis Precision Digital Level is highly precise. ACCURACY performance to specification has been verified by accredited 3rd party calibration laboratories and test bodies in US, Japan and Germany in accordance with ISO/IEC 17025:2005 and/or ANSI/NCSL Z540-1 standard, traceable to NIST, JIS and DIN. Effective APPLICATIONS for INSTALLATION, SETUP and MAINTENANCE of precision CNC machines, Vision Measurement equipment, CT Scan and MRI equipment, Automotive and Semiconductor Manufacturing equipment, Precision Engineering Machinery etc.
  • Digi-Pas 2-axis smart machinist level is now very affordable, it replaces old-fashioned spirit vial level, tedious repetition on going back-and-forth checking bubble position in-between tiny graduation lines is now things of the past
  • Wirelessly pairs to smartphones/tablets (1 app inclusive for Apple/Android), instantly displays both X and Y axis level status (digital and graphic) on your phone screen while you simultaneously adjusting machines footings over Bluetooth range
  • Greatly cutdown time (by over 70%) and improve quality of installation, setup and maintenance of precision machine alignments in a smart way, tens of thousands Digi-Pas digital levels shipped worldwide in just few months
  • Resolution: 0.002/feet or 40-second (0.18 mm/m or 0.01)
  • Measurement range: 1.0 or 0 to 5.00 accuracy: 0.004/feet or 80-second (0.02) from 0 to 1.00, operating temperature range: 10° to 120°F. Bluetooth range: approximately 50 ft.
  • Accuracy of Digi-Pas digital level has been certified by accredited Calibration and Test bodies traceable to NIST, JIS and DIN, this item includes a manufacturer's Calibration Certificate, users who needs a NIST-traceable Calibration Certificate with data, please visit our website for reference sample certificates and contact our sales support team
  • Click here for more information on Electronic Recycling Programs

Compare Similar Levels

current product
6 in. 2-Axis Smart Machinist Digital Level Bluetooth 0.002/feet (0.2 mm/m) NIST-Traceable
7.5 in. Hand Tool Automatic Level Package with Tripod4-gal. Brake Bleeder Tank6 in. 2-Axis Smart Master Precision Level Bluetooth 0.0002/feet (0.02 mm/m)
BrandDigi-PasSpectra PrecisionGEARWRENCHDigi-Pas
Name6 in. 2-Axis Smart Machinist Digital Level Bluetooth 0.002/feet (0.2 mm/m) NIST-Traceable7.5 in. Hand Tool Automatic Level Package with Tripod4-gal. Brake Bleeder Tank6 in. 2-Axis Smart Master Precision Level Bluetooth 0.0002/feet (0.02 mm/m)
Price
Ratings
(3)
(0)
(4)
(5)
Level Length (in.)5.91125.9
Level TypeMultiMagneticMultiMulti
Assembled Depth (in.)1.6 in5.1 in0 in2.0 in
FeaturesDigital,Hand-HeldNo Additional FeaturesNo Additional FeaturesDigital,Hand-Held
MaterialAluminumAluminumSteelPlastic
Assembled Height (in.)2.0 in7.5 in0 in1.6 in
Assembled Width (in.)5.9 in11 in0 in5.9 in
View ProductView ProductView ProductView Product

Specifications

Dimensions

Assembled Depth (in.)
1.6 in
Assembled Height (in.)
2.0 in
Assembled Width (in.)
5.9 in
Level Length (in.)
5.9

Details

Accuracy
0.004
Condition
New
Features
Digital,Hand-Held
Hand Tool Type
Standard Level
Level Type
Multi
Material
Aluminum
Number of Vials
0
Package Quantity
1
Returnable
90-Day
Tools Product Type
Hand Tool

Warranty / Certifications

Manufacturer Warranty
1 Year

Questions & Answers

1Questions1Answers

Will this pair with a PC/windows 10?

Asked by Chaz October 20, 2019
1
Answer

Hello, No, This model, DWL1300XY, is an entry level Smart Digital Level and works with its iOS and Android App (Digi-Pas Machinist App) only. If you require connectivity with PC, you may check out Digi-Pas' more advanced model, DWL3000XY, which has the same resolution as DWL1300XY at 0.01degree. DWL3000XY comes with PC Sync Pro software which can be purchased separately and enable PC connectivity for data exportation and other advanced features. Check out more details here: DWL3000XY: https://www.digipas.com/product/precision-measurement/2-axis-precision-digital-machinist-level/dwl-3000xy.php PC Synch Pro Software: https://www.digipas.com/product/precision-measurement/2-axis-precision-digital-machinist-level/pc-sync.php Hope this helps Thanks Digi-Pas Team!

Customer Reviews

  • 3.4
    out of 3 reviews
  • 100% recommend this product
Filter by:
Showing 1-3 of 3 reviews
Digi-Pas digital level
Easy to setup with the app, although you must purchase the paid version. Calibrates easily.
by Reggiereg
Makes solo leveling easy
I really like the fact that you can put the level where it needs to go, rather than where you can see a bubble easily; the phone app lets you monitor while you adjust. It seems well built, and the operation is intuitive. The autoscaling of the 2D bubble took a moment to get used to, but I'm glad it has that automatic coarse/fine sensitivity. Important: Despite the title, it's not 6" long; it's 149 mm, or 5.87" Another reviewer didn't like paying extra for all the app features. The level comes with a card with a number on it that unlocks all the app features. Save the papers!
by Engineer
In order to use the app that’s shown in the...
In order to use the app that’s shown in the photos you have to pay an additional $20 per license.
by ERIC
1 person found this helpful
