Model #230-WS2

Store SKU #1001616203

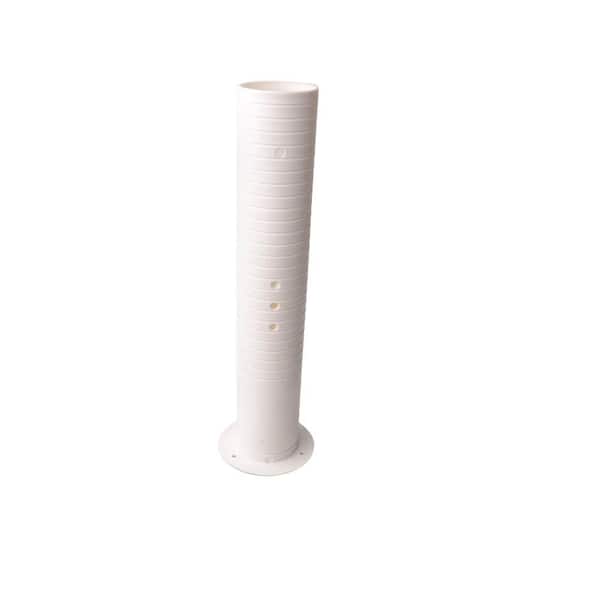

2-1/2 in. Wall Sleeve for Ductless Mini Split

  • Great for use with multiple HVAC and audio visual installs
  • Ribbed construction for easy trimming with no saw slippage
  • 3-1/2 in. flange to cover cut-out and make a clean install
  • See More Details

Product Overview

This wall sleeve creates a neat hole through the wall, and the line set is run through the wall sleeve. Made from UV stabilized ivory colored polypropylene. For use with mini split and conventional air conditioner split system line sets.
  • Creates neat, clean hole to run the line set through
  • Made from durable, sturdy polypropylene
  • 2.5 in. cutout
  • Ivory colored

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Cut-Out Depth (in.)
2.5
Cut-Out Height (in.)
14
Cut-Out Width (in.)
2.5
Product Depth (in.)
4
Product Height (in.)
14
Product Width (in.)
4

Details

AC Parts & Accessories Type
AC Line Sets
Color Family
White
Product Weight (lb.)
0.4
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
N/A

Questions & Answers

1Questions3Answers

Hoiw come this was not supplied with my mini-split purchase?

Asked by Ted October 17, 2016
3
Answers

Probably increased costs to supply it.

Customer Reviews

  • 3.7
    out of 11 reviews
  • 50% recommend this product
Filter by:
Showing 1-10 of 11 reviews
They were a little tough to cut and smaller in...
They were a little tough to cut and smaller in diameter than expected, but the copper lines fit through, barely.
by Chris
Worked great on install. cut of excess....
Worked great on install. cut of excess.
by GREGORY
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by CAMILO
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Works well. This was recommended as part of a kit....
Works well. This was recommended as part of a kit. It’sa little small, would buy the next size up next time.
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Incorrectly identified for Mr Cool 1800 BTU installation. Need to...
Incorrectly identified for Mr Cool 1800 BTU installation. Need to return.
by HomeDepotCustomer
1 person found this helpful
too small for project
too small for project
by Bob
2 people found this helpful
After receiving the wall sleeve l did not use it, I made my own. This may be the industry standar...
After receiving the wall sleeve l did not use it, I made my own. This may be the industry standard size but I found the 2 1/4" id much to small to cram two insulated refrigerated lines, a drain line, and control wire through it. They should redesign it for a 3" hole. Also every mini split manufacturer tell you to drill your wall penetration on a downward angle. The outside flange is too rigid to allow for that.
by wildbill
8 people found this helpful
makes it easy to get line set out the wall
makes it easy to get line set out the wall
by squiggy
