23.1 SEER 12,000 BTU 1 Ton Wi-Fi Ductless Mini Split Air Conditioner and Heat Pump Variable Speed Inverter - 220V/60Hz
- Energy Star 23.1 SEER yields ultra-high cost efficiency
- Wi-Fi capable (module included)
- Equipment should be sized/installed by a qualified professional.
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

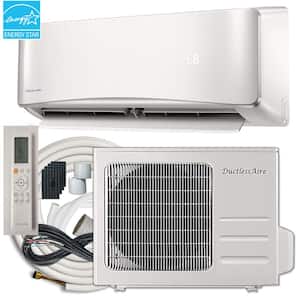

Make your home feel cooler with this DuctlessAire 12,000 BTU 1-ton Wi-Fi ductless mini split air conditioner and heat pump. The 23.1 SEER rating allows energy efficiency for lower costs. It comes with a Wi-Fi capable module for convenience. Electroplated coils resist salty air, and other corrosive elements, enabling lasting use.
Highlights
- 23.1 SEER rating, Energy Star-certified unit with estimated national average annual operating cooling cost of $70 based on AHRI certificate #9150138
- Stylish interior white wall-mount air handler
- 25-ft. kit includes copper tubing with insulation and nuts, control wire, 6 ft. drain hose, wall sleeve, wall sleeve cover and tape
- Electroplated coils withstand the effects of salty air, rain and other corrosive elements
- Special built-in low ambient kit can be used in temperatures as low as 5 deg. F for cooling operation
- Refrigerant leak detection will alarm when a refrigerant leak is detected
- Temperature sensor on remote control
- Includes one HEPA filter that traps harmful particles such as pollen, pet dander, dust mites and tobacco smoke
- Air vane switches directions from heating to cooling
- Built-in electronic diagnostic monitors abnormal operations or parts failures
- Heating belt fitted on the base plate of the outdoor unit to avoid accumulation of rain, snow or water on the base plate
- Dual washable filters remove most pollen dust, smoke and other microscopic airborne particles
- Automatically clean the evaporator to reduce build-up of bacteria and keeps the air fresh
- Sleep mode decreases heating or increases cooling by one deg. per hour for the first two hours of use, then holds the temperature steady for five hours
- Large diameter cross flow fan can bring down the indoor unit noise level by lowering the fan speed
- Anti-cold draft warms up prior to fan operation to prevent cold air in heating mode
- Louver position memory stored by microcomputer
- Turbo mode enables the unit to reach the preset temperature in the shortest time
- Click here to learn more about Eco Options and Energy Efficiency
- "Find out more about installation:
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
From the Manufacturer
Specifications
Dimensions
Air handler depth (in.) | 7.44 | Air handler height (in.) | 11.69 |
|---|---|---|---|
Air handler width (in.) | 31.57 | Condenser depth (in.) | 13.11 |
Condenser height (in.) | 21.81 | Condenser width (in.) | 31.50 |
Details
Air direction/circulation | 4-way | Air Handler BTU | 12000 BTU |
|---|---|---|---|
Air handler weight (lb.) | 18.1 | Amperage (A) | 4.05 A |
BTU Cooling Rating | 12000 BTU | BTU Heat Rating | 12000 BTU |
Color Family | White | Color/Finish | White |
Condenser weight (lb.) | 81.60 | Coverage Area (sq. ft.) | 450 |
Decibel (Sound) Rating | 24 dBA | Decibel Rating | 24 dBA |
Filter Type | Washable | Included | Heater, Remote Control |
Line Set Length (Ft.) | 25 ft | Mini Split Features | Fan only option, Sleep setting, Timer |
Minimum Outdoor Temperature (F) | -13 | Mount Location | Wall Mount |
Number of cool settings | 1 | Number of Fan Speeds | 3 |
Number of Tons | 1 ton | Pack Size | 1 |
Refrigerant Compatibility | R-410A | Returnable | 90-Day |
Voltage (v) | 220v | Wattage (watts) | Not Measured |
Zone Capacity | 1 Zone |
Warranty / Certifications
Certifications and Listings | ETL Listed | Manufacturer Warranty | 5/1 year Compressor/Parts (Registered) |
|---|---|---|---|
Seasonal Energy Efficiency Ratio (SEER) | 23.1 | Seasonal Energy Efficiency Ratio 2 (SEER 2) | N/A |
Questions & Answers
How much r410a is this system charged with
56.44 oz.
Are these pre charged line sets
Yes the unit comes precharged. The line set is not charged
What is the minimum line set? Requirement is there any link anywhere for the installation requirements
10' minimum from flare fitting to flare fitting. DuctlessAire.com
Minimum line set is 10 feet. Check out website www.ductlessaire.com click on the FAQ link
Who would connect the communication cable between the head unit and the compressor a/c guy or electrician ??
HVAC contractor
An HVAC tech can do all of the work. Mike
What size breaker?
Typically we see a 20 or 25 amp double pole breaker installed for this circuit however the final determination would be made by your HVAC or electrical contractor.
Is this a do it yourself installation?
Installation requires use of a vacuum pump and micron gauge.
Specification this unit says Fan Only Option. So there is no Auto option to set so it doesn't run constantly?
No, the indoor blower will always be on just at different levels depending on the need being called for.
The indoor fan will always run. Unlike central HVAC systems that turn the indoor blower on and off, allowing temperature to fluctuate up and down, inverter-driven mini split systems continuously monitor inside temperature and adjust output to maintain the temperature
I have a 200 sq ft room facing west. which get very warm and the insulation is poor. what size split unit should i purchase?
We highly recommend having a professional run a manual J load calculation on your space to appropriately size the system based on your application. *These estimates are for best case scenario being a square room w/ 8' ceilings, no windows and in a 72-degree climate. Of course, many other factors affect the coverage area. *12,000 btu = 600 sq. ft *18,000 btu = 900 sq. ft *24,000 btu = 1200 sq. ft
We highly recommend having a professional run a manual J load calculation on your space to appropriately size the system based on your application. *These estimates are for best case scenario being a square room w/ 8' ceilings, no windows and in a 72-degree climate. Of course, many other factors affect the coverage area. *12,000 btu = 600 sq. ft *18,000 btu = 900 sq. ft *24,000 btu = 1200 sq. ft
