Internet #301002058

Model # C036

0859802006174

E900 HARDWARE

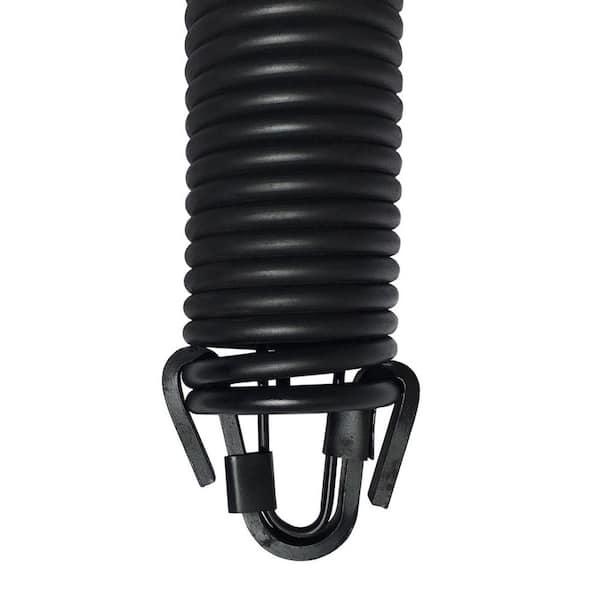

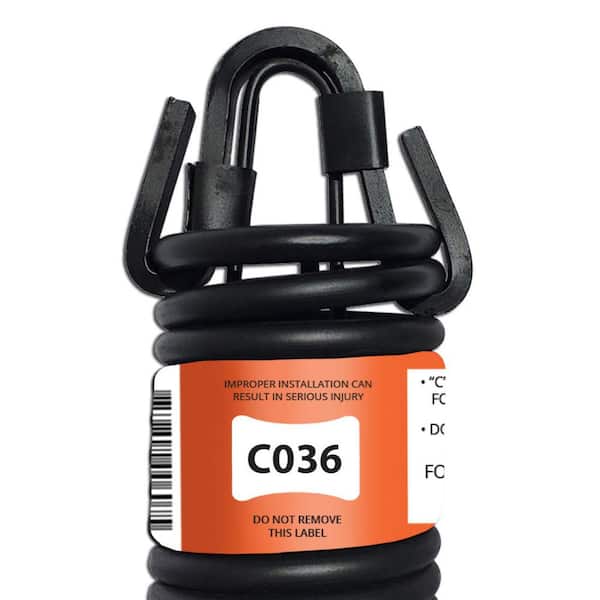

36 in. Clip-End Garage Door Spring (0.324 in. #0 Wire)

$ 158 93

Overview

The C036 36 in. Clip-End Extension Spring is a Holmes spring replacement for heavier 1-piece garage doors as well as for toy haulers using lift springs. We recommend replacing all springs at the same time for balanced door lift and even wear. A c-hook is required for a single spring installation while a w-hook is required for a double spring installation - available separately.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The C036 36 in. Clip-End Extension Spring is a Holmes spring replacement for heavier 1-piece garage doors as well as for toy haulers using lift springs. We recommend replacing all springs at the same time for balanced door lift and even wear. A c-hook is required for a single spring installation while a w-hook is required for a double spring installation - available separately.
  • Safety containment rod to prevent spring from coming loose
  • Minimum 1 in. low headroom required
  • Length over coils is 36 in.
  • Outside diameter is 2-3/4 in.
  • Wire diameter gauge is (0.331 in.) #0
  • Initial tension is 243 lbs. - 297 lbs.
  • Maximum allowable stretch is 24.5 in.

Product Overview

Model #: C036
Internet #: 301002058

The C036 36 in. Clip-End Extension Spring is a Holmes spring replacement for heavier 1-piece garage doors as well as for toy haulers using lift springs. We recommend replacing all springs at the same time for balanced door lift and even wear. A c-hook is required for a single spring installation while a w-hook is required for a double spring installation - available separately.

  • Safety containment rod to prevent spring from coming loose
  • Minimum 1 in. low headroom required
  • Length over coils is 36 in.
  • Outside diameter is 2-3/4 in.
  • Wire diameter gauge is (0.331 in.) #0
  • Initial tension is 243 lbs. - 297 lbs.
  • Maximum allowable stretch is 24.5 in.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand E900 HARDWARE E900 HARDWARE E900 HARDWARE E900 HARDWARE
Name 30 in. Clip-End Garage Door Spring (0.283 in. #1 Wire) 28 in. Clip-End Garage Door Spring (0.324 in. #0 Wire) 42 in. Clip-End Garage Door Spring (0.283 in. #1 Wire) 36 in. Clip-End Garage Door Spring (0.324 in. #0 Wire)
Price
$92.58
$101.84
$138.88
$158.93
Ratings (5) (8) (8) (9)
View Product View Product View Product View Product

Specifications

Dimensions

Spring Length
36

Details

Garage Door Part/Accessory Type
Extension Spring
Material
Steel
Returnable
90-Day
Weight Capacity (lbs.)
350

Warranty / Certifications

Manufacturer Warranty
1-Year Extended Warrenty

Specifications

Dimensions

Spring Length
36

Details

Garage Door Part/Accessory Type
Extension Spring
Material
Steel
Returnable
90-Day
Weight Capacity (lbs.)
350

Warranty / Certifications

Manufacturer Warranty
1-Year Extended Warrenty

Questions & Answers

  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 61ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Customer Reviews

36 in. Clip-End Garage Door Spring (0.324 in. #0 Wire) is rated 4.7 out of 5 by 9.
Rated 4 out of 5 by from I tried this spring on a 7' door - first I went over a few details and also needed to make sure o... I tried this spring on a 7' door - first I went over a few details and also needed to make sure of a couple of items. Make sure to measure the existing spring and match the spring if possible look up the model of the current existing door requirements Determine what spring you need Set up your door to be fully lifted and then secure in place to take the load off of the spring Remove the spring and hook up the new spring - I found a slightly stronger spring with a garage door opener reduced the stress on the motor - checking the draw was reduced Make sure the new spring is secured so that it wont accidently disconnect - this can be catastrophic Make sure you have someone to help you Determine if you need a single or 2 springs (1 or 2 car doors)
Date published: 2019-02-02
Rated 4 out of 5 by from This 36 inch clip end spring is for heavier garage doors and is definitely a heavy duty spring. T... This 36 inch clip end spring is for heavier garage doors and is definitely a heavy duty spring. The springs are also fairly heavy in weight as well which I wasn't expecting. The spring came without any installation instructions which I found very strange and is the only real reason I gave 4 stars out of the five. I was able to pull up instructions on this website though so not that big of a deal. My husband was able to get this and another spring installed without very much trouble and it is working great. You will need a c hook if you are installing just the one spring and a w hood for two like we did. We went ahead as recommended and replaced both springs at the same time to ensure they worked best.
Date published: 2019-02-05
Rated 5 out of 5 by from This spring was the perfect item for the job. I ordered several different springs for a trailer that I was retrofitting as a gear trailer and mobile camp kitchen for a Boy Scout troop. I needed springs to operate a full-size rear door, as well as awnings, storage, stove, and sink compartments built into the side of the trailer. These worked perfectly, and we now have the coolest campsite of them all! Roll in, unhook the trailer, offload the gear. Boys set up camp, while the adults open up the kitchen for the weekend.
Date published: 2019-02-13
Rated 5 out of 5 by from Ok, what more can I say than it fit well, worked well, much better than the old ones, very quite,... Ok, what more can I say than it fit well, worked well, much better than the old ones, very quite, just felt like good steel. Now until they are used for a long period of time, won't know if the ends and spring strength will hold up. I don't see any reason not to say there better than the original. Just like if you have ever done drum brakes on your car, the return spring that still work, but not as well and as smooth. you should replace them every brake job , well you should with garage doors too.
Date published: 2019-01-26
Rated 5 out of 5 by from The look, feel and quality of this spring is top of the line. I used as a replacement for some wo... The look, feel and quality of this spring is top of the line. I used as a replacement for some worn out and noisy springs. These are 36 inch springs and are much heavier duty than the ones I replaced. They are also much quieter and stronger. Please use some caution while undoing the originals and installing these while they are under tension. With a little care and caution, installation should be a breeze. While help isn't mandatory, it's always a good idea.
Date published: 2019-01-31
Rated 5 out of 5 by from Just what was needed for the job Length over coils is 36" and Maximum allowable stretch is 24.5"... Just what was needed for the job Length over coils is 36" and Maximum allowable stretch is 24.5" and 350 pound capacity Propped the garage door open to the maximum to make the most slack possible... Held the garage door open with a ladder with some wooden blocks on top to adjust and fine tune the lift height. Threw some of my body weight at the bottom of the spring and made the connection and now the garage door is back in business again
Date published: 2019-02-11
Rated 5 out of 5 by from This is a very heavy duty replacement spring for a garage door with a maximum stretch length of 2... This is a very heavy duty replacement spring for a garage door with a maximum stretch length of 24.5 inches and initial tension of about 243 lbs to 197 lbs. It is listed as 36 inches long and about 39-1/4 long if you include the clip-ends . It weighs about 21.40 lbs made with #0 0.324inch wire which gives it the strength it needs to last many years. It was made with high quality wire.
Date published: 2019-01-29
Rated 4 out of 5 by from No trouble installation. Proper tools made install simple and proper tension. Seems strong enough... No trouble installation. Proper tools made install simple and proper tension. Seems strong enough and well manufactured to last. We also needed to replace wire cables as they were worn at the bends and frayed around pulleys. They were installed on old wooden eight by seven foot doors with windows across the top and stiffeners mid line and lower panel. Balanced well.
Date published: 2019-03-10
