- Plug-end extension spring with safety containment rod
- For use with single-panel garage doors, toy hauler doors, etc.
- 2 x P736 lifts 90-150 lb. door; 4 x P736 lifts 150-300 lb. door
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

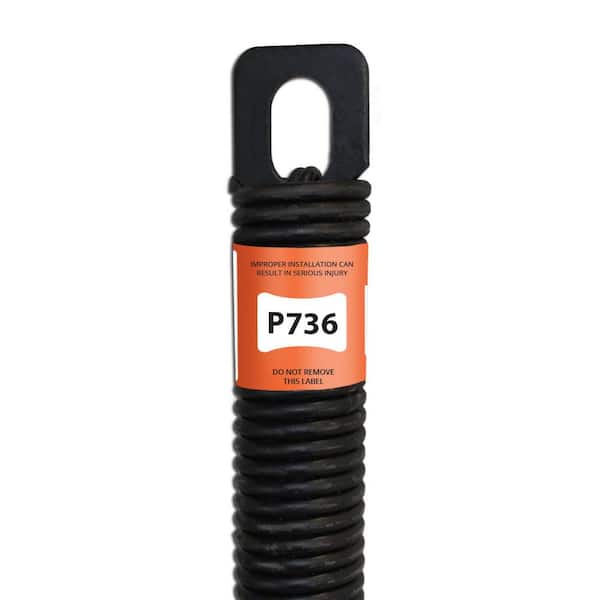

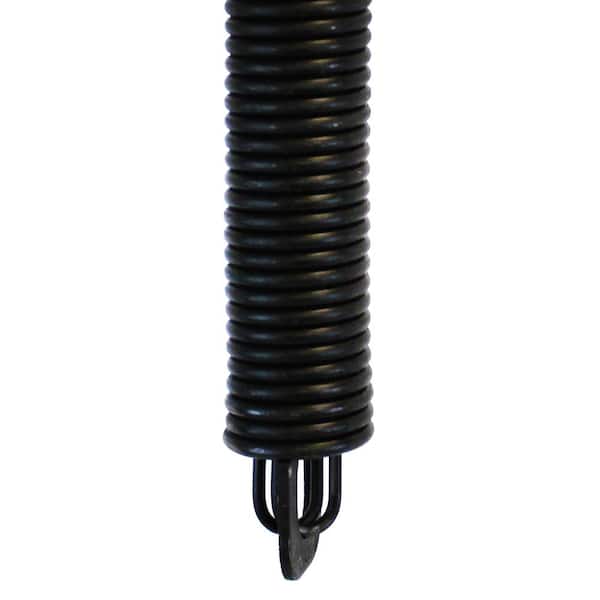

The P736 36 in. Plug-End Extension Spring is a Holmes spring replacement for 1-piece garage doors as well as for toy haulers using lift springs. We recommend replacing all springs at the same time for balanced door lift and even wear. A c-hook is required for a single spring installation while a w-hook is required for a double spring installation available separately.
Highlights
- 2-springs (1 each side) will lift a 90 lbs. to 150 lbs. door
- 4-springs (2 on each side) will lift a 150 lbs. to 300 lbs. door
- Safety containment rod to prevent spring from coming loose
- Minimum 1 in. low headroom required
- Length over coils is 36 in.
- Outside diameter is 1-5/16 in.
- Wire diameter gauge is (0.177) # 7
- Initial tension is 110 lbs. to 120 lbs.
- Maximum allowable stretch is 24 in.
- Return Policy
Product Information
Specifications
Spring Length (in.): 36
Dimensions
Spring Length (in.) | 36 |
|---|
Details
Garage Door Part/Accessory Type | Extension Spring |
|---|---|
Material | Steel |
Pack Size | 1 Pack |
Returnable | 90-Day |
Weight Capacity (lbs.) | 250 |
Warranty / Certifications
Manufacturer Warranty | 1-Year Extended Warrenty |
|---|
Questions & Answers
What’s the maximum stretch length?
How many springs are in a pack?
1
Are the metal rods that run inside the spring suppose to be attached in some way to protect the spring from striking someone in the event it breaks?
We call the metal rods "safety containment rods" and there is no interaction needed with these. It is a closed steel loop that runs the length of the spring and extends with the springs as they extend. If the spring ever breaks, the spring coils will wrap themselves around the safety containment rods.
E900 HARDWARE 20 in. Plug-End Garage Door Spring (0.244 in. #3 Wire) What is the difference between a P320 and a 320C spring?

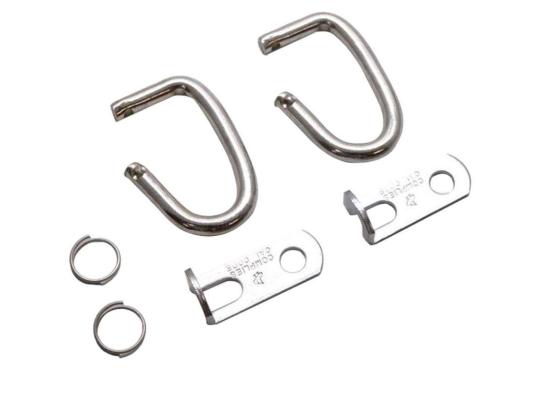

The "P" designation is for a plug-end garage door spring. The "C" designation is for a clip-end garage door spring. Generally, clip-end springs have greater weight capacity. Both require a "C-Hook" at each end for single spring installation. If you are installing springs in pairs on each side of the door, you will need "w-Hooks"(See pictures)
A P320 spring has a plug-end and does not come with a C-hook.
I see no difference in the springs for what we use them for, we have both types on the farm, if there is a difference it is not visual, be careful handling, and installing this type of heavy spring, ware safety glasses, and gloves, they will hurt you.
