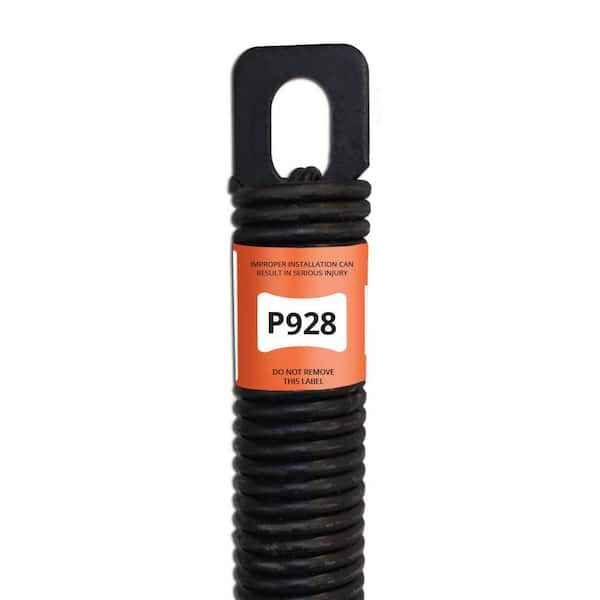

P928 28 in. Plug-End Extension Spring (0.148 in. No. 9 Wire)

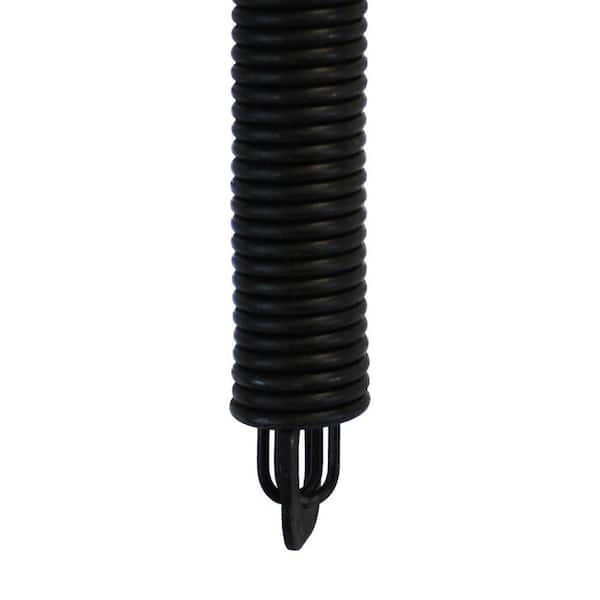

- Plug-end extension spring with safety containment rod
- For use with single-panel garage doors, toy hauler doors, etc.
- 2x P928 lifts light doors weighing up to 75 lb.
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
P928 28 in. Plug-End Extension Spring is a Holmes spring replacement for lighter 1-piece garage doors as well as for toy haulers using lift springs. We recommend replacing all springs at the same time for balanced door lift and even wear. A c-hook is required for a single spring installation while a w-hook is required for a double spring installation - available separately.
Highlights
- 2 x P928 springs support up to a 75 lbs. garage door
- Length over coils: 28 in.
- Outside diameter: 1-1/4 in.
- Wire gauge: 0.148 in. no. 9
- Initial tension: 45 lbs. - 55 lbs.
- Maximum allowable stretch: 18.5 in.
- Manufacturer warranty: 1-year
- Return Policy
Product Information
Specifications
Spring Length (in.): 28
Dimensions
Spring Length (in.) | 28 |
|---|
Details
Garage Door Part/Accessory Type | Extension Spring |
|---|---|
Material | Steel |
Pack Size | 1 Pack |
Returnable | 90-Day |
Weight Capacity (lbs.) | 75 |
Warranty / Certifications
Manufacturer Warranty | E900 HARDWARE warrants products for a period of one year after purchase, this product against defects in material or workmanship and agrees to repair or at our option replace a part or parts taking in service without charge for either parts or labor. |
|---|
Questions & Answers
I have a two spring garage door. It uses P928C. Will a P928 work for a replacement for one spring?
Yes. "C" only means it comes with the hook; you can buy the hooks separately or reuse the one from the one you took off if it still works.
I replaced my garage door spring. It is the same size as the other spring and installed exactly the same way. However, my garage door won't stay open and closes on its own. Is it possible I need a stronger spring? It's a P928 spring.
It's possible that you need a stronger spring, or there might be other issues at play. While the P928 spring is designed for lighter garage doors (up to 75 lbs. for two springs), if your door is heavier than that, you'll definitely need a stronger spring. Even if your door is within the weight limit, a worn-out or damaged second spring could be contributing to the problem. I'd recommend checking the other spring for any signs of wear or damage. It's also important to make sure the springs are properly balanced. If one spring is doing more work than the other, it can cause the door to close unevenly. Finally, there could be issues with your garage door opener or other hardware. If you're unsure, it's always best to consult a professional garage door technician.
What is the SKU number? Why is that not listed here??????????????
The SKU number P920. This is the Model # shown at the top left of the page.
