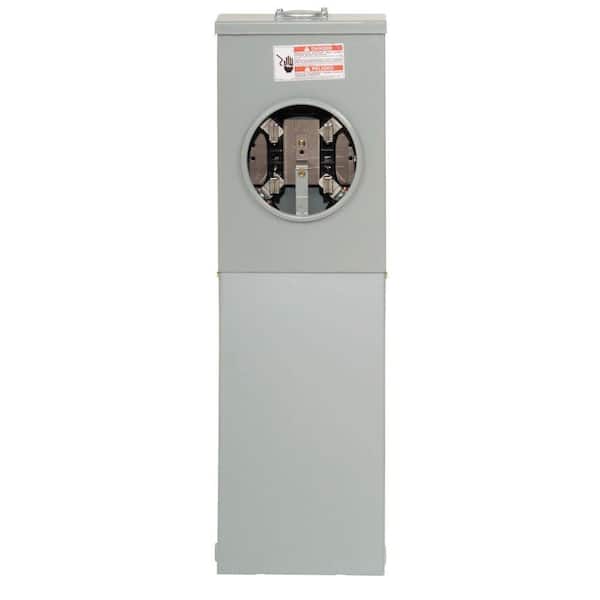

Power Outlet Panel Mount Metered Pedestal
  • Unbranded
  • Model CHM9N9NKGS
  • Internet #313025027
  • Store SO SKU #1005396909
Power Outlet Panel Mount Metered Pedestal
(0)
Discontinued Model:

Power Outlet Panel - Metered (Ring Style)

  • POPs provide a safe and reliable means to access electricity
  • Designed for outdoor service to meet power outlet requirements
  • The receptacles shall be NEMA commercial/industrial grade
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

A power pedestal is a device designed for outdoor service to meet temporary power requirements at construction sites, marinas, recreational vehicle (RV parks and mobile home parks). Power pedestals provide a safe and reliable means for users to access electricity at such locations.

Highlights

  • Use to provide temporary outdoor electrical service at construction sites, marinas, mobile home parks and/or RV parks
  • Rugged, heavy-duty, 100% galvanized-steel enclosure is coated for durability
  • Doors can be padlocked to help prevent power theft and vandalism

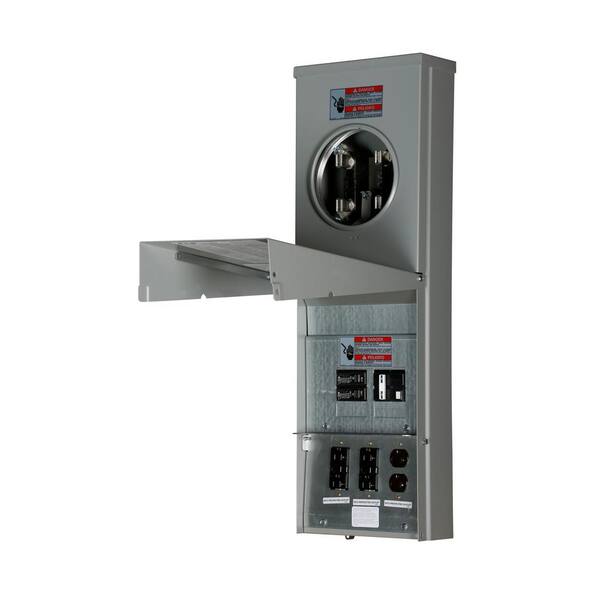

  • Door swings up and open for user convenience and ease of access to breakers and receptacles
  • Metered Ring
  • Amp series is 20/20/20
  • Left position is 5-20R2GFI
  • Center position is 5-20R2GFI
  • Right position is 6-20R2
  • Breaker Description position is 1st - non-gfi, 2nd non-gfi, 3rd gfi
  • Metered, ring type
  • Surface mount
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 202275989

Model # CHM7N7N5GS

Additional Resources

Shop All Eaton

Specifications

Dimensions

Load center depth (in.)4.5Load center height (in.)30.0
Load center width (in.)9.5

Details

Electrical Product TypeLoad CenterLoad Center TypeTemporary Power
Maximum Amperage (A)20Mounting typePlug In
Number of Circuits3Number of Gangs1
Number of Outlets2Number of Spaces2
Phase Type1 PhasePower Distribution FeaturesNo Additional Features
Product Weight (lb.)26 lbReturnable90-Day
Voltage (V)120/240

Warranty / Certifications

Certifications and ListingsANSI Certified, UL ListedManufacturer Warranty1 year

Questions & Answers

3Questions
caret
Q:Is this rated as a service equipment?
by|Aug 6, 2019
1 Answer
Answer This Question

A:  Yes, it is rated or designed as a service equipment.

by|Aug 6, 2019
    caret
    Q:Where does the line side power enter the panel? It doesn't say, but I see a hub kit on it, so I suppose its top fed? Are there any knockouts on the sides? My power company will not hook up to a top fed panel.
    by|Dec 22, 2017
    1 Answer
    Answer This Question

    A:  Hello Tony, This panel is designed for top feed. The line side power enters through the top and lands on the line-side meter socket lugs that accept cable #14- 2/0 AWG. Rainproof hubs are available for 0.75'', 1.00'', 1.25'', and 1.50'' conduit. For example, the rainproof hub for 0.75'' conduit is catalog number DS075H1. For further assistance with product selection or technical product questions, please contact our technical support team at 877-932-9322 option 3. Regards, Eaton

    by|May 6, 2023
      caret
      Q:IS THIS A NEMA type 3R (rainproof) UNIT
      by|Jul 22, 2016
      1 Answer
      Answer This Question

      A:  Hello Fender, Yes, this is designed for outdoor use. Regards, Eaton

      by|May 5, 2023
        Showing 1-3 of 3
