36 in. x 84 in. Galvanized Steel Pocket Door Frame Kit (2 in. x 4 in. Wall)

Apply Now
Pay $328.00 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
0 in stock
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

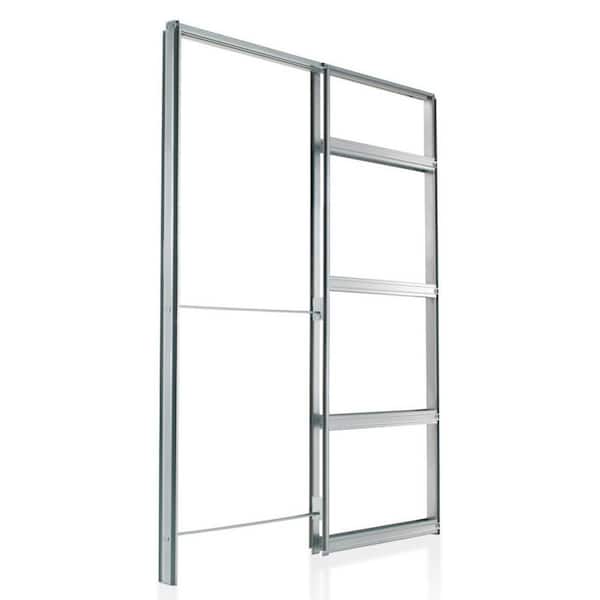

Simple, functional, strong and reliable: Eclisse Pocket Door Systems Frame Kit for a 2 in. x 4 in. wall is the perfect space saving solution for any room in the home if you wish to maximize usable floor space. The kit assembles into a galvanized steel frame with full pocket, patented removable track, everything you need to hang the door and metal door post for installation as a complete unit. Eclisse Pocket Door Systems has found a way to re-invent the pocket door and checked off every box when it comes to eliminating all of the problems associated with pocket doors.


  • Frame kit includes: galvanized steel frame (assembly required), patented removable track, floor guide, maintenance free track and runners (holds a door up to 220 lbs.), adjustable door stops, door mounting kit, drywall screws and 12 year warranty
  • Quick and easy assembly, the Eclisse frame kit features a patented removable track so you never have to break drywall again to remove the track making installation and removal a breeze
  • Use any door you want including 1 in. aluminum, 1-3/8 in. or 1-3/4 in. (Maximum door thickness to be used on this system is 1-3/4 in.)
  • Smooth quiet operation, rattle-free bottom guide and maintenance free runners that can support doors up to 220 lbs.
  • Frame is completely made from steel from end to end so no more wood components, the frame has horizontal and vertical reinforced bars along with a door post creating strength and rigidity and preventing the wall flexing and plaster cracking

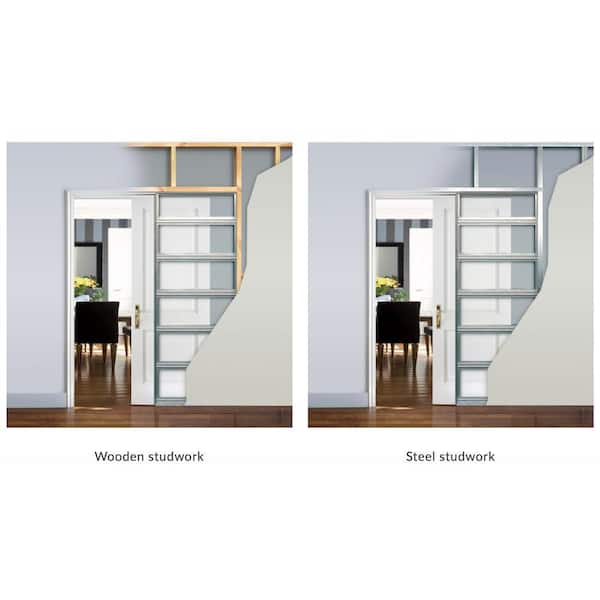

  • Use with metal or wood stud walls
  • Includes 2 adjustable door stops giving you the flexibility to decide how far you want your door to protrude out or if you want it to be flush with the wall
  • Made in Italy and includes a 12 year warranty
  • Add-on accessories not included and sold separately include: self-closing system, bias (soft closer), bias (soft open/soft closer) and poplar jamb kit, poplar jamb kit is recommended since system requires jambs
  • Return Policy

Product Information

Internet # 313793625

Model # EKC3684

Store SKU # 1005517071


Dimensions: H 87 in, W 74 in, D 3.5 in


Assembled Depth (in.)

3.5 in

Assembled Height (in.)

87 in

Assembled Width (in.)

74 in

Door Height (in.)

84 in

Door Width (in.)

36 in


Color Family



Galvanized Steel

Door Frame Type

Pocket Door Frame


Galvanized Steel

Hardware Finish Family






Product Weight (lb.)

38 lb



Warranty / Certifications

Manufacturer Warranty

12 Year

Questions & Answers

Q:Can this frame be modified to a double pocket door? (2 doors that meet in the middle)
by|Jan 12, 2024
0 Answer
Answer This Question
Q:It looks like the bottom plastic door guide is tabbed into the vertical frame. Can this part be replaced easily once the install is complete a few years down the line?
by|Oct 26, 2021
1 Answer
Answer This Question

A:  Hello SteveH -- Thank you for your recent inquiry with The Home Depot. Yes the vendor will replace defective parts for item 313793594 - Eclisse 28 in. x 84 in. Galvanized Steel Pocket Door Frame Kit (2 in. x 4 in. Wall). Please read the vendor warranty on the Home Depot website. We appreciate your business and look forward to serving you in the future.

by|Oct 26, 2021
    Q:Does this kit include a door or is the door sold separately ?
    by|Aug 2, 2021
    0 Answer
    Answer This Question
    Q:What rough framing dimensions do i need for this door
    by|Jan 13, 2021
    1 Answer
    Answer This Question

    A:  The net frame dimensions of the 28" x 84" (2x4 wall) frame kit is 58" x 87". The net frame dimensions are from the finished floor level.

    by|Feb 9, 2021
      Showing 1-4 of 5
