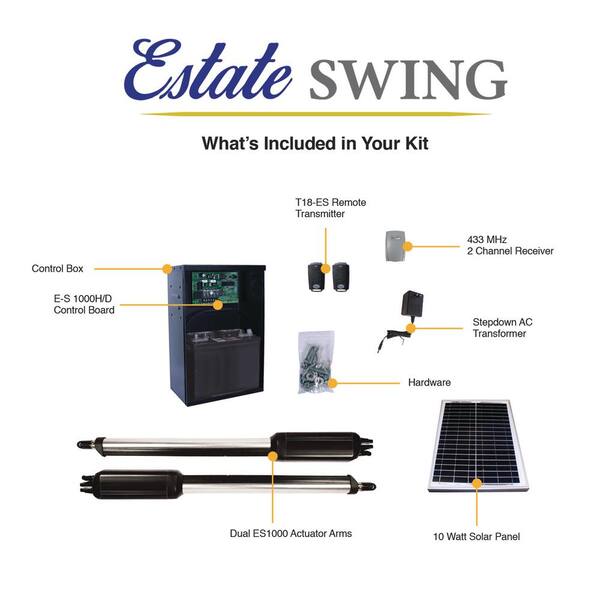

Dual Swing Automatic Gate Opener Kit with 10-Watt Solar Panel

$928.98
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

With the Estate Swing Solar series, your residential gate can be automated by tapping into the power of the sun. Estate Swing gate openers are made for the DIY gate opener customer. With easy bolt-on brackets and simple setback templates, Estate Swing has made it easy for any homeowner to install their gate opener and automate their gate. All Estate Swings are built to the highest standards worldwide; meeting and exceeding UL325 standards for anti-crushing safety. Each unit is put through rigorous quality control testing on each component. You will not be disappointed in the E-S 1000D-10W solar option; it is very quiet and quickly reaches its extended length, coming standard with one of the most solar efficient gate boards on the market today" (Battery Not Included). There are several different variables to consider when determining how many times a solar panel will allow your battery to open & close the gate (geographic location, battery size, gate length & weight, and number of add-on components plugged in). The E-S 1000D-10W unit is capable of both pushing and pulling to open your gate.

Highlights

  • Lowest standby draw of any DIY solar gate opener on the market today (under 10mA).
  • Compatible with all types of gates including: wood, steel, aluminum, vinyl, chain link, and others.
  • Gate weight and length: Up to 12' in length or 600 lbs, per leaf.
  • Large Opening Arch Capabilities; The E-S 1000D has the ability to open gates up to 110 degrees, well beyond most other openers.
  • Warranty:1-year electrical/ 5-year component limited warranty.
  • Comes with a generous sized control box you can house a larger group size 24 battery than most gate operating systems (Battery Not Included).
  • 10 watt solar panel included; There are several different variables to consider when determining how many times a solar panel will allow your battery to open & close the gate (geographic location, battery size, gate length & weight, and number of add-on components plugged in).
  • The UL-325 standard that addresses the automatic operation of garage doors, Drapery, Gate, Louver and Window Operators and Systems also contains provisions related to the automatic operation of access control gates; The primary intent of the standards is to prevent entrapment of persons in automated gate systems, as well as preventing injuries from pinch points; UL 325 is not concerned about the gate contacting vehicles, only the entrapment of people.
  • Obstruction sensing alarm.
  • All weather compatible this arm can handle the cold, heat and everything in between.
  • Quick Manual Release: Every unit comes with a quick release pin for the gate side bracket; If there is a rare instance where the battery has gone dead and the gate opener will not actuate you can simply remove the pin and swing the arm and gate to the open position.
  • Return Policy

Product Information

Internet # 307276030

Model # E-S 1000D/10W

Store SKU # 1003801563

Additional Resources

Shop All Estate Swing

Specifications

Dimensions: H 8 in, W 12 in, D 35 in

Dimensions

Maximum gate size (ft.)12 ftProduct Depth (in.)35 in
Product Height (in.)8 inProduct Width (in.)12 in

Details

Commercial/Residential UseResidentialFencing Product TypeGate Opener Kit
Gate opening styleSwingingIncludesHardware, Remote Control
Power RequirementsSolarProduct Weight (lb.)63.9 lb
Returnable90-DayWeight Capacity (lb.)600 lb
Wired or WirelessWired

Warranty / Certifications

Manufacturer Warranty1-year electrical/ 5-year mechanical component limited warranty

Questions & Answers

9Questions
caret
Q:will this opener open out
by|Sep 7, 2023
1 Answer
Answer This Question

A:  Thank you for reaching out to us. The gate opener is designed to open in both ways. The direction in which the gate opens depends on the installation preferences.

by|Oct 13, 2023
    caret
    Q:Does this unit come with brackets to attach arms to post and actual gates ?
    by|Oct 4, 2021
    1 Answer
    Answer This Question

    A:  Hi Jim, thank you for reaching out to us with your question! The answer is yes, our gate openers come with brackets which actually will allow "pull-to-open" or "push-to-open", whereas most other manufacturers brackets only allow "pull-to-open". Please let us know if we can help in any other way. Also please keep in mind that we are available with tech support 24/7 after purchase!

    by|Oct 26, 2021
      1 found this answer helpful
      caret
      Q:will this opener mount to chain link fence gates
      by|Aug 12, 2021
      1 Answer
      Answer This Question

      A:  Hi Wayne, thank you for considering a purchase of our all metal solar powered Dual swing gate opener. Yes indeed, this opener will be able to effectively mount and effortlessly open a chain link fence gate. Unlike our competitors, we understand that building a DIY kit can sometimes be daunting. Should you require any assistance with your build we have a dedicated customer support team operating from 9am-9pm, seven (7) days a week. Please do feel free to call one of our reps to place an order or continue your online experience! Thank you John D

      by|Aug 13, 2021
        caret
        Q:how dose it control both gates will i have to cut the asphalt to run a cable to control gate opposite gate from control box ?
        by|May 6, 2020
        1 Answer
        Answer This Question

        A:  For the dual gate opener to work properly you will need to cut the concrete to be able to run the wire to the slave side so it gets power from the master side which enables them to work together.

        by|May 11, 2020
