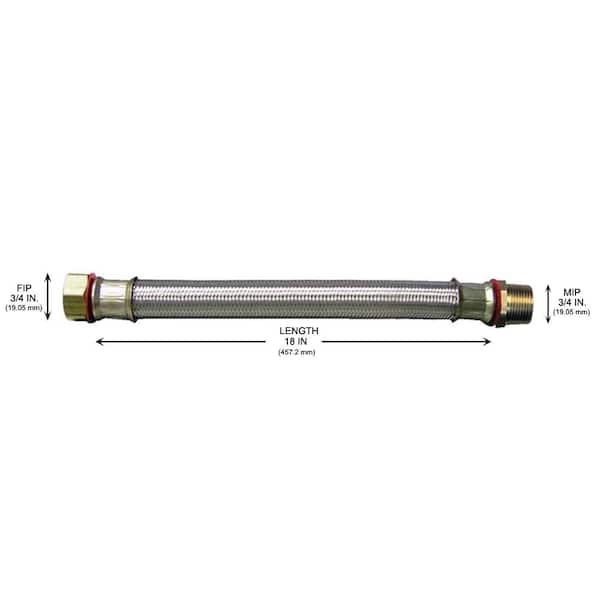

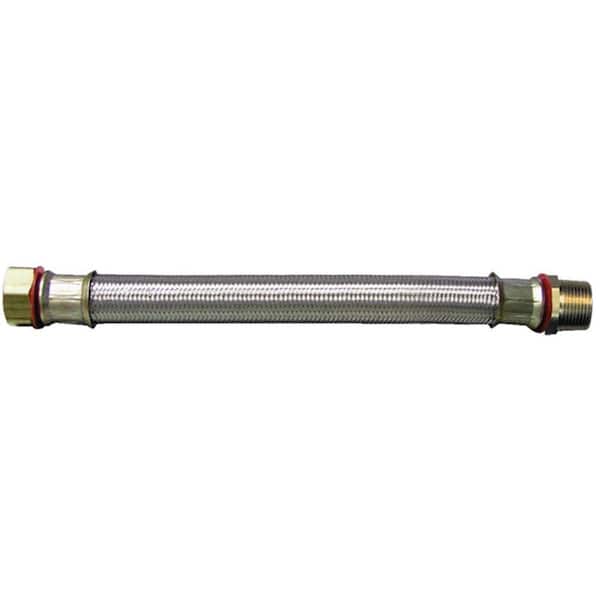

3/4 in. FIP x 3/4 in. MIP x 18 in. Stainless Steel Water Heater Supply Line

$13.94
  • For application as a supply line to your water heater
  • Features flexible braided stainless steel for durability
  • Easy to use for both homeowners and contractors alike
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

This 3/4 in. x 3/4 in. x 18 in. stainless steel braided supply line starts with an extruded core of PVC tubing. The core is then over-braided with polyester yarn and another layer of PVC material. The final layer consists of stainless steel braid to form a strong, yet flexible supply line.

Highlights

  • Stainless steel braiding over braided PVC for strength
  • Manufactured with brass inserts
  • Durable construction to last for years
  • Easy to use for the contractor or homeowner
  • 3/4 in. x 3/4 in.
  • 18 in length
  • Silver in color
  • FIP X MIP
  • Washer included
  • Braided outside
  • Return Policy

Product Information

Internet # 206527452

Model # EBBC-07M-18a

Store SKU # 1000047568

Specifications

Dimensions: H 1.25 in, W 1.25 in, D 18.5 in

Dimensions

Product Depth (in.)

18.5 in

Product Height (in.)

1.25 in

Product Length (in.)

18.5 in

Product Width (in.)

1.25 in

Details

Application

Water Supply

Compatible Brand/Model

All

Finish Family

Silver Metallic

For Use With

Electric Tank, Electric Tankless, Gas Tank, Gas Tankless

Material

Stainless Steel

Pack Size

1

Product Weight (lb.)

0.91 lb

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

1 year limited warranty

Questions & Answers

22Questions
caret
Q:Can these be directly connected to the top of a hot water heater without a nipple without dielectric considerations.
by|Apr 5, 2024
1 Answer
Answer This Question

A:  Hi, TomP - Yes. They actually have dielectric sleeves built in. Sorry that bullet point seems to fall off the hd.com website. We will fix that!

by|Apr 8, 2024
    caret
    Q:Can this be used for adding an Expansion Tank.
    by|Jan 9, 2024
    1 Answer
    Answer This Question

    A:  Hi, Jlau - Mechanically it would most likely work so long as your installation is within the pressure and temperature parameters of the supply line. However, most water heater connectors are to be used from the main supply line end to the tank itself. In that this could be a code issue, we suggest you check your local codes to see if it can be done.

    by|Mar 12, 2024
      caret
      Q:How many PSI is this hose rated for?
      by|Apr 17, 2023
      1 Answer
      Answer This Question

      A:  Hi, Rogers - It is for use with continuous pressure less than125 psi and maximum intermittent impulse pressure is 180 psi.

      by|Apr 17, 2023
        caret
        Q:do I use thread tape on the MIP connector?
        by|Sep 15, 2022
        1 Answer
        Answer This Question

        A:  Hi Timothy. Yes use thread sealant on the water connector's male pipe threads.

        by|Sep 15, 2022
          Showing 1-4 of 22

          Customer Reviews

          4.3 out of 5

          • 4.3 out of 253 reviews
          • 76% recommend this product
          Filter by:
          Showing 1-10 of 253 reviews
          Easy to install and will simplify changing water heater if required.
          Easy to install and will simplify changing water heater if required.
          by
          • Verified Purchase
          • Recommended
          The one we replaced, Everbilt, blew a hole in the braided line. Pressured water flooded the garag...
          The one we replaced, Everbilt, blew a hole in the braided line. Pressured water flooded the garage. Have never seen a braided line blow. We replaced with, Everbilt, braided line and one of the braided lines just kept leaking at the connection. Note: we replaced 2, but only 1 leaked. We ended up replacing both of the brand new, replaced Everbilt lines, with a new brand, after so much trouble with Everbilt.
          by
          Response from VPC, Home-Flex ExpertDec 16, 2019
          I am sorry to hear about the trouble that you are having RAH. These water connectors are rated for a maximum operating pressure of 125 psi and a max operating temperature of 160°F. Please check your system pressure and temperature. Excessive pressure and temperature will decrease the service life of water connectors and could cause the type of failure that you are describing. If possible, give me a call so I can learn more about your installation? (661) 257-3923. I am here from 8-5 Los Angeles Time M-F. Ask for Jon. ValenciaPipe
          • Verified Purchase
          Purchased two of these lines when installing a brand new hot water heater. Both flex lines would...
          Purchased two of these lines when installing a brand new hot water heater. Both flex lines would form a water tight seal to the brass threads sweated to the copper lines, neither would form a proper water tight seal to the dialectic nipples on the hot water tank. Replaced both with tradictional copper supply lines, no more leaks. Home Depot should pull this product, it's absolute garbage. Also, read the instructions, you're supposed to check for leaks every 6 months. Yeah, like that's ever going to happen in the real world.
          by
            Fastest way to make a aecure tight connection. Makes...
            Fastest way to make a aecure tight connection. Makes the plumbing the easiest part of the install
            by
            • Verified Purchase
            Had to replace one that was three years old because it sprung a bad leak. So glad we weren't on v...
            Had to replace one that was three years old because it sprung a bad leak. So glad we weren't on vacation. We go for 10 to 12 weeks.
            by
            Response from VPC, Home-Flex ExpertFeb 13, 2019
            I am sorry that you had that problem. You may want to consider turning your water off when you are away from your house for that long. ValenciaPipe
            • Verified Purchase
            • Recommended
            Helped simplify a complex water heater replacement -- we still had several copper sweat joints to...
            Helped simplify a complex water heater replacement -- we still had several copper sweat joints to connect for our hydroponic floor heating system. The new system did seem to cut the flow of hot water to the house -- no big deal. But with the two new Supply Lines and reconnection, the floor heating system is much quieter (no sound ;-).
            by
            • DIY
            • Verified Purchase
            • Recommended
            by
            • Verified Purchase
            I had no problem with this product as far as connecting to the water heater or the supply lines even after three wraps of teflon and pipe dope Both ends had a good tight fit Only a few days into this but not leaks or discoloration. Made up great with the existing copper line
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            Showing 1-10 of 253 reviews
