- Mounting plate for face frame and full overlay frameless cabinets
- Self closing mechinism helps door close on its own
- Great for kitchen/bathroom, built-ins and office cabinets
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
With an opening angle of 165°, this hinge can be used for furniture doors in front of internal drawers, Lazy Susan corner cabinets and all other furniture designs in which doors have to be opened widely. With an additional mounting plate for face frame applications, this hinge is dual purpose for frameless and face frame cabinetry. Package Includes 2 hinges and all mounting hardware needed.
Highlights
- Concealed hinge for snap-on attachment
- For door thicknesses of 15-23 mm / 0.59 in. to 0.9 in.
- Cup diameter 35 mm / 1.38 in.
- Cup depth 11.6 mm / 0.45 in.
- Integrated depth adjustment 4 mm / 0.157 in.
- Height adjustment at mounting plate
- Including screws and mounting plated
- Not sure what type of hinge you need? Check out our helpful buying guide here.
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 1.9 in, W 2.6 in, D 5.4 in
Dimensions
Product Depth (in.) | 5.4 in |
|---|---|
Product Height (in.) | 1.9 in |
Product Width (in.) | 2.6 in |
Details
Builders Hardware Product Type | Cabinet hinge |
|---|---|
Cabinet Door Type | Overlay |
Cabinet Frame Type | Face Frame, Frameless |
Features | No Additional Features |
Finish | Satin Nickel |
Hardware Color Family | Nickel |
Hardware Finish Family | Satin |
Hinge Opening (Degrees) | 165 |
Hinge Type | Standard |
Hinge Visibility | Hidden |
Overlay Size | 1-3/8 inch Overlay |
Package Quantity | 2 |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Limited Lifetime Warranty |
|---|
Questions & Answers
Are they Soft Close?
Hello, Thank you for your recent inquiry with The Home Depot. The Wide Angle Full Overlay Hinge is not soft close. However, we do offer a range for Face Frame and Frameless hinges that are soft close. We truly appreciate your business and look forward to continuing to serve you.
What is the weight limit on these bad boys? I have solid oak cabinets doors some with glass some without. These will work perfectly if they can support around 25lbs.
Hello, Thank you for your recent inquiry with The Home Depot. Two of the Wide Angle Full Overlay Hinges will support up to 13 lbs. We truly appreciate your business and look forward to continuing to serve you.
These hinges are labeled as 1-3/8” overlay on the packaging. The actual overlay on a face frame cabinet is approximately 3/4” when the lateral adjustment is at maximum. Is there some kind of trick to get these to 1-3/8” overlay?
Hello, Thank you for your recent inquiry with The Home Depot. You should be able to achieve the intended 1-3/8" overlay on the face frame cabinet by adjusting the hinges. A lot can take into account (mounting position, hinge adjustment, door thickness etc.). There is an installation guide at The Home Depot website on the right hand side in the product information. Hope this helps, we appreciate your business and look forward to serving you in the future.
How do you open the hinge if you have closed it before mounting? It snaps closed and then won't reopen.
There is a pushbutton latch on the end of the hinge that attaches to the cabinet wall.
What is the overlay on these hinges when installed on a face frame cabinet?
These hinges are designed for a 1-3/8 inch overlay on face frame cabinets. They include a mounting plate specifically for face frame applications.
Is this a good substitute for a DTC 165A48 cabinet hinge?
These do not seem to be 1-3/8 overlay. I have tried using the overlay adjustment screw, but my door is still not able to close properly. Is there something I'm missing?
How can I get this hinge to work on face frame cabinets? I have only seen pictures of it mounted on framelss.
Please see instructions for both, frameless and face frame cabinets under additional resources of the product page. See link to installation guide here: https://images.thdstatic.com/catalog/pdfImages/1b/1bbb2ca9-728b-48b6-b7a1-84162cc0f193.pdf Thank you
Viewing 1-8 of 27
Customer Reviews
4.5 out of 5
Loading Recommendations
Related Products

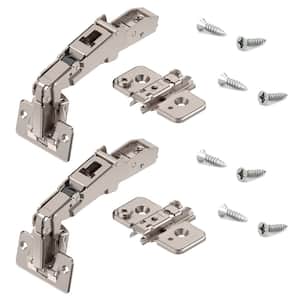

(2-Pack) Clip Top Series 35 mm Spring Closing Full Overlay for Frameless Cabinet Bi-Folding Hinge
