Zinc Plated Box Rail Hanger Kit

$39.93
Apply Now
Pay $14.93 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Ideal for By-Passing Rail Applications
  • Zinc-plated finish with strong and durable steel material
  • Easy installation with hardware included
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

This Everbilt Box Rail Hanger Kit consists of 2 sets, each rated 225 lbs. Safe working load. Place hangers so that door weight is distributed evenly, by placing them at least 3 in. from the door edge. If the door is over 16 ft. use 3-hangers.

Highlights

  • Zinc-plated
  • Derlin bearings
  • All steel material
  • Safe working load: 225 lbs.
  • Fasteners included
  • Installation instructions included
  • Return Policy

Product Information

Internet # 300672550

Model # 80064

Store SKU # 1000003045

Additional Resources

Shop All Everbilt
From the Manufacturer

Specifications

Dimensions: H 7 in, W 4.75 in, D 2 in

Dimensions

Product Depth (in.)

2 in

Product Height (in.)

7 in

Product Length (in.)

7 in

Product Width (in.)

4.75 in

Details

Builders Hardware Product Type

Wall Mount Door Hardware

Fasteners included

Yes

Finish

Zinc Plated

Finish Family

Silver Metallic

Hardware Finish Family

Silver

Material

Steel

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

No

Questions & Answers

10Questions
caret
Q:Does this work with Everbilt 8 ft. Galvanized Box Rail?(https://www.homedepot.com/p/Everbilt-8-ft-Galvanized-Box-Rail-80004/300672836#overlay)
by|Apr 25, 2023
1 Answer
Answer This Question

A:  Yes, this Everbilt Zinc Plated Box Rail Hanger Kit will work.

by|May 12, 2023
    caret
    Q:Will this work for 2" track?
    by|Sep 22, 2022
    1 Answer
    Answer This Question

    A:  Since we do not know the brand type of your track we can give you references for the wheel dimensions of the pulley for your reference. Wheel end to end is 1.57 inches and the inside diameter wheel to wheel is 0.98 inches for the Everbilt Zinc Plated Box Rail Hanger Kit.

    by|Oct 26, 2022
      caret
      Q:What's the diameter of the trolley wheels
      by|Feb 19, 2022
      1 Answer
      Answer This Question

      A:  The diameter of the trolley wheels on the Everbilt Zinc Plated Box Rail Hanger Kit is 2.125 inches.

      by|Apr 27, 2023
        1 found this answer helpful
        caret
        Q:What size are the carriage bolts that mounts to the trolley
        by|Nov 18, 2021
        1 Answer
        Answer This Question

        A:  The Everbilt Zinc Plated Box Rail Hanger Kit bolt that is fastened to the hanger / trolley is a 7/16" x 4-1/2" Connector Bolt.

        by|Nov 18, 2021
          Showing 1-4 of 10

          Customer Reviews

          4.4 out of 5

          • 4.4 out of 60 reviews
          • 89% recommend this product
          Filter by:
          Showing 1-10 of 60 reviews
          The EVERBILT ZINC PLATED BOX RAIL HANGER KIT is a full, all in one hardware kit for simple hangin...
          The EVERBILT ZINC PLATED BOX RAIL HANGER KIT is a full, all in one hardware kit for simple hanging, sliding doors. It’s zinc plated and will withstand out door extremes, a perfect application for garages , sheds and green houses. Everything is included in the kit excepting the door. So far I have no complaints with the kit and can fully recommend it .
          by
          • Recommended
          These box rail hangers create a super cool look for any barn door, or interior door mount set up....
          These box rail hangers create a super cool look for any barn door, or interior door mount set up. Heavy duty steel with Derlin bearings and zinc plated for durability. Comes with 2 full sets including screws.Pair of hangers can support 225 lbs. It is recommended if your door is over 16 feet to use 3 hangers. My order didn't come with instructions but we were able to download them online. These will look great once installed. Super excited!
          by
          • Recommended
          Tough! Simple design! Get a friend to help with installation... The design of the rail hanger ki...
          Tough! Simple design! Get a friend to help with installation... The design of the rail hanger kit is simple and only takes a few basic tools to install. You should have someone assist you to help steady the door (or doors) of your project. The sturdy plates quickly mount to your door and the level adjustment bolts are easy to adjust the drop of the door to ensure a good fit. We swapped out a couple of older hangers and replaced the trim on the door to give the doors a better curb appeal. Strong design!
          by
          • Recommended
          It's a decent quality for what it's priced at, it has plastic bushings for the rollers instead of...
          It's a decent quality for what it's priced at, it has plastic bushings for the rollers instead of oil impregnated bronze or roller bearings, but that's fine for the majority of installations this would be used for, the wheels aren't serviceable so you would have to replace them when the plastic bushing/bearings fail, the zinc plating seems adequate for the price of the product, I wouldn't recommend them to be in full contact with the elements
          by
          • Recommended
          Finally, my storage door works like it should. Every time I open or close the door now, I am tha...
          Finally, my storage door works like it should. Every time I open or close the door now, I am thankful for this hanger kit. After cleaning my Dad’s garage, I had some box rail but no hangers. I had a light door to hang and wanted to use the rail to save space rather than having a door swinging on hinges. I tried a couple of times to create my own hangers without success. These hangers work great. I wasn’t sure all box rails were the same dimensions. These hangers fit my rail. Since I wasn’t hanging a heavy barn door, I did some modifications to the connector bolts and used my homemade door straps with a little welding. The instructions are good. They tell you to slide a connector bolt through the center hole of the hanger and tighten a hex nut to the top of the bolt threading. After doing that I tried sliding the hanger in the railing. The nut would not allow the hanger to move. After looking closely, I noticed some flattened spots on the sides of the connector bolts at the top of the threads. That was the clue that later you need to move the hex nut down away from the top of the bolt threading as you secure the door strap with two hex nuts. You can use the flat spots to hold the bolts from turning while you secure the door strap to the connector bolt at the correct height. There was not room for the door straps on my door and doorway. I modified my earlier attempts at door straps. The door is dependable now and the end caps keep it from running off the rail. Now I don’t have to carefully hold my door every time I open and close it. The door just rolls and stops when it should. There was one issue I found at the end of the project. When the door is closed, it is too close to the end of the rail. The hanger hits the end cap before the door is completely closed. I decided to not put the end cap completely in the rail. Now the door and rail are ready for paint.
          by
          • Recommended
          1 found this review helpful
          Zinc Plated Box Rail Hanger Kit This wheel set is sturdy, simple to install, and adjustable both ...
          Zinc Plated Box Rail Hanger Kit This wheel set is sturdy, simple to install, and adjustable both vertically and laterally to balance different door thicknesses. It comes with all carriage bolts to accommodate 1-3/4" doors, perhaps even 2". The largest nut goes on the bottom of the threaded rod and is supposed to grab the indentions in the plate, so that it will stay stationary when the threaded rod is rotated by its flats to adjust vertically. The smaller top nut is just a lock-nut to stop rotation and to secure the rod in the correct location in the top (horizontal) adjustment slot. Appears to be weatherproof, all galvanized. Rolls smoothly and rally quietly. I'm using it outdoors on my storage. the top rail sold separately. It can be used indoor or outdoor.
          by
          • Recommended
          3 found this review helpful
          The zinc plated box rail hanger kids has everything you need to make sure you have your barn yard...
          The zinc plated box rail hanger kids has everything you need to make sure you have your barn yard door hung properly. The kit comes with all the necessary pieces and it’s really heavy duty. The week capacity is 225 pounds. I can’t wait to hang my barnyard door with this hanger kit. The kit comes with into bracket system I need to tear to buy some 4 to 5 inch long screws which make it ideal and adjustable to any height and weight of barnyard door.
          by
          • Recommended
          The EVERBILT ZINC PLATED BOX RAIL HANGER KIT is truly a top notch product. I was trying to find s...
          The EVERBILT ZINC PLATED BOX RAIL HANGER KIT is truly a top notch product. I was trying to find something to use to make a sliding (barn style) door for an out door shower that will last in the outdoor weather of New England. This kit seems like it will be the perfect solution. It is heavy duty and zinc plated, which will help in the inclement weather that we have here in Connecticut. I look forward to building this in the spring and have high hopes that this rail kit work work and last as intended.
          by
          • Recommended
          The Everbilt zinc plated box rail hanger kit is a very good barn door hanger kit. I used four set...

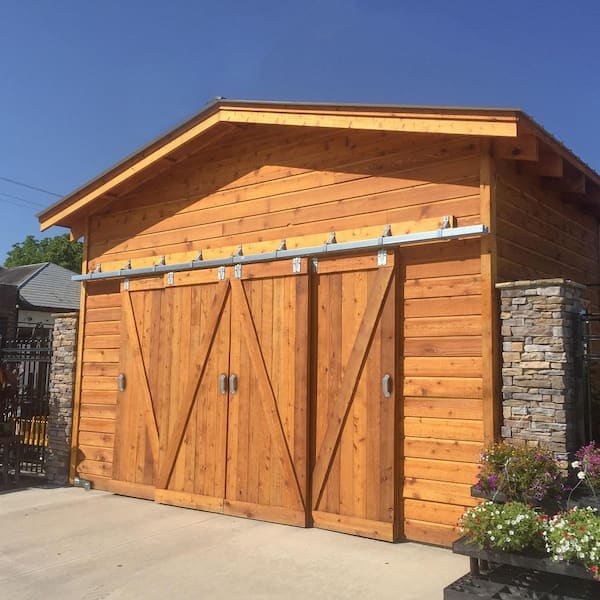

          The Everbilt zinc plated box rail hanger kit is a very good barn door hanger kit. I used four sets of these hangers to install the two sliding doors on my outdoor storage building. Each set of hangers are rated for 225lb. and are placed at least 3in. from the door edge. The hangers are zinc plated and hold up very well in the weather. I installed these hangers 3 years ago and have had no problems with them. Great quality product.
          by
          • Recommended
          This rail hanger kit has everything you need to fulfill your needs if you are installing a slidin...
          This rail hanger kit has everything you need to fulfill your needs if you are installing a sliding barn style door. It has all the hardware to hang a door on a track system. I used it on a sliding door that we built. I did not use the actually door hanger but simply used the included bolt to bolt it directly to the door frame. The rollers in the kit slide very easily and make it easy to slide the door. The door I have hanging on it is about 12 feet wide. We made it out of 1-1/4” square thin wall tubing and R panel sheets. It works great to slide the door back and forth. I would buy this set again.
          by
          • Recommended
          Showing 1-10 of 60 reviews
