Model #FR1210HA

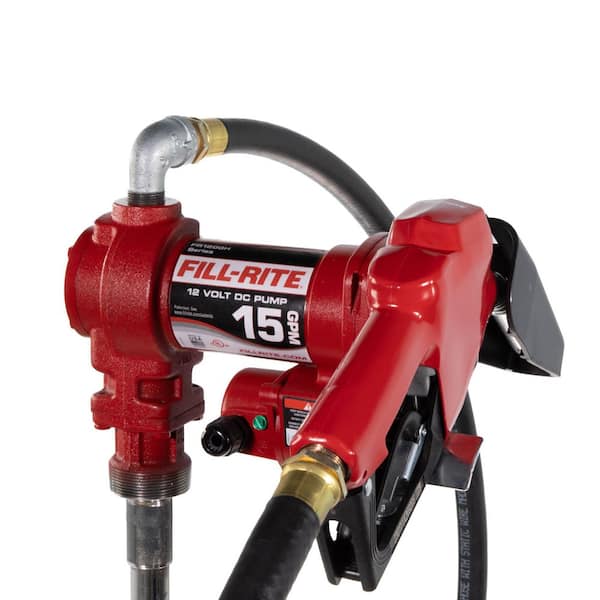

12-Volt 15 GPM 1/4 HP Fuel Transfer Pump (Auto Nozzle Package)

Frequently Bought Together

+
+

Product Overview

The FR1210HA is a 12-Volt 15 GPM fuel transfer pump that comes with a 3/4 in. x 12 ft. discharge hose, 3/4 in. unleaded auto nozzle (red cover), 1 in. x 34 in. telescoping steel suction pipe, 3/4 in. elbow, 5 ft. 12-Gauge ground wire, and a 18 ft. 12-Gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. The previous FR1210GA model has been updated to the FR1210HA model. With a removable junction box, the product is now easier to install. The performance specifications of the product did not change.
  • Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
  • Removable junction box allows for easier installation
  • Thermal overload protection prevents motor from overheating during abnormal usage
  • Pump is capable of pumping fluid out of an 8 ft. deep storage tank (at sea level)
  • Rugged switch lever is designed to endure heavy abuse
  • Self-priming pump with a 1/4 HP motor at 2,600 RPM (30 minute on/off duty cycle)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Transfer Pumps

12-Volt 15 GPM 1/4 HP Fuel Transfer Pump (Manual Nozzle Package)
current product
12-Volt 15 GPM 1/4 HP Fuel Transfer Pump (Auto Nozzle Package)
12-Volt 20 GPM 1/4 HP Fuel Transfer Pump (Manual Nozzle Package)12V 20 GPM 1/4 HP Fuel Transfer Pump (Auto Nozzle Package)
BrandFILL-RITEFILL-RITEFILL-RITEFILL-RITE
Name12-Volt 15 GPM 1/4 HP Fuel Transfer Pump (Manual Nozzle Package)12-Volt 15 GPM 1/4 HP Fuel Transfer Pump (Auto Nozzle Package)12-Volt 20 GPM 1/4 HP Fuel Transfer Pump (Manual Nozzle Package)12V 20 GPM 1/4 HP Fuel Transfer Pump (Auto Nozzle Package)
Price
Add to Cart to See Price
Add to Cart to See Price
Add to Cart to See Price
Ratings
(6)
(6)
(1)
(1)
Voltage12v12v12v12v
Power TypeElectricElectricElectricElectric
Discharge Flow @ 0 ft. (gallons/hour)90090012001200
Power Type RequiredDCDCDCDC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
11 in
Product Height (in.)
10 in
Product Width (in.)
14 in

Details

Amperage (amps)
20 A
Cord Length (ft.)
18
Discharge Flow @ 0 ft. (gallons/hour)
900
Discharge Flow @ 0 ft. (gallons/min)
15
Discharge Flow @ 10 ft. (gallons/hour)
900
Discharge Flow @ 10 ft. (gallons/min)
15
Features
Self-Priming,Thermal Overload Protection
Head Pressure (ft.)
37
Housing Material
Cast-Iron
Included
Hardware
Inlet Connection
Threaded female
Maximum Discharge Flow (gallons/hour)
900
Maximum Horsepower (hp)
1/4
Maximum Horsepower (hp)
0.2503
Maximum Pressure (psi)
16
Maximum Working Temperature (F)
105
Minimum working temperature (F)
-13
Outlet Connection
Threaded female
Pack Size
1
Power Type
Electric
Power Type Required
DC
Product Weight (lb.)
29 lb
Pump Switch Type
Electronic
Returnable
90-Day
Vertical Lift (ft.)
37
Voltage
12v

Warranty / Certifications

Certifications and Listings
UL Listed,cUL Listed
Manufacturer Warranty
Limited Lifetime
