Internet # 314006101

Model # FR1210H

Store SKU # 1005578950

12-Volt 15 GPM 1/4 HP Fuel Transfer Pump (Manual Nozzle Package)

$44499
Apply Now
Pay $394.99 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Made from premium-grade cast iron for enhanced durability
  • Ideal for pumping gasoline, diesel, kerosene, and more
  • Removable junction box enables hassle-free installation
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

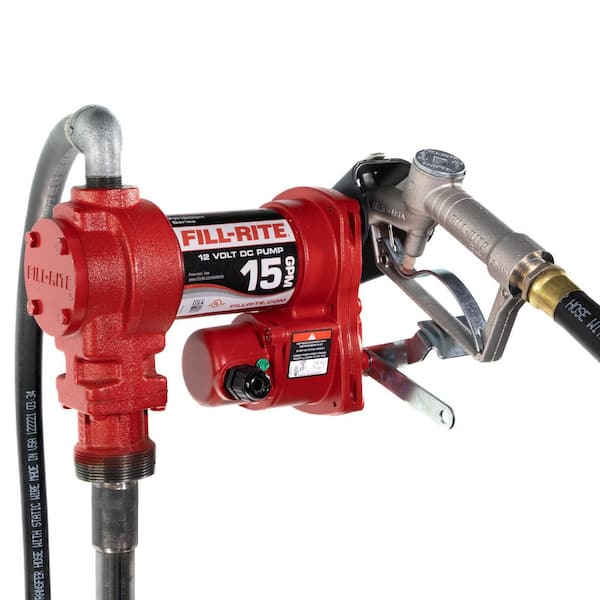

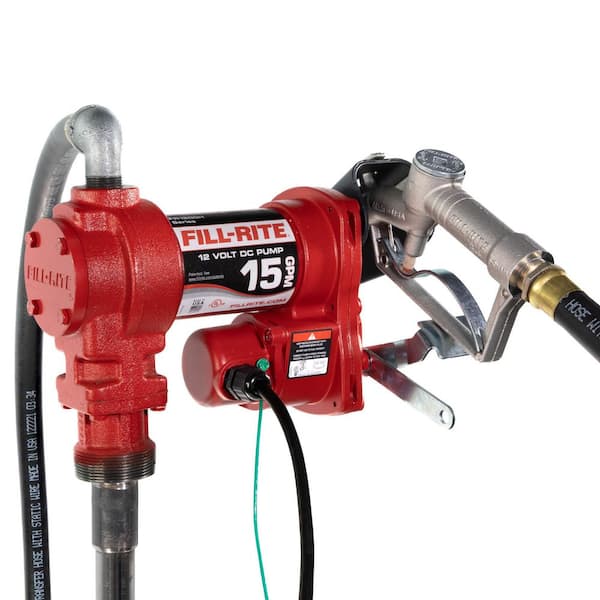

The FR1210H is a 12-Volt 15 GPM fuel transfer pump that comes with a 3/4 in. x 12 ft. discharge hose, 3/4 in. manual nozzle, 1 in. x 34 in. telescoping steel suction pipe, 3/4 in. elbow, 5 ft. 12-Gauge ground wire, and a 18 ft. 12-Gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. The previous FR1210G model has been updated to the FR1210H model. With a removable junction box, the product is now easier to install. The performance specifications of the product did not change.
  • Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
  • Removable junction box allows for easier installation
  • Thermal overload protection prevents motor from overheating during abnormal usage
  • Pump is capable of pumping fluid out of an 8 ft. deep storage tank (at sea level)
  • Rugged switch lever is designed to endure heavy abuse
  • Self-priming pump with 1/4 HP motor at 2,600 RPM (30 minute on/off duty cycle)
  • Return Policy
caret

Specifications

Dimensions: H 10 in, W 14 in, D 12 in

Dimensions

Product Depth (in.)12 inProduct Height (in.)10 in
Product Width (in.)14 in

Details

Amperage (A)20 ACord Length (ft.)18 ft
Discharge Flow @ 0 ft. (gallons/hour)900Discharge Flow @ 0 ft. (gallons/min)15
Discharge Flow @ 10 ft. (gallons/hour)900Discharge Flow @ 10 ft. (gallons/min)15
FeaturesSelf-Priming, Thermal Overload ProtectionHead Pressure (ft.)37
Housing MaterialCast-IronImpeller MaterialSteel
IncludedHardwareInlet ConnectionThreaded female
Maximum Discharge Flow (gallons/hour)900Maximum Horsepower (hp)1/4
Maximum Pressure (PSI)16 PSIMaximum Working Temperature (F)105
Minimum working temperature (F)-13Outlet ConnectionThreaded female
Pack Size1Power TypeElectric
Power Type RequiredDCProduct Weight (lb.)29 lb
Pump Switch TypeElectronicReturnable90-Day
Vertical Lift (ft.)37Voltage12v

Warranty / Certifications

Certifications and ListingsUL Listed, cUL ListedManufacturer WarrantyLimited Lifetime
