#1 Home Improvement Retailer

Internet #308853161

Model #GE1LU502SSP

Store SKU #1004155261

Store SO SKU #1004155261

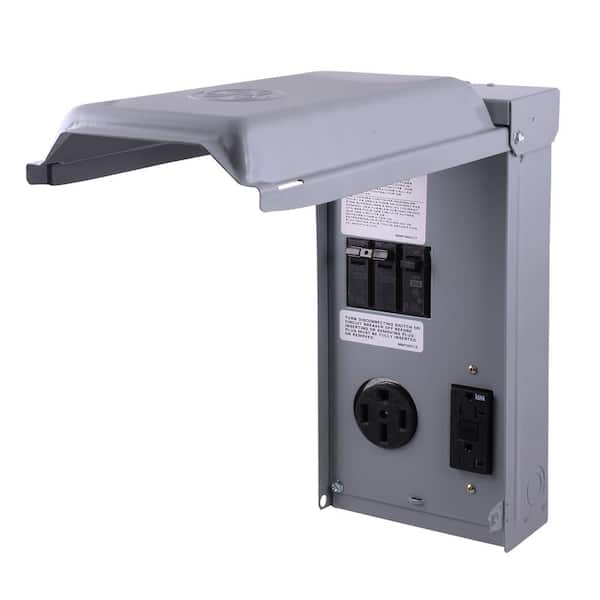

RV Panel with 50 Amp RV Receptacle and 20 Amp GFCI Receptacle

$15726
Apply Now
Pay $132.26 $157.26 when you open a new card. info
Apply for a Home Depot Consumer Card
  • 70A Unmetered Power Panel for recreational vehicle park power
  • 2-Space 2-Circuit includes circuit breakers
  • Stay open position on door
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$15726

Product Overview

The Unmetered Surface Mount RV Outlet Box is factory-assembled and factory-tested. It comes to the construction job site ready to use with no need to assemble individual parts, saving installation time. The single, heavy-gauge NEMA 3R rainproof enclosure protects against weather, vandalism and nuisance tripping. It is lockable and is engineered for maximum protection of receptacles, cords, plugs, breakers. The unit complies with National Electrical Code and OSHA requirements.
  • All-in-1 construction for factory assured terminations
  • Rolled edge door for cord protection
  • Heavy galvanized zinc coated steel, with highest quality electro-deposition finish - resists corrosion and fading
  • Welded flange NEMA 3R construction for lasting service in outdoor installations
  • UL Listed
  • Padlock provision can prevent unauthorized entry
  • Dead front construction prevents accidental contact with live parts
  • All components are factory wired and assembled, reducing installation time
  • Power outlet door has stay-open position for user convenience
  • All terminals accept copper or aluminum wire for added installation flexibility
  • Broad range of concentric knock-outs to accommodate wiring needs
  • All units with 12-2 copper/aluminum equipment ground lug
  • Closure caps included, hubs ordered separately
  • Only the 20a receptacle is GFCI protected
  • Click here for more information on Electronic Recycling Programs

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar RV Electrical Panels

current product
RV Panel with 50 Amp RV Receptacle and 20 Amp GFCI Receptacle
Metered RV Panel with 50 Amp RV Receptacle and 20 Amp GFCI ReceptacleBest SellerRV Pad Mount Pedestal with 50 Amp and 30 Amp RV Receptacles and 20 Amp GFCI ReceptacleMetered RV Panel with 50 Amp and 30 Amp RV Receptacles and 20 Amp GFCI Receptacle
BrandGEGEGEGE
NameRV Panel with 50 Amp RV Receptacle and 20 Amp GFCI ReceptacleMetered RV Panel with 50 Amp RV Receptacle and 20 Amp GFCI ReceptacleRV Pad Mount Pedestal with 50 Amp and 30 Amp RV Receptacles and 20 Amp GFCI ReceptacleMetered RV Panel with 50 Amp and 30 Amp RV Receptacles and 20 Amp GFCI Receptacle
Price
$15726
$34021
$35500
$36732
Ratings
(87)
(19)
(61)
(56)
Number of Circuits2255
Maximum Amperage (amps)7070100100
Electrical Product TypeLoad CenterLoad CenterDistribution Load Center / Breaker AccessoryLoad Center
View ProductView ProductView ProductView Product

Specifications

Dimensions

Load center depth (in.)3.8Load center height (in.)14
Load center width (in.)7

Details

Electrical Product TypeLoad CenterLoad Center TypeTemporary Power
Maximum Amperage (amps)70Number of Circuits2
Number of Spaces3Phase Type1 Phase
Product Weight (lb.)10Returnable90-Day
Voltage (volts)240

Warranty / Certifications

Certifications and ListingsUL ListedManufacturer WarrantyOne year warranty from first use

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.8
    out of 87 reviews
  • 94%recommend this product
Filter by:
Showing 1-10 of 87 reviews
Great product usually Well I bought 12 of these for a RV Park that I am working on, when I got ar...
Great product usually Well I bought 12 of these for a RV Park that I am working on, when I got around to installing them(about a month after purchasing them) I discover 7 of them were bad . The knockout on the bottom wouldn't knockout. So I ordered 6 more on Oct.9,2019 said they been in Decatur al on the 14. Today I got a email, they were shipped today.
by
  • DIY
  • Recommended
1 found this review helpful
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
  • Verified Purchase
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by
  • Verified Purchase
great delivery, easy installation as expected....
great delivery, easy installation as expected.
by
  • Verified Purchase
by
  • Verified Purchase
by
  • Verified Purchase
RV power panel.
Well designed and built unit.
by
  • Verified Purchase
  • Recommended
This is a straightforward option for everyone power. It comes...
This is a straightforward option for everyone power. It comes with the breakers built in as well as the receptacles. Honestly don’t see any issues with it, I’ve installed two and both went well. Not sure there is a better cost solution than buying them built as a package like this.
by
  • Verified Purchase
Worked great and good price. Easy installation....
Worked great and good price. Easy installation.
by
  • Verified Purchase
by
  • Verified Purchase
Showing 1-10 of 87 reviews
