Internet #304603823

Model #4062-TNMSO

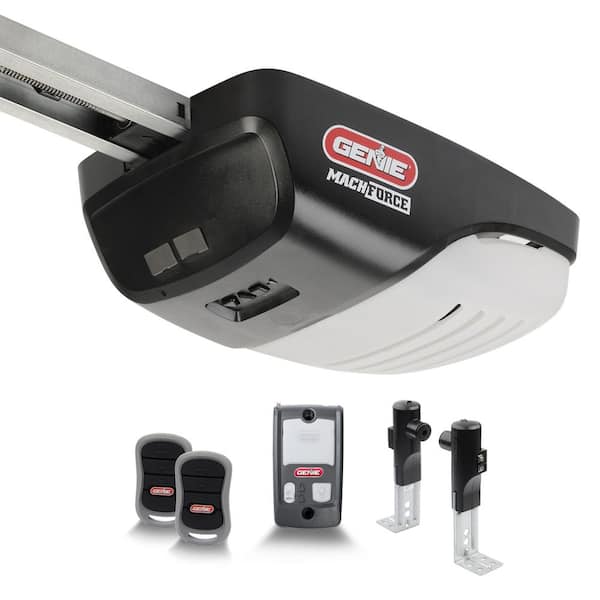

MachForce 2 HPc Premium Garage Door Opener - Exclusive Screw Drive - Ultimate Strength and Speed w/ a 140-Volt DC Motor

  • Premium 2 HPc opener provides unrivaled power and speed
  • Genie Exclusive Screw Drive Technology + ultra quiet 140v motor
  • Includes pre-programmed remotes and wall console
  • See More Details

Frequently Bought Together

+
+
Price:
$20800

Product Overview

The Genie MachForce Screw Drive Garage Door Opener

Genie Exclusive Screw Drive Technology

The Genie Screw Drive Garage Doors Openers feature the quickest opening speeds and the most lifting strength

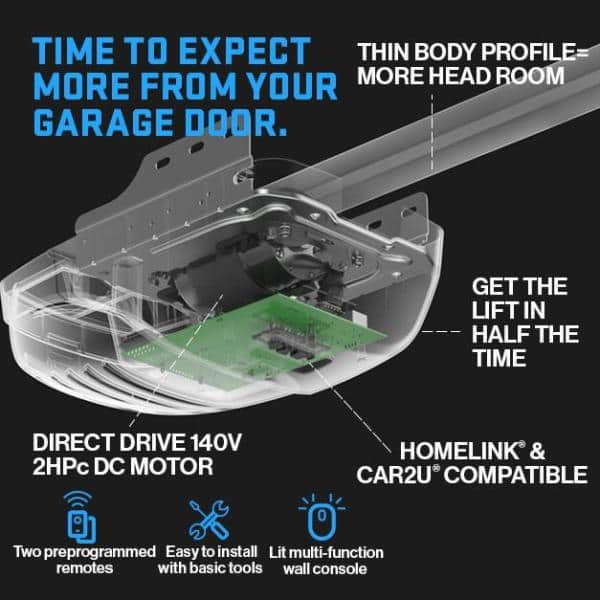

Genie MachForce Screw Drive Garage Door Opener thin and powerful

MachForce Garage Door Opener Maximized Head Room

The thin profile of the MachForce maximized head room without sacrificing power

Genie MachForce Screw Drive Garage Door Opener long term reliability

MachForce Direct Screw Drive Technology Fewer Moving Parts More Reliability

The Genie MachForce is a fully sealed 140 volt DC electric motor assembly for long term reliability

Genie MachForce Screw Drive Garage Door Opener can be upgraded with Aladdin Connect

Upgrade to a Smart Garage With Aladdin Connect

Genie's Aladdin Connect system with Amazon Alexa Compatability, can be added to this garage door opener at any time

Genie MachForce Screw Drive Garage Door Opener- Battery Backup available

Upgrade To An Automatic Battery Backup

Genie's 140V GBB-BX Battery Backup system can be added to this garage door opener at any time, easily

Genie MachForce Screw Drive Garage Door Opener

Exclusive Screw Drive Technology

Genie's exclusive screw drive is designed to be the most reliable garage door opener available

Genie MachForce Screw Drive Garage Door Opener unrivaled speed

The Genie MachForce Lifts 2x Faster

Genie's screw drive technology allows the Machforce to open your garage door up to twice as fast as all other operators

Genie MachForce Screw Drive Garage Door Opener with a 140V 2 HP electric motor

Strong 140V DC Motor

The MachForce garage door opener features the strongest DC motor designed to lift even the heaviest doors

Genie MachForce Screw Drive Garage Door Opener easy DIY install

Designed For Easy DIY Install

This Genie MachForce garage door opener is designed to be installed by the homeower with only basic hand tools

Genie MachForce Screw Drive Garage Door Opener the safety of an enclosed rail

Safety In Mind

The Genie C-Channel Rail assembly encloses the moving parts to be safe, an easy install, and to ensure long term reliability

Genie MachForce Screw Drive Garage Door Opener - customer service

Customer Service in the USA

All Genie customer service reps are in the USA to assist you via chat, phone, or email

Genie MachForce Screw Drive Garage Door Opener - homelink built in

HomeLink Compatability Built-In

Your car's HomeLink system will sync to your Genie garage door opener

Genie QuietLift 550 Ultra-Quiet belt drive

Ultra-Quiet Belt Drive

The Genie QuietLift 550 garage door opener features a steel reinforced belt for strength and durability

The Genie MachForce premium screw drive garage door opener has an ultra-quiet 2 HPc DC motor that provides the ultimate combination of power and speed, making it 2x faster than most chain or belt drive garage door opener models. The GenieSense enabled 140-Volt DC motor paired with a proprietary maintenance-free direct screw drive system that increases strength, power and provides unmatched durability, making it the ideal choice to open the heaviest garage doors (up to 7 ft. in height) with no additional maintenance required. You will also enjoy the added conveniences of 2 pre-programmed 3 button remotes for a quicker set-up and a wall control panel with an independent light button and vacation lock for added security. The Genie Safe-T-Beam garage door safety sensors ensure your family’s safety and helps prevent accidents with an infrared beam of light across the door opening.The MachForce garage door opener is proudly supported by our team of US-based technical support representatives available by phone or chat. The premium screw drive garage door opener is also made with an enclosed rail design to ensure the highest levels of safety and many years of reliable operation.
  • California residents
  • Genie MachForce Screw Drive garage door opener features a 140V motor producing 2 HPc with GenieSense Technology designed to ensure years of worry-free service
  • Exclusive Genie Premium Screw Drive technology designed to lift heavy garage doors quickly
  • Limited lifetime warranty on drive components
  • Accessories included: two pre-programmed remotes, multi-function wall console control panel with vacation lock and light control button, and Safe-T-Beam garage door sensors
  • GenieSense Monitoring and Diagnostic Technology
  • Aladdin Connect WiFi smartphone enabled garage door controller upgrade is available (sold separately)
  • Enclosed 7 ft. C-channel rail - For 8 ft. high garage doors use extension kit - GenieEKSC (sold separately)
  • Add a Genie Battery Backup system anytime with a Genie37228R; this ensures your family can open your garage door up to 50 times when the power is out
  • HomeLink + Car2U integration comes standard, no additional hardware required (Genie Exclusive)
  • Genie Intellicode secures your home with rolling-code technology
  • Recommended use of two Genie garage door opener LED light bulbs. (LEDB1R) These are specifically designed for use in garage door openers (sold separately)
  • Safe-T-Beams garage door safety sensors come standard to keep your family, and pets, safe with infrared technology
  • Genie dual frequency remotes operate on both 315 and 390mHz to minimize interference and improve your garage door opener remote performance
  • US-based technical support assistance available by phone 1-800-354-3643
  • Includes illustrated, detailed 34 in. x 22 in. installation poster plus programming manual, they include QR codes to access programming and installation videos online for easier installation
  • For use on sectional or 1 piece garage doors
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Garage Door Openers

Chain Drive 550 1/2 HPc Durable Chain Garage Door Opener with Wireless Keypad
current product
MachForce 2 HPc Premium Garage Door Opener - Exclusive Screw Drive - Ultimate Strength and Speed w/ a 140-Volt DC Motor
MachForce Plus 2 HP Premium Screw Drive Garage Door Opener Plus Wireless KeypadStealthDrive 1-1/4 HPc Ultra-Quiet Belt Drive Smart Garage Door Opener w/ Battery Backup and Aladdin Connect Smart Home
BrandGenieGenieGenieGenie
NameChain Drive 550 1/2 HPc Durable Chain Garage Door Opener with Wireless KeypadMachForce 2 HPc Premium Garage Door Opener - Exclusive Screw Drive - Ultimate Strength and Speed w/ a 140-Volt DC MotorMachForce Plus 2 HP Premium Screw Drive Garage Door Opener Plus Wireless KeypadStealthDrive 1-1/4 HPc Ultra-Quiet Belt Drive Smart Garage Door Opener w/ Battery Backup and Aladdin Connect Smart Home
Price
$16148
$20800
$23900
$28129
Ratings
(372)
(309)
(208)
(256)
Garage Door Opener Horsepower (hp)1/2 hp2 hp2 hp1 1/4 hp
Opener TypeChain DriveScrew DriveScrew DriveBelt Drive
FeaturesRolling code technology,Safety sensor,Wireless keypadRolling code technology,Safety sensorRolling code technology,Safety sensor,Wireless keypadBattery Backup Function,Wireless keypad
IncludedHardware,Instructions,Remote ControlRemote ControlRemote ControlBatteries,Remote Control
Bulb TypeIncandescentIncandescentIncandescentLED
Product Width (in.)1211.511.510
Smart Home Smart Home Enabled
Works With Alexa, Alexa, Google, Google Assistant
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
40
Product Height (in.)
9.5
Product Width (in.)
11.5
Rail Length (ft.)
9.5

Details

Bulb Type
Incandescent
Commercial/Residential
Residential
Doors Operated by Remote
3
Features
Rolling code technology,Safety sensor
Garage Door Opener Horsepower (hp)
2 hp
Included
Remote Control
Mounting Location
Ceiling Mounted
Opener Type
Screw Drive
Product Type
Without Battery Backup
Product Weight (lb.)
38.1
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime Motor and Screw Drive System, 5 years on parts and 1 year on accessories

Questions & Answers

37Questions20Answers

How much weight can it lift?

Asked by Rick October 22, 2020
2
Answers

This model is rated for a 750lb garage door.

How long is the power cord?

Asked by HighCeiling August 16, 2020
2
Answers

I used the cord that came with the unit. As I have a ceiling outlet.

I have an earlier Genie 1200 Powermax that died on me due to a power outage. The power head look...

Asked by Hank August 11, 2020
3
Answers

Yes. I had the same issue with a PowerMax 1200 and did that swap. Very easy; took about 30 minutes.

Will it work with an older screw drive track?

Asked by Fp July 21, 2020
2
Answers

It uses the same screw drive type of mechanism as previous versions have used, but I replaced the whole system as the other was over 15 years old.

Is the screw rod assembly compatible with a Genie Intellicode year of manufature 1998?

Asked by Jock June 21, 2020
2
Answers

It seemed to me that the one I took down had a VERY similar screw drive shaft and linkage system. Will it fit your old one? That I dont know you would have to find a way of mounting its unique track.. it's not your standard narrow track. It has a mount with 6 bolts that essentially clips it to the top of the motor body. I wouldnt assume it would work.

Is the rail length similar or the same as the Genie model 4062. Also, is this a model 4063?

Asked by Don May 28, 2020
2
Answers

I did not use the rail as I just needed a new head unit to replace an older unit on a 14 foot door. Done in an hour!

Will this Garage Door Opener work on my garage door? My door is 7 feet tall and 17 feet wide.

Asked by Phil April 4, 2020
2
Answers

Yes, it will.

Will the screw drive extension kit for the power max1200 work on the Machforce

Asked by Vince February 21, 2020
1
Answer

Yes, it will.

Why cant you send to CA

Asked by Tom February 6, 2020
2
Answers

Probably because some law in CA that prevents it from being used in CA. There is a Prop 65 warning in the ad on the HD site, can cause cancer in lab rats or some such thing. "This product can expose you to chemicals including 1,3 butadiene which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: P65Warnings"

What is the nameplate amperage of this Opener ?

Asked by OldGeezer December 20, 2019
2
Answers

It is 5 Amps.

MachForce 2 HPc Premium Garage Door Opener - Exclusive Screw Drive - Ultimate Strength and Speed w/ a 140-Volt DC Motor - page 2

Customer Reviews

  • 309 Customer Reviews
  • 4.6 out of 5 stars overall
85% of customers recommended.
Overall Ratings
5star-icon(225)
4star-icon(51)
3star-icon(14)
2star-icon(5)
1star-icon(14)
Sort By:
This opener is strong and quite. I have a heavy wooden door and this opener operates quickly. Ins...
This opener is strong and quite. I have a heavy wooden door and this opener operates quickly. Installation was taxing hence the good instead of excellent review.
Was this helpful?
0
0
Was easy to install and program had bought a 2hp Ryobi would open but wouldn't close and the eyes...
Was easy to install and program had bought a 2hp Ryobi would open but wouldn't close and the eyes on sunny days would mess up glad I bought a genie eyes and screw drive work great on my 18 ft door bought a key pad extra to go with this was easy to program
Was this helpful?
1
0
Very easy to install. Took about two by my self. Made temporary hangers after removing my old Gen...
Very easy to install. Took about two by my self. Made temporary hangers after removing my old Genie. Fast open on the 8' door. So far so good.
Was this helpful?
0
0
Best screw drive out there and easy to install.
Best screw drive out there and easy to install.
Was this helpful?
0
0
crummy shipping container
Tried to open shipping box. Watch out! Everything just falls out on the ground. Very poor way to ship a $200 garage door opener. We’ll see how well it works.
Was this helpful?
2
0
The MachForce 2 HPc replaced a legacy Genie door opener, which controlled a 16' x 7' Martin door ...
The MachForce 2 HPc replaced a legacy Genie door opener, which controlled a 16' x 7' Martin door consisting of 4-sectional metal panels with insulated back panels. The Garage Door balance test checked "OK" prior to install by Home Depot contracted professional installer. Immediately, the flimsy C-channel metal housing supporting the thin Screw Drive shaft did not appear to be able to handle the torque of the Opener when engaged lifting/lowering Garage door. After install during operation, the C-channel metal housing supporting the thin Screw Drive shaft, physically bends, which causes the Door Opener to move forward/reverse. This flexing movement, I am afraid in time will cause metal fatigue, which will eventually cause the metal brackets holding the Door Opener to break free, fall and damage our vehicle. Secondly, the vibrations and noise generated when the Door Opener is engaged lifting/lowering the door is extremely loud. It's been 21-days since the install and the noise is still present and aggravating. The noise and vibrations was not something I expected with this more powerful Genie Door Opener. Now, I wish I had kept the older Genie. All though at the end, it was not reliable, at least it was quiet and vibration free.
Was this helpful?
6
0
Response from Genie Product ExpertFebruary 22, 2019
Hello thundergod. I am sorry to hear about your difficulty with your MachForce garage door opener. Please call our customer service line at 1-800-354-3643 so we can provide you more assistance. Thank you. GenieCompany
A good door open with one major flaw. The rail that connects the power head to the door is poor...
Appearance :
4
Ease of installation :
2
Value :
1
Quality :
2
A good door open with one major flaw. The rail that connects the power head to the door is poorly designed. The wide axis is oriented left to right and the thin axis is oriented up/down. This means that it is very easy for the rail to bow when the door closes. Take a ruler, easy to bend along the wide dimension but very hard to bend along the thin dimension. For this reason I do not recommend. I have an old Genie where the rail is designed so that the thin axis is oriented up/down and it NEVER bows.
Was this helpful?
0
0
Response from Genie Product ExpertNovember 25, 2020
Thank you for the feedback. The rail should not bow when the door closes, if you are still experiencing this issue please contact Genie customer support at 1-800-354-3643 for further assistance. GenieCompany
This is a very well made opener ...fast and self adjusting. Have a 2 1/2 car garage door and the...
This is a very well made opener ...fast and self adjusting. Have a 2 1/2 car garage door and the old 1/2 hp would bind up and move slow. This 2hp non belt driven motor is POWERFUL and u can adjust speeds. Safety security lock feature is nice plus the 2 remotes are small and very cool looking. I do not use the aladdin feature...maybe someday i will. Super value and super fast FREE fed ex delivery.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
