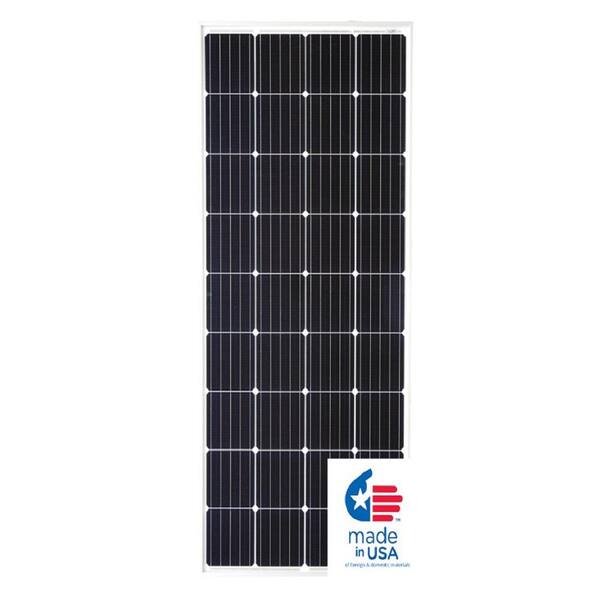

190-Watt Monocrystalline PV Solar Panel for Cabins, RV's and Back-Up Power Systems

$ 207 50

Overview

The Grape Solar 190-Watt US Assembled Monocrystalline PV Solar Panel use high efficiency solar cells with high module conversion efficiency and long term output reliability. Virtually maintenance free. Ideal for RV's, cabins, sheds, remote locations and other small power generation needs.

Frequently Bought Together

Frequently Bought Together

Product Overview

The Grape Solar 190-Watt US Assembled Monocrystalline PV Solar Panel use high efficiency solar cells with high module conversion efficiency and long term output reliability. Virtually maintenance free. Ideal for RV's, cabins, sheds, remote locations and other small power generation needs.
  • High transmittance, low iron tempered glass with enhanced stiffness and impact resistance
  • Positive and negative leads equipped with MC-IV comparable connectors
  • Bypass diodes mitigate shading effects in series strings
  • Rigorous quality control with 0% to 3% positive output power tolerance
  • Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance
  • Outstanding electrical performance under high temperature and weak light environments
  • Unique frame design with strong mechanical strength for up to 50 lbs. sq. ft. wind load and snow load withstanding, mounting holes provided for easy installation
  • Reliable 5 year product workmanship warranty and 25-year linear output performance warranty, your investment is safe with us
  • Refer to diagram for components of a complete solar power system with AC output
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs

Product Overview

Model #: GS-STAR-190W-US
Internet #: 313629211

The Grape Solar 190-Watt US Assembled Monocrystalline PV Solar Panel use high efficiency solar cells with high module conversion efficiency and long term output reliability. Virtually maintenance free. Ideal for RV's, cabins, sheds, remote locations and other small power generation needs.

  • High transmittance, low iron tempered glass with enhanced stiffness and impact resistance
  • Positive and negative leads equipped with MC-IV comparable connectors
  • Bypass diodes mitigate shading effects in series strings
  • Rigorous quality control with 0% to 3% positive output power tolerance
  • Advanced encapsulation material with multilayer sheet lamination to provide long-life and enhanced cell performance
  • Outstanding electrical performance under high temperature and weak light environments
  • Unique frame design with strong mechanical strength for up to 50 lbs. sq. ft. wind load and snow load withstanding, mounting holes provided for easy installation
  • Reliable 5 year product workmanship warranty and 25-year linear output performance warranty, your investment is safe with us
  • Refer to diagram for components of a complete solar power system with AC output
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
New
Brand Renogy Grape Solar Renogy Renogy
Name 100-Watt 12-Volt Monocrystalline Solar Panel Compact Design 190-Watt Monocrystalline PV Solar Panel for Cabins, RV's and Back-Up Power Systems 100-Watt 12-Volt Monocrystalline Foldable Solar Panel Suitcase 175-Watt 12-Volt Extremely Flexible Ultra-Thin and Light Weight Monocrystalline Solar Panel for RVs and Boats
Price
$121.17
$207.50
$249.99
$329.99
Ratings (85) (96) (5) (16)
Included No Additional Items Included No Additional Items Included Charge controller,Electrical wire No Additional Items Included
Features Corrosion resistant,Flexible,Indoor/Outdoor,Portable Outdoor,Weatherproof Corrosion resistant,Indoor/Outdoor,Portable Flexible,Outdoor,Weatherproof
Application Boat,Camping,Hiking,RV,Shed,Vehicle Boat,Cabin,RV,Shed,Vehicle Boat,Cabin,Camping,Hiking,Residential,Shed Back-Up Power,Boat,Cabin,RV,Shed,Vehicle
View Product View Product View Product View Product

Specifications

Dimensions

Panel Height (in.)
1.57
Panel Width (in.)
26.57
Panel length (in.)
58.27

Details

Amperage (amps)
9.8
Application
Boat,Cabin,RV,Shed,Vehicle
Features
Outdoor,Weatherproof
Included
No Additional Items Included
Indoor/Outdoor
Outdoor
Number of Panels
1
Panel Material
Monocrystalline Silicon
Panel weight (lb.)
26.5
Returnable
180-Day
Solar panel type
Monocrystalline
Voltage (v)
12 v
Wattage (watts)
190

Warranty / Certifications

Manufacturer Warranty
Refer to the manufacturer's website

Specifications

Dimensions

Panel Height (in.)
1.57
Panel Width (in.)
26.57
Panel length (in.)
58.27

Details

Amperage (amps)
9.8
Application
Boat,Cabin,RV,Shed,Vehicle
Features
Outdoor,Weatherproof
Included
No Additional Items Included
Indoor/Outdoor
Outdoor
Number of Panels
1
Panel Material
Monocrystalline Silicon
Panel weight (lb.)
26.5
Returnable
180-Day
Solar panel type
Monocrystalline
Voltage (v)
12 v
Wattage (watts)
190

Warranty / Certifications

Manufacturer Warranty
Refer to the manufacturer's website

Questions & Answers

I want to add 4th penal into my 3x180w system (Internet #301345828 ) , but 180w single panel is o...

I want to add 4th penal into my 3x180w system (Internet #301345828 ) , but 180w single panel is out of stock, is it okay to add this? They are running parallel
Asked by: Tom
The Comet-40 charge controller is maxed out with three 180W panels on a 12V system. If you increase the system voltage to 24V then you can add additional 180W or 190W panels. Reach out to support@grapesolar.com for assistance with panel configuration.
Answered by: Grape Solar Expert
Date published: 2020-05-15
