- High-quality LED light for new construction, remodel & retrofit
- Easy canless installation with adjustable CCT, dim-to-warm
- Wet Location listed, IC-rated, Air-Tite®, and ENERGY STAR listed
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
High-quality LED makes all the difference when replacing outdated downlights, reimagining the lighting scheme in your home, or selecting ceiling lights for a new construction project. Enter HALO's RL series canless LED lights, delivering sophisticated fine-tuning and unrivaled results while simplifying installation for contractors and DIY-ers.Adjust the maximum brightness by choosing the low or high lumen setting (4-in: 600/900 lm or 6-in: 900/1200). Tailor your lighting to each room with 5 color temperature options, from cozy soft white (2700K) to daylight (5000K). The dim-to-warm feature enhances relaxation, fading from bright white (3000K) to a soft candlelight glow (1800K) as you dim the light.The canless design means hassle-free installation with no housing or j-box required. The RL is also Wet Location-listed, Air-Tite certified, and IC-rated for most indoor and outdoor applications. Designed and tested in the USA, HALO has been a contractor-preferred brand for nearly 70 years and is North America's top-selling recessed lighting brand
Highlights
- EASY, IMPACTFUL UPGRADE: This canless LED recessed downlight requires no existing housing or junction box. Contractor-preferred quality, aesthetics, and ease of installation make it a solid choice for new construction, remodel, and retrofit projects
- ADJUSTABLE COLOR TEMPERATURES: Select from 5 color temperatures, from soft white (2700K) to daylight (5000K) or the Dim-to-Warm setting that starts at bright white (3000K) and dims with a standard compatible dimmer down to a cozy candlelight (1800K)
- LUMEN SELECTABLE (BRIGHTNESS): Choose between 600/900 lm (4-inch) or 900/1200 lm (6-inch model)
- DIMMABLE: For enhanced control and efficiency, add a compatible dimming switch (not included); light dims to 5%.
- USE INDOORS AND OUTDOORS: The HALO RL is wet location-listed for areas like showers and protected outdoor ceilings
- EFFICIENT & RELIABLE: ENERGY STAR listed, IC-rated for contact with insulation, and Air-Tite certified to prevent air flow between occupied spaces and unconditioned areas
- ESTABLISHED, REPUTABLE BRAND: HALO products are designed and tested in the USA and have been a contractor-preferred brand for nearly 70 years. We offer superior quality, reliability, and US-based customer service. Backed by a 5-year limited warranty
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Additional Resources
Shop All HALOSpecifications
Dimensions
Nominal Size (in.) | 4 in |
|---|---|
Product Diameter (in.) | 4 in |
Product Height (in.) | 3.12 in |
Details
Actual Color Temperature (K) | 2700, 3000, 3500, 4000, 5000 |
|---|---|
Color Temperature | Daylight |
Color/Finish | White |
Color/Finish Family | White |
Commercial/Residential | Residential |
Damp/Wet Rating | Wet Rated |
Dimmable Capability | Dimmable |
Features | No Additional Features |
IC Rating | IC Rated |
Included | No Additional Accessories |
Indoor/Outdoor | Indoor |
Light Bulb Type Included | Integrated LED |
Lumens | 600, 900 |
Material | Aluminum |
New Construction or Remodel | New Construction, Remodel |
Pack Size | 01 |
Returnable | 90-Day |
Trim Style | Baffle |
Voltage (V) | 120 V |
Watt Equivalence | 75 |
Wattage (W) | 10.9 W |
Warranty / Certifications
Certifications and Listings | Energy Star, IC Rated, ROHS, Title 24, UL Certified |
|---|
Questions & Answers
Can you upload the correct Installation Guide for these lights (RL4LS9FSD2W1EWHDM) please? The guide attached to this page is for a different style of light (retrofit).
Sorry for the inconvenience! Please see correct installation instructions below: https://www.cooperlighting.com/api/assets/v1/file/CLS/content/9718f359b3bd4419b256afa4012207e3/HALO-RL-Canless-LED-Downlight-installation-instructions.pdf We are in the process of getting this updated, and the change will be reflected soon.
What is the beam angle for the RL 4 in. Canless Recessed LED Downlight?
Thank you for your question! Please note that the beam angle of the Halo fixture model #RL4LS9FSD2W1EWHDM is 86°. Please refer below spec sheet for more details: https://www.cooperlighting.com/api/assets/v1/file/CLS/content/halo-rl4-canless-spec-sheet/HALO-RL-4-Recessed-Baffle-Canless-Downlight-spec-sheet_rl4ls9fsd2w1ewhdm.pdf
What is the CRI?
Please note that, CRI stands for Color Rendering Index. It is a measure of how accurately a light source reveals the true colors of objects compared to how natural light would render them. A higher CRI value, typically closer to 100, indicates that colors will appear more vibrant and truer to life under that light. For this product, the CRI is 93 across all selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K)
Is the connector between the junction box and the fixture a 3-prong or 4-prong connection?
Thank you for your question! Please note that Halo fixture model #RL4LS9FSD2W1EWHDM has a 4-prong connector between the LED module and the driver, as this is a Dim-to-warm version. Please refer below spec sheet for more details: https://www.cooperlighting.com/api/assets/v1/file/CLS/content/halo-rl4-canless-spec-sheet/HALO-RL-4-Recessed-Baffle-Canless-Downlight-spec-sheet_rl4ls9fsd2w1ewhdm.pdf
Where is the included template for circle cutout? It is mentioned in instructions but not in box.
The HALO RL 4 in. Canless Recessed LED Downlight requires a cutout diameter of 4.19 inches (106mm). While the instructions may refer to a template, a physical one might not be included in the box. For cutting the hole, a 4-3/16 inch ceiling cutout is specified. If a 4-3/16 inch hole saw is not available, a 4-1/4 inch hole saw is generally a more suitable option than a 4-1/8 inch one, as a slightly larger hole provides more flexibility during installation. Exercise caution to ensure precise cutting.
How long does this light last before it has to be replaced?
The RL4LS9FSD2W1EWHDM light fixture has an expected lifespan of 50,000 hours of maintenance-free operation, as projected in accordance with IES TM-21 standards.
Halo RL 4 inch can-less recessed light (Model # RL4LS9FSD2W1EWHDM) requires a 4-3/16" ceiling cutout. However, 4-3/16" hole saws not available but they have 4-1/8" and 4-1/4" hole saw sizes. Can I use either a 4-1/8" or 4-1/4" hole saws instead?
The RL4LS9FSD2W1EWHDM requires a 4-3/16" ceiling cutout. A 4-1/8" hole saw is slightly smaller than the recommended cutout size, while a 4-1/4" hole saw is slightly larger. It's generally better to have a slightly larger hole than a smaller one, as this will provide more flexibility for adjustments during installation. Therefore, the 4-1/4" hole saw would likely be a more suitable option. However, it's important to exercise caution and ensure precise cutting to avoid making the hole too large.
How far should these be installed from the wall? Is 39" OK?
A distance of 39 inches from the wall could be acceptable, but it is important to ensure that the light distribution meets the necessary safety and illumination requirements for your specific application. It is recommended to follow any installation guidelines provided in the product's manual or consult with a lighting professional to ensure compliance with local codes and standards. If you need more specific guidance, contacting Cooper Lighting Solutions customer service would be advisable.
Viewing 1-8 of 14
Customer Reviews
4.7 out of 5
5
66
4
15
3
2
2
0
1
3
Customer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comCustomer review from influenster.comLoading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Perfect for upgrading your home with dimmable, color-adjustable LED downlights, adding style and functionality. | Perfect for upgrading your home with selectable color temperature and dimmable options, adding style and functionality. | Perfect for upgrading your home with selectable 5CCT options, adding style and functionality to contemporary interiors. | Perfect for upgrading your home with selectable 5CCT options, adding style and functionality to contemporary interiors. |
Wet-location rated | |||
Dimmable | |||
Energy Star certified | |||
Adjustable color temperature | |||
Lumens output | |||
600/900 lm (4-inch) or 900/1200 lm (6-inch) | 1000 lm | 600 lm | 900 |
Related Products
HLBSL 6 in. Can Less Integrated LED, 900 Lumens, 5CCT, White (4-Pack)
HALO 6 in. can less LED light, boasting selectable 5 CCT options for customizable ambiance. Impressive 900 Lumens output, this energy efficient fixture delivers both style and functionality. At just 12.50-Watt, it's brilliant choice for modern lighting solutions.

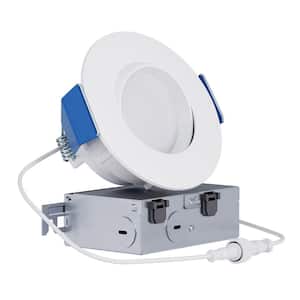

RA 4 in. Integrated LED Recessed Light Trim, 600 Lumens/900 Lumens, 5 Selectable CCT, D2W, 120-Volt, DM
