6 ft./72 in. Black Rustic Single Track Bypass Sliding Barn Door Hardware Kit Straight Design Roller for Double Doors

$97.63
Apply Now
Pay $72.63 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Let's get those doors on track, HOMACER is in town. You don't have to search anywhere else for the best sliding hardware you can get. We provide the finest sliding barn door hardware products and services for our valued customers. We stand by our products by making their quality better, prices lower and installation easier. We make it possible for you to get everything you need when you think about installing sliding barn doors. Each HOMACER sliding barn door hardware kit comes in a variety of styles, shapes and sizes, so we certainly will have the right fit for all your needs. We picked the best premium carbon steel to make the hardware heavy-duty and sturdier than the competition. Choosing the style of hardware you need is that simple. It will be the best fit for any type of space to pump up the esthetic look and feel of the area.

Highlights

  • Bypass options made available 1 track- it is never an easy job to install a double track bypass kit, sometimes the clearance you have is not enough, sometimes the gap between the 2-doors is too large and sometimes it is just frustrating to put all the pieces together, now, with our single track bypass option, installing a bypass kit has never been easier, you can just follow the steps for a standard double door kit and replace the regular hangers with the bending ones

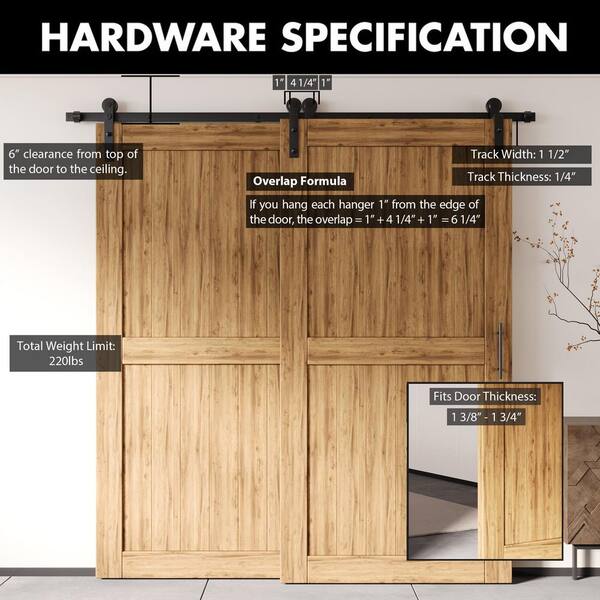

  • Not enough space not a problem- ever frustrated that the ordinary bypass hardware taking too much space with its bulky appearance with the new innovation of our single track bypass system, we design the bypass system to be simplistic at the same time super-efficient to use, it only requires 6 in. clearance and if you are short in the room between the top of the door to the ceiling, the single track bypass will be a perfect choice
  • Quality is 100% under control- we picked the most premium carbon steel to make the hardware heavy-duty and sturdier than the competition, the black powdered coating makes the paint stay forever and will not be scratched off, the wheels of the roller are made of high-quality nylon which ensures minimal noise when it glides on the track, each complete track can hold door weight up to 220 lbs.
  • Barn door hardware installation made easy- i understand it is stressful and time-consuming to mount the double-track bypass because you have to level the 2 flat tracks correctly and complex installation for the bypass doors, so do i HOMACER single track bypass allows your beautiful barn doors to slide bypass with each other on just 1 track, you will also receive the step by step instructions with fractional measurements and concise word instructions with pictures
  • Money and time saver for your project- tired of spending a lot of money and time when searching for the proper size and type of hardware at the big box store not the case here, we provide track sizes from 4 ft. to 20 ft. at reasonable prices, we also improved our packaging to make sure you will get everything you need in a timely manner, no more hassle to go back and forth for the missing or replacement parts
  • Return Policy

Product Information

Internet # 316380882

Model # ZT5TGH072C

Store SKU # 1006222838

Specifications

Dimensions: H 8 in, W 72 in, D 4 in

Dimensions

Product Depth (in.)

4 in

Product Height (in.)

8 in

Product Width (in.)

72 in

Total Assembled Track Length (in.)

72 in.

Details

Builders Hardware Product Type

Wall Mount Door Hardware

Color/Finish

Black

Features

Bypass

Hardware Color Family

Black

Hardware Finish Family

Black

Material

Steel

Number of Doors

Double Door

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

36 Months

Questions & Answers

10Questions
caret
Q:My closet opening is only 3.5" from the adjacent wall on the right. (Several feet for left, so no prob there.) Will this allow the right door to cover the opening when closed? Said another way, what's the minimum distance from closet opening to wall?
by|Jun 28, 2024
0 Answer
Answer This Question
caret
Q:Have a 60 inch opening. What width of doors do you recommend? What track size do you recommend? Thank you =)
by|Jan 11, 2024
0 Answer
Answer This Question
caret
Q:How many pounds can this hardware hold? 220 pounds total?
by|Oct 10, 2023
1 Answer
Answer This Question

A:  220lbs is normal weight limit. If you install a header board, weight limit is increased to 300lbs.

by|Oct 10, 2023
    caret
    Q:I have an overall area of 139" to install 132" bypass railing for 3 - 36" barn doors. Will this kit be what I need?
    by|Sep 3, 2023
    1 Answer
    Answer This Question

    A:  This kit only comes with 2 sets of hangers, for 2 doors. Additional hangers for the third door will have to purchased separately. The length of the track depends on your opening width and your door widths. The single track bypass has a permanent overlap per set of doors. Opening width + 6" = minimum track length. Take that length and divide by 3 = minimum width per door(of the 3 doors).

    by|Sep 19, 2023
      Showing 1-4 of 10

      Customer Reviews

      4.7 out of 5

      • 4.7 out of 20 reviews
      • 100% recommend this product
      Filter by:
      Showing 1-10 of 20 reviews
      Pretty good design and product overall.
      Very useful and easy to install. I believe can have a modification or at least be built with different sizes option. The hangers that hold the doors, both but specially the one for the outside door, are too wide making the gap between the doors and between the door and the wall too large. The outside door hanger could be made of different sizes for different door thickness. My doors are 1 1/2" thick and the outside hanger is 3" wide and once you hang the doors the gap is substantial and doesn't look good. I fixed this gap by adding a piece of wood (3/4") between the door and the hanger in order to increase the thickness of the door and that corrected the gap decently but I'm planning to add another piece of 3/4" to make both doors closer. I also added a piece of wood to the interior door (same as the exterior) and it made the door get closer to the wall, reducing the gap. This is just an idea based on my experience on the installation of this door but I'm enjoying this product and my family loves it. I absolutely recommend it.
      by
      • Verified Purchase
      • Recommended
      Beautiful Hardware
      The HOMACER 5.5 ft./66 in. Black Rustic Single Track Bypass Sliding Barn Door Hardware Kit Straight Design Roller for Double Doors, are meant for doors that pass over one another. The harware is well made and very sturdy. This will hold a pretty serious door and roll smoothly every time you use it. I liked how simple the instructions were for this product and how simple it was to get a door hung properly.  I also really liked how smooth the rollers were, and the safety 'bumps' on the end of the rail that keep the door from coming off the end. One thing I found lacking was the quality of the paint used on the hardware.  By the time I got around to unboxing it, several pieces had already had pretty big chunks of paint flake off of them.  .. which probably means a step was missed in the product prep.  Sadly. It means some touch up is in my future if I don't want rust. Another thing I found basically just humorous, was the wall anchors. These little wall anchors are not going to hold a Double set of doors... if you can't find a stud where you need one, just run a firring board across and save yourself the drywall repair. Overall for the cost. This us a well made product that, with just a little touch up here and there, could be part of a big improvement to your decor game.
      by
      • Recommended
      1 found this review helpful
      Much heavier duty than needed.
      I am very pleased with this hardware. It is all really heavy duty and I am confident that it will last a very long time. The challenge I am facing is because the peculiar situation I am finding. The rail is about 5 ½ feet long and the two openings together are about 7 feet. Fortunately I can buy some metal the same size and weld it on to the end of the rail, drill a couple holes for the wall attach hardware and It will work just fine. The rail is really heavy steel which will be easy to weld, grind and finish and black is easy to match!
      by
      • Recommended
      1 found this review helpful
      Barn Door Track
      I received the HOMACER 5.5 ft./66 in. Black Rustic Single Track Bypass Sliding Barn Door Hardware Kit Straight Design Roller for Double Doors, Black/5.5ft to review for The Home Depot. I really like this kit. Super easy to install, with very detailed instructions. only need basic skills. We are redoing the kitchen and I'm really not to the stage for this, but I wanted to install to check it out. Very happy!
      by
      1 found this review helpful
      • Verified Purchase
      • Verified Purchase
      Rating provided by a verified purchaser...
      Rating provided by a verified purchaser
      by
      • Verified Purchase
      Rating provided by a verified purchaser...
      Rating provided by a verified purchaser
      by
      • Verified Purchase
      Rating provided by a verified purchaser...
      Rating provided by a verified purchaser
      by
      • Verified Purchase
      While I have not completely installed it yet, it appears...
      While I have not completely installed it yet, it appears to be a solid product. The installation document is a little confusing but watching Homacer's video makes it easier to grasp. I'm building my own barn doors!
      by
      • Verified Purchase
