Model # EI600WC

Internet #203954897

Store SO SKU #1000504686

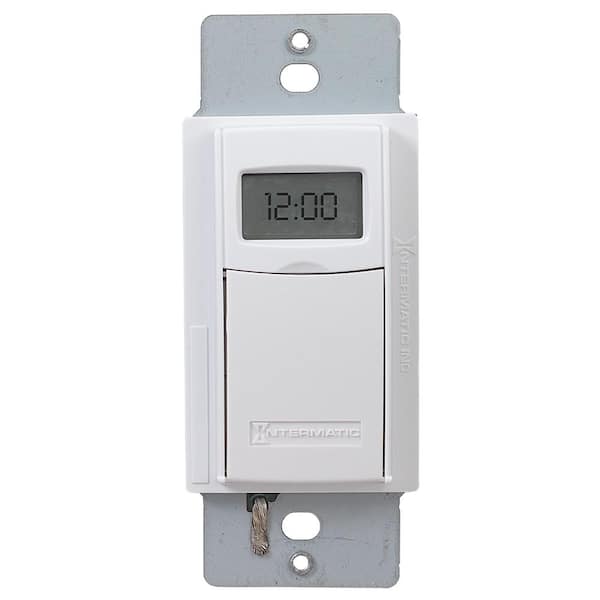

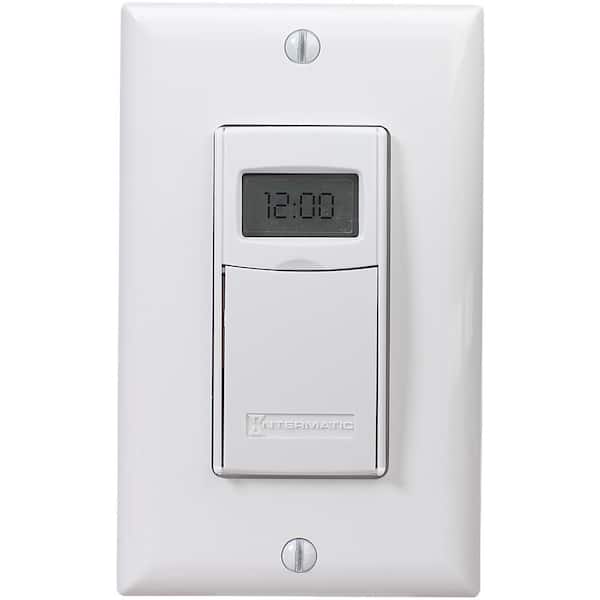

Intermatic 15 Amp In-Wall Heavy Duty Astronomic Digital Timer
0078275101418

Intermatic

15 Amp In-Wall Heavy Duty Astronomic Digital Timer

  • Random setting uses slightly different times each day
  • Auto daylight saving time adjustment
  • Compatible with incandescent, fluorescent, CFL and LED lights
$ 43 13
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Random setting uses slightly different times each day
  • Auto daylight saving time adjustment
  • Compatible with incandescent, fluorescent, CFL and LED lights
When you desire versatility, choose this heavy duty in-wall Astro timer by Intermatic. It controls AC and DC up to 277-Volt and has an astronomic feature which can be combined with specific ON/OFF programming. Convenient program capabilities are designed to suit any lighting schedule.
  • No neutral required
  • Random setting turns lights on and off at slightly different times each day
  • Auto daylight saving time adjustment
  • Compatible with incandescent, fluorescent, CFL and LED lights
  • Auto adjusts to all voltages/frequencies
  • Single pole or 3-way compatible
  • CR2 lithium battery provides backup 2+ years
  • Tungsten (incandescent) switch rating: 15 Amp 120-Volt; 6 Amp 208-277-Volt
  • Ballast (fluorescent) switch rating: 16 Amp 120-277-Volt
  • Motor switch rating: 1HP 120-Volt; 2HP 240-Volt
  • DC loads switch rating: 12-Volt DC 4 Amp; 28-Volt DC 2 Amp
  • Do not use for Sunlamps, Sauna, etc.
  • Meets CEC title 24 requirements
  • Manual override
  • Low battery indicator
  • Click here for more information on Electronic Recycling Programs

Product Overview

  • Random setting uses slightly different times each day
  • Auto daylight saving time adjustment
  • Compatible with incandescent, fluorescent, CFL and LED lights
Model #: EI600WC
Internet #: 203954897

When you desire versatility, choose this heavy duty in-wall Astro timer by Intermatic. It controls AC and DC up to 277-Volt and has an astronomic feature which can be combined with specific ON/OFF programming. Convenient program capabilities are designed to suit any lighting schedule.

  • No neutral required
  • Random setting turns lights on and off at slightly different times each day
  • Auto daylight saving time adjustment
  • Compatible with incandescent, fluorescent, CFL and LED lights
  • Auto adjusts to all voltages/frequencies
  • Single pole or 3-way compatible
  • CR2 lithium battery provides backup 2+ years
  • Tungsten (incandescent) switch rating: 15 Amp 120-Volt; 6 Amp 208-277-Volt
  • Ballast (fluorescent) switch rating: 16 Amp 120-277-Volt
  • Motor switch rating: 1HP 120-Volt; 2HP 240-Volt
  • DC loads switch rating: 12-Volt DC 4 Amp; 28-Volt DC 2 Amp
  • Do not use for Sunlamps, Sauna, etc.
  • Meets CEC title 24 requirements
  • Manual override
  • Low battery indicator
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$38.00
$43.13
$55.00
$70.00
Name 15 Amp Astronomic Digital In-Wall Timer - White 15 Amp In-Wall Heavy Duty Astronomic Digital Timer Ascend™ Standard 15 Amp 7-Day Indoor Programmable In-Wall Timer with Auto DST and Astro ON/OFF in White Ascend Smart Wi-Fi 15 Amp 7-Day Indoor Programmable In-Wall Timer Works with Alexa, Auto DST and Astro ON/OFF in White
Brand Intermatic Intermatic Intermatic Intermatic
Ratings (170) (72) (7) (15)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
1.813 in
Product Height (in.)
4.125 in
Product Width (in.)
1.75 in

Details

Amperage (amps)
15
Color Family
White
Color/Finish
White
Compatible Bulb Type
CFL,Incandescent,LED
Electrical Features
Programmable
Electrical Product Type
Timer
Indoor/Outdoor
Indoor
Maximum time setting (min.)
1439
Mounting Type
In-Wall
Rating
General Purpose
Returnable
90-Day
Style
Digital
Timer Type
Astronomical,Digital
Voltage
120 volt
Wattage (watts)
1800

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
5-year limited

Specifications

Dimensions

Product Depth (in.)
1.813 in
Product Height (in.)
4.125 in
Product Width (in.)
1.75 in

Details

Amperage (amps)
15
Color Family
White
Color/Finish
White
Compatible Bulb Type
CFL,Incandescent,LED
Electrical Features
Programmable
Electrical Product Type
Timer
Indoor/Outdoor
Indoor
Maximum time setting (min.)
1439
Mounting Type
In-Wall
Rating
General Purpose
Returnable
90-Day
Style
Digital
Timer Type
Astronomical,Digital
Voltage
120 volt
Wattage (watts)
1800

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
5-year limited

Questions & Answers

Is there supposed to be a blue display light as shown in the picture? If so, how is it programed ...

Is there supposed to be a blue display light as shown in the picture? If so, how is it programed to turn on.
Asked by: bo
Mine does not have a blue display lightJ
Answered by: HomeDepotCustomer
Date published: 2018-04-28

How can you turn the lights off if the timer is programmed such that the lights should be on?

Asked by: Karen
Just push on the front plate. This will manually operate the switch.
Answered by: Al
Date published: 2018-03-01

How do I program timer

How do I program timer
Asked by: Liz
A complete installation guide and usage manual can be viewed via a link on the right-hand side of the product page in order to help you determine if this product will suit your project needs.
Answered by: CommunityAnswer
Date published: 2018-11-14

Does this unit fit in a duplex sized electrical box? Other units were either too deep for the box, or too fat fat to allow other switches in the box

Asked by: Phil
IMine is installed in a duplex box. It isn't too fat but you do have to move the wires around a little to sit them both in there.
Answered by: jillar
Date published: 2016-05-21
  • y_2019, m_1, d_23, h_9CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_42
  • loc_, sid_203954897, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 27ms
  • QUESTIONS, PRODUCT

Customer Reviews

15 Amp In-Wall Heavy Duty Astronomic Digital Timer is rated 4.4 out of 5 by 72.
Rated 4 out of 5 by from The instructions weren't clear on wiring a 3 way switch... The instructions weren't clear on wiring a 3 way switch but the mfg had an excellent U-Tube vedio. The jumper wire was not included in the box as required.Unit is operating as designed.
Date published: 2019-01-01
Rated 5 out of 5 by from We just installed three of these switches to control lights... We just installed three of these switches to control lights in our house when we are away from home. They work excellently. You can manually turn your lights on and off without turning the automatic timer off or altering your timer schedule. They work effortless with your lifestyle.
Date published: 2018-12-19
Rated 5 out of 5 by from Simple to install and so far has worked perfectly. ... Simple to install and so far has worked perfectly. Really like the ability to set on time at dusk for outdoor lights. That and it's got a battery backup to retain your programming in power outages.
Date published: 2018-08-21
Rated 1 out of 5 by from Product was inoperative upon arrival. Returned to local store... Product was inoperative upon arrival. Returned to local store
Date published: 2018-08-14
Rated 1 out of 5 by from This timer was fairly easy to install and program if you follow the directions correctly. But the... This timer was fairly easy to install and program if you follow the directions correctly. But the problem is that mine failed at least once a month by spontaneously clearing its own memory. Re-programing is time consuming as well as a hassle because my eight, 15-watt fluorescent outside security lights would not work when I depended on them. Assuming the battery may be defective I purchased new very expensive batteries twice. Beware of this product
Date published: 2018-05-14
Rated 4 out of 5 by from Switch is great. Dissapointed in the Home Depot advertising. The picture implies the switch has a... Switch is great. Dissapointed in the Home Depot advertising. The picture implies the switch has a blue back light display, when in fact it does not. Hence the 4 stars. Not for the switch but for Home Depot for portraying it falsely.
Date published: 2018-03-20
Rated 1 out of 5 by from Instructions which should be easier seem to be clear yet... Instructions which should be easier seem to be clear yet the timers do not work correctly. You will be the first to know when they do.
Date published: 2018-02-14
Rated 5 out of 5 by from Ordered one for the front porch light a year ago.... Ordered one for the front porch light a year ago. It works great, so I ordered another one for the rear porch light. It also works great.
Date published: 2018-01-12
