Internet #205878321

Model # T174R

0078275174221

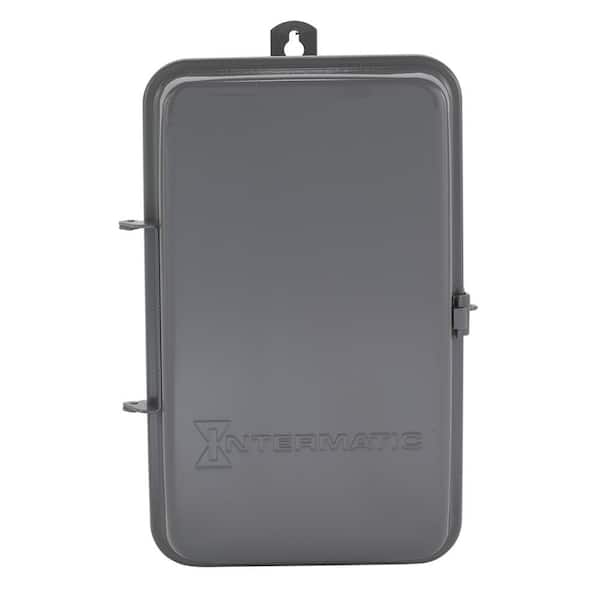

T170 Series 40 Amp 24-Hour Mechanical Time Switch with Skipper and Outdoor Enclosure - Gray

  • Up to 10 On/Off operations each day
  • Minimum On/Off times of 1 hour
  • Includes 1 on tripper, 1 off tripper and 3 day-skipper screws
$ 151 67
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Up to 10 On/Off operations each day
  • Minimum On/Off times of 1 hour
  • Includes 1 on tripper, 1 off tripper and 3 day-skipper screws
Within both home and work environments, Intermatic has been a leader in innovation for timing, switches and energy controls for more than 120 years. The T170 Series Mechanical 24-Hour Time Switches are designed for commercial, industrial and residential applications. The Skipper feature enables users to omit operation on selected days of the week.
  • Up to 10 on/off operations each day
  • Minimum on/off times of 1 hour
  • Manual override
  • Includes 1 on tripper, 1 off tripper and 3 day-skipper screws
  • Type 3R steel outdoor enclosure

Product Overview

  • Up to 10 On/Off operations each day
  • Minimum On/Off times of 1 hour
  • Includes 1 on tripper, 1 off tripper and 3 day-skipper screws
Model #: T174R
Internet #: 205878321

Within both home and work environments, Intermatic has been a leader in innovation for timing, switches and energy controls for more than 120 years. The T170 Series Mechanical 24-Hour Time Switches are designed for commercial, industrial and residential applications. The Skipper feature enables users to omit operation on selected days of the week.

  • Up to 10 on/off operations each day
  • Minimum on/off times of 1 hour
  • Manual override
  • Includes 1 on tripper, 1 off tripper and 3 day-skipper screws
  • Type 3R steel outdoor enclosure

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Intermatic Intermatic Intermatic Intermatic
Name T101R3 40 Amp 24-Hour Mechanical Time Switch with Outdoor Steel Enclosure - Gray T170 Series 40 Amp 24-Hour Mechanical Time Switch with Skipper and Outdoor Enclosure - Gray T7000B Series 40 Amp 7-Day Mechanical Time Switch with Outdoor Enclosure - Gray T1970 Series 20 Amp 24-Hour Mechanical Time Switch with Skipper and Steel Outdoor Enclosure - Gray
Price
$93.95
$151.67
$178.46
$183.93
Ratings (1) (0) (0) (0)
Wattage (watts) 5000 8320 5000 5000
Amperage (amps) 40 40 40 20
Electrical Features Programmable Programmable Programmable Programmable
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
3.625
Product Height (in.)
9.375
Product Width (in.)
5.5

Details

Amperage (amps)
40
Color Family
Gray
Color/Finish
Gray/Metal
Compatible Bulb Type
CFL,Incandescent,LED
Electrical Features
Programmable
Electrical Product Type
Timer
Indoor/Outdoor
Indoor,Outdoor
Maximum time setting (min.)
1440
Mounting Type
Surface Mount,Wall Mounted
Outdoor Lighting Features
Timer,Weather Resistant
Rating
Tamper Resistant,Weather Resistant
Returnable
90-Day
Style
Dial
Timer Type
Mechanical
Voltage
208 volt,277 volt
Wattage (watts)
8320

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
1 year

Specifications

Dimensions

Product Depth (in.)
3.625
Product Height (in.)
9.375
Product Width (in.)
5.5

Details

Amperage (amps)
40
Color Family
Gray
Color/Finish
Gray/Metal
Compatible Bulb Type
CFL,Incandescent,LED
Electrical Features
Programmable
Electrical Product Type
Timer
Indoor/Outdoor
Indoor,Outdoor
Maximum time setting (min.)
1440
Mounting Type
Surface Mount,Wall Mounted
Outdoor Lighting Features
Timer,Weather Resistant
Rating
Tamper Resistant,Weather Resistant
Returnable
90-Day
Style
Dial
Timer Type
Mechanical
Voltage
208 volt,277 volt
Wattage (watts)
8320

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
1 year

Questions & Answers

I have a T171 timer.What takes place, mechanically,I mean,when the on trigger lines up with the on time,to turn power on

Asked by: Perry
The ON and OFF trippers push against opposing lobes of a metal cam behind the dial, this cam is connected to an over-center spring/lever arrangement that, in turn,actuates an insulated drawbar that moves the contact set to open (OFF) and close (ON) the electrical circuit. The ON tripper engages the inner lobe of the cam (toward the hub of the dial) and the OFF tripper engages the outer lobe of the cam (toward the rim of the dial). This back-and-forth action is what switches the timer ON and OFF. Note that the manual lever is connected to the cam plate and performs the same actions as, and in parallel with, the trippers - for this reason it is not possible to manually change the state of the timer while a tripper is engaged with the cam.
Answered by: Intermatic Technical Support
Date published: 2015-12-18
