Model #THDJW141900001

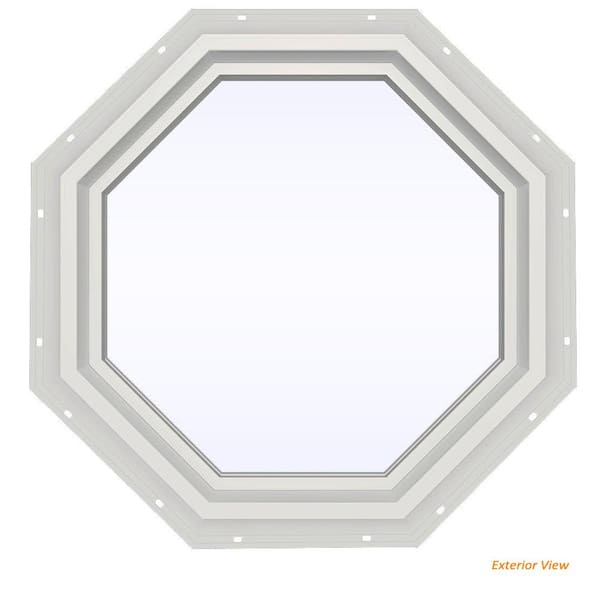

23.5 in. x 23.5 in. V-4500 Series White Vinyl Fixed Octagon Geometric Window w/ Low-E 366 Glass

  • White vinyl octagon window includes removable nail fin frame
  • Vinyl picture window comes with energy efficient Low-E 366 glass
  • Includes accidental glass breakage warranty
  • See More Details

Frequently Bought Together

+
Price:

Product Overview

A masterpiece unto itself, the JELD-WEN V-4500 Fixed Octagon Window frames a home like no other. With a simple, elegant design, this non-opening window brings the outside in with efficiency and style. It's sure to become a focal point in any home. If you want incredible views, ample light and excellent energy efficiency, the V-4500 Fixed Octagon Window is the one you're looking for. And with its durability and low maintenance, it's a window to be enjoyed for years to come.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shaped Windows

current product
23.5 in. x 23.5 in. V-4500 Series White Vinyl Fixed Octagon Geometric Window w/ Low-E 366 Glass
24.5 in. x 24.5 in. Clear Glass Round Picture Vinyl Window with Platinum Cross Design, White23.5 in. x 23.5 in. V-4500 Series Desert Sand Vinyl Fixed Octagon Geometric Window with Colonial Grids/Grilles24 in. x 24 in. Octagon White 4-9/16 in. Jamb 9-Lite Grille Geometric Aluminum Clad Wood Window
BrandJELD-WENTAFCO WINDOWSJELD-WENFrontLine
Name23.5 in. x 23.5 in. V-4500 Series White Vinyl Fixed Octagon Geometric Window w/ Low-E 366 Glass24.5 in. x 24.5 in. Clear Glass Round Picture Vinyl Window with Platinum Cross Design, White23.5 in. x 23.5 in. V-4500 Series Desert Sand Vinyl Fixed Octagon Geometric Window with Colonial Grids/Grilles24 in. x 24 in. Octagon White 4-9/16 in. Jamb 9-Lite Grille Geometric Aluminum Clad Wood Window
Price
Ratings
(28)
(30)
(0)
(1)
ShapeOctagonRoundOctagonOctagon
Window Use TypeNew Construction,ReplacementNew Construction,ReplacementNew Construction,ReplacementNew Construction,Replacement
FeaturesArgon Gas Insulated,Integrated Nail FinNo Additional FeaturesArgon Gas Insulated,Integrated Nail FinIntegrated Nail Fin,Paintable/Stainable
Glazing TypeDouble-PaneTriple-PaneDouble-PaneDouble-Pane
Frame MaterialVinylVinylVinylAluminum
Width (in.) x Height (in.)23.5 x 23.524 x 2423.5 x 23.524 x 24
Window TypeGeometric,PictureGeometricGeometric,PictureGeometric
Product Width (in.)23.52423.524
View ProductView ProductView ProductView Product

Specifications

Dimensions

Grid Width (in.)
None
Jamb Depth (in.)
3.25
Product Depth (in.)
3.25
Product Height (in.)
23.5
Product Width (in.)
23.5
Rough Opening Height (In.)
24
Rough Opening Width (In.)
24
Width (in.) x Height (in.)
23.5 x 23.5

Details

Exterior Color/ Finish
White
Exterior Color/Finish Family
White
Features
Argon Gas Insulated,Integrated Nail Fin
Frame Material
Vinyl
Frame Type
Nail Fin
Glass Type
Energy Efficient Glass,Low-E Glass
Glazing Type
Double-Pane
Grid Pattern
No Grid
Grille Type
No Grille
Hardware Color/Finish Family
White
Included
No Additional Items Included
Interior Color/Finish Family
White
Lock Type
No Lock
Number of Grids
No Grid
Number of Locks
None
Product Weight (lb.)
12
Returnable
90-Day
Shape
Octagon
Solar Heat Gain Coefficient
.24
U-Factor
.26
Window Type
Geometric,Picture
Window Use Type
New Construction,Replacement

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
Lifetime Limited

Questions & Answers

24Questions18Answers

Hello, Is this window a replacement window or is it intended to be used for new construction?

Asked by Abby May 16, 2020
1
Answer

Dear Valued Home Depot Customer, To better answer your question, please contact our HD.com customer service department at 800-430-3376 call any day between 6 a.m. and 2 a.m. EST, or call your local store, they can either answer your question or transfer you to your local store to answer your specific question.

I own a townhouse and hoa is requiring tempered glass. I can't see anywhere that says it is tem...

Asked by Gabsmom January 25, 2020
1
Answer

Thank you for your inquiry. None of the online windows will have tempered. Please visit your local Home Depot for further assistance with ordering a window with tempered glass.

Measuring from the inside, what is the horizontal width of the insulated glass unit in the window...

Asked by mj July 5, 2019
1
Answer

Horizontal width is 20"

Is this a window that you would use to put into an existing house? They will be cutting a new hol...

Asked by morkieowner February 6, 2019
3
Answers

Yes you can use it anywhere

I would like to attach a custom stained glass window to the inside and need to know the measurements of the glass itself

Asked by Gib January 2, 2019
1
Answer

Thank you for a good question. This v4500 vinyl fixed octagon window installs in an octagon shaped rough opening that measures 36 inches wide by 36 inches height. The net frame size of this octagon shaped vinyl window measures 35 1/2 inches wide by 35 1/2 inches height. The daylight measurement of the glass (visible glass) only in the octagon shaped frame is 3 3/8 inches smaller than the net frame size dimensions. Therefore the visible glass measurement of this octagon shaped window measures 32 1/8 inches wide by 32 1/8 inches height. Typical size tolerance may vary by +/- 1/8". If you are interested in more details related to the specifications of size on this window, please follow this link to our website: https://alfresco-docs-prod.s3.us-east-2.amazonaws.com/2772/JW_Win_Premium_Vinyl_Picture_ADM.pdf

i ordered new jeld wen octagon windows to replace my old ones.with 2x4 walls and 1/2 inch sheetin...

Asked by bluegill June 16, 2018
1
Answer

Thank you for allowing us to assist you today. This v4500 vinyl octagon window is made to install in a new construction framed rough opening that measures in an octagon shape 24 inches wide by 24 inches height. The installation of this window is facilitated by the integral frame nail on fin that comes as standard with the window. If you have a JELD-WEN window that is new construction nail fin, fin-less, flush fin, flat casing, brickmould, or j-channel, recommendations for installation instructions are on our website at this link: http://www.jeld-wen.com/en-us/product-support/documents/installation-instructions#category_s=Windows&material_s=Vinyl&paginate%5Bstart%5D=0&paginate%5Bcount%5D=20&paginate%5Bsort_field%5D=title_s&paginate%5Bsort_dir%5D=asc&product_line_s=Premium+Vinyl&product_type_s=Fixed+/+Radius+/+Geometric

Is this window TDI approved?

Asked by Con4fun April 20, 2018
2
Answers

No, this window is not TDI certified.

What side goes where the deep inside or the deep side outside

Asked by Josh April 6, 2018
6
Answers

The deep outside

Is this window texas windstorm approved? I looked up the jeld-wen v-4500 windows on the tdi.texa...

Asked by moosgang January 27, 2018
1
Answer

Thank you for your inquiry. This v4500 vinyl fixed octagon window as offered on www.homedepot.com is supplied with a certification: US National-AAMA PG35; Design Pressure Rating (DP Rating) of DP+35/-35. Design pressure rating is a measure of a products capacity to withstand both negative and positive wind-load pressure. For areas exposed to high hurricane force winds, we would not recommend this window. Please consult your local building codes for what DP Rating is required in the area you are planning to use a new window. We do offer products that feature higher DP Ratings and qualify for TDI certification through the special order catalog program. If you are interested please visit a Home Depot near you and have a helpful millwork associate assist you.

From the window's description: "Pre-painted windows have colored exteriors and white interiors; d...

Asked by deano December 14, 2017
1
Answer

Thank you for your interest. The JELD-WEN v4500 series vinyl windows & sliding patio doors may have exterior colors painted on either white interior or desert sand interior products. The options available on-line with www.homedepot.com are typically all exterior colors on white interior only. If you would like to have the painted exterior on desert sand interior, please visit a Home Depot store near you and ask a millwork associate to use the in-store special order catalog to quote and order what you like.
