47.5 in. x 47.5 in. V-2500 Series White Vinyl Fixed Octagon Geometric Window w/ Low-E 366 Glass
- White vinyl octagon window includes removable nail fin frame
- Vinyl picture window comes with energy efficient Low-E glass
- Includes accidental glass breakage warranty
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Sometimes, the best way to get noticed is to stay out of the way. The JELD-WEN V-2500 Fixed Octagon Window accomplishes that with sleek, fluid lines and construction that's designed to last. This non-opening window pairs beautifully with any decor, providing both a light source and visual centerpiece. Choosing a fixed octagon window with energy-efficient glass helps keep the heat on the inside during cold weather and outside during hotter weather, providing greater savings and comfort. This is one window you won't want to overlook.
Highlights
- Industry-leading lifetime limited warranty
- Accidental glass breakage coverage
- Low-maintenance, durable vinyl for long-term use
- Ideal for new construction or replacement window projects
- Perfect for spaces in your home that need more light
- Chestnut bronze and dark chocolate exterior colors are only available with white interior window color
- Click here to find colored caulk to match your window, door, or siding job
- Click here to find colored caulk to match your window, door, or siding job
- PROFESSIONAL WINDOW INSTALLATION - CALL 1-855-892-4386 to get started with a free in-home consultation or learn more about our trusted window installations service.
- Click here to learn more about Eco Options and Energy Efficiency
- Click here to learn more about Eco Options and Energy Efficiency
- Shop All Jeld Wen Windows Here
- Shop All Jeld Wen Vinyl Windows Here
- Shop All Jeld Wen Vinyl Windows Here
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 47.5 in, W 47.5 in, D 2.905 in
Dimensions
Jamb Depth (in.) | 2.905 in |
|---|---|
Product Depth (in.) | 2.905 in |
Product Height (in.) | 47.5 in |
Product Width (in.) | 47.5 in |
Rough Opening Height (in.) | 48 in |
Rough Opening Width (in.) | 48 in |
Width (in.) x Height (in.) | 47.5 x 47.5 |
Details
Exterior Color/Finish Family | White |
|---|---|
Features | Argon Gas Filled, Integrated Nail Fin |
Frame Material | Vinyl |
Frame Type | Nail Fin |
Glass Type | Energy Efficient Glass, Insulated Glass, Low-E Glass |
Glazing Type | Double-Pane |
Grid Pattern | No Grid |
Included | No Additional Items Included |
Interior Color/Finish Family | White |
Product Weight (lb.) | 46 lb |
Returnable | 90-Day |
Shape | Octagon |
Solar Heat Gain Coefficient | 0.24 |
U-Factor | 0.26 |
Window Use Type | New Construction, Replacement |
Warranty / Certifications
Energy Star Qualified | Not Qualified |
|---|---|
Manufacturer Warranty | Lifetime Limited |
Questions & Answers
What is the size of the actual window, without the white frame around it?
Dear Valued Home Depot Customer, to better answer your question, please contact our HD.com customer service department at 1-800-466-3337, call any day between 6 a.m. and 2 a.m. EST, they can either answer your question or transfer you to your local store to answer your specific question.
See side picture of window
Dear Valued Home Depot Customer, to better answer your question, please contact our HD.com customer service department at 1-800-466-3337, call any day between 6 a.m. and 2 a.m. EST, they can either answer your question or transfer you to your local store to answer your specific question.
On the 35.5 x 34.5” version, what is the length of each of the sides?
Thank you for your inquiry. The size you are asking about is a custom size and will have to be special ordered. The sides won't all be even, there will be three different dimensions. Two sides will measure 15 5/16", three sides will measure 14 9/32" and three sides will measure 14 5/16". For the window shown on this page, the sides will all be the same, measuring 14 11/16".
This Jeld- wen 24” x 24” octagon window. It is a v2500 series with low e glass says that it has nailing fins on window for new construction or replacement. I am going to use window for replacement so are nailing fins removable? Thanks,Ron
The fins are required for installation. Mike
On the 47.5 x 47.5. Rough opening is 48. Are all sides equal and what would the measurement be?
Thank you for your inquiry. On this configuration, all sides are equal and measure 19.6875".
Does it come with trim casing for inside?
Thank you for your inquiry. As configured, this window does not come with any interior trim. To inquire about interior trim for this window, please contact our HD.com customer service department at 1-800-466-3337, call any day between 6 a.m. and 2 a.m. EST, then can either answer your question or transfer you to your local store to answer your specific question.
Does it have J channel for siding?
Thank you for your interest. This window installs in a new construction framed rough opening that measures as an octagon shape 36 inches across and 36 inches vertically. The installation is performed using integral nail fin. The window does not feature j-channel for siding as many installers use other exterior trim or j-channel supplied with siding systems. We do offer some exterior accessories to apply to this window. We also regionally offer a version of this window that features an integral brickmould with nail fin that is precisely for this purpose too. If you are interested in the optional trim or brickmould products, please visit a Home Depot store so an associate may special order quote and order what you need.
Do you have a 23.5 inch, octagon, operable window?
Thank you for a good question. This octagon window is fixed only and does not have an option to operate. All our fixed rectangle, angle, and radius windows are supplied this same way currently.
Viewing 1-8 of 9
Customer Reviews
4.1 out of 5
5
9
4
1
3
2
2
0
1
2
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for new construction or replacement projects needing more light with energy-efficient Low-E glass. | Perfect for homeowners looking for energy-efficient windows, making temperature regulation easier and more efficient. | Perfect for upgrading homes with a stylish octagon window, adding architectural flair and energy efficiency. | Perfect for upgrading homes with a stylish octagon window, adding architectural flair and natural light. Ideal for those wanting energy efficiency and low maintenance. |
Energy Efficiency Rating | |||
Low-E | Low-E coating | U-Factor: 0.50, SHGC: 0.68 | U-Factor: 0.50, SHGC: 0.68 |
Glass Type | |||
Double-Pane | Double-Pane | Double-Pane | Double-Pane |
Frame Material | |||
Vinyl | Vinyl | Aluminum, Wood | Aluminum Clad Wood |
Custom Sizing Available | |||
Built-in Grilles | |||
Related Products

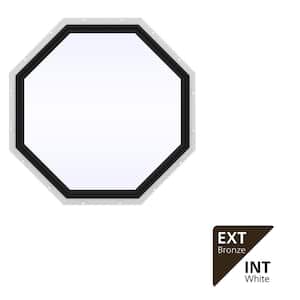

48 in. x 48 in. V-2500 Series Bronze Exterior/White Interior FiniShield Vinyl Fixed Octagon Window w/ Low-E 366 Glass
FiniShield, JELD-WEN's exterior color finish technology for vinyl windows and patio doors. FiniShield is superior to traditional paint in appearance, quality, and longevity. FiniShield stands up to scratches, won't crack or peel, and eliminates color variance across multiple window units.
47.5 in. x 47.5 in. V-2500 Series White Vinyl Fixed Octagon Geometric Window with Colonial Grids/Grilles
Sometimes, the best way to get noticed is to stay out of the way. The JELD-WEN V-2500 Fixed Octagon Window accomplishes that with sleek, fluid lines and construction that's designed to last. This non-opening window pairs beautifully with any decor, providing both a light source and visual centerpiece. Choosing a fixed octagon window with energy-efficient glass helps keep the heat on the inside during cold weather and outside during hotter weather, providing greater savings and comfort. This is one window you won't want to overlook.

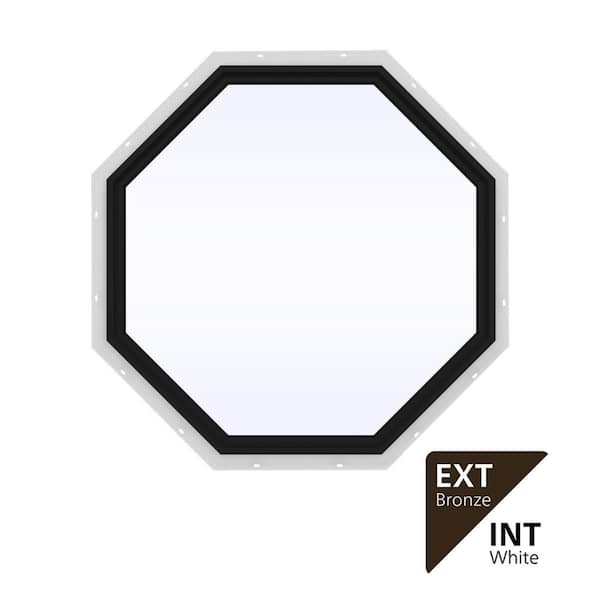

48 in. x 48 in. V-4500 Series Bronze Exterior/White Interior FiniShield Vinyl Fixed Octagon Window w/ Low-E 366 Glass
FiniShield, JELD-WEN's exterior color finish technology for vinyl windows and patio doors, is superior to traditional paint in appearance, quality, and longevity. FiniShield stands up to scratches, won't crack or peel, and eliminates color variance across multiple window units.

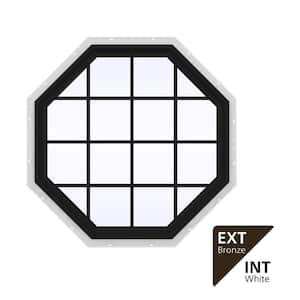

48 in. x 48 in. V-2500 Series Bronze FiniShield Vinyl Fixed Octagon Geometric Window with Colonial Grids/Grilles
