25 in./50 in. Drum Sander with Open Stand, 115-Volt JWDS-2550

$2299.99
Apply Now
$undefined.00 /mo** suggested payments with months** financingApply Now
  • Mirrored hood and 4 in. port collect dust effectively
  • Sandsmart control maintains optimal feed rate without overloading
  • Aluminum drum dissipates heat for surface protection
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Introducing the new JWDS-2550 Drum Sander from Jet. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The Jet JWDS-2550 Drum Sander delivers everything you need for an effortless finish.

Highlights

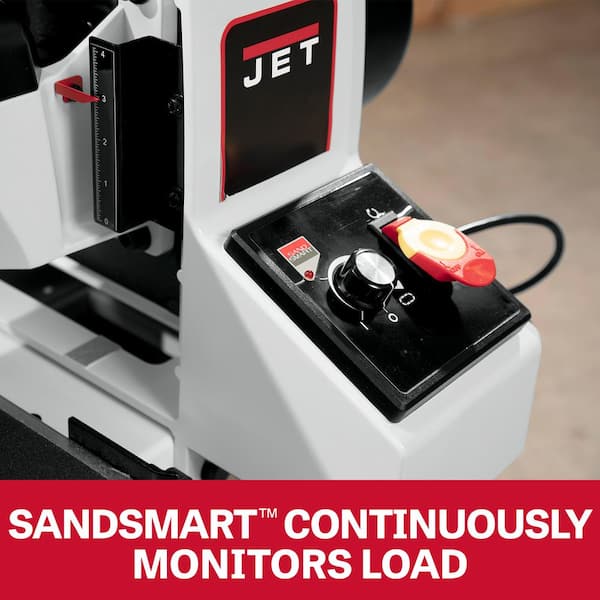

  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 in. collection port
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Precision-flattened reinforced steel conveyor bed
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing
  • 1 rotation of the top-position handwheel adjusts the drum height by 1/16 in.
  • Relative depth scale on the handwheel allows the user to reset and measure the depth for every project
  • Infinitely variable speed control of up to 10 ft. per minute allows the user to choose the optimal feed rate
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 314440307

Model # 723550OSK

Additional Resources

Shop All Jet

Specifications

Dimensions: H 52 in, W 24 in, D 45 in

Dimensions

Belt length (in.)

36 in

Belt width (in.)

26 in

Maximum feed height (in.)

4

Minimum feed height (in.)

.0312

Product Depth (in.)

45 in

Product Height (in.)

52 in

Product Width (in.)

24 in

Work Table Length (in.)

21.75 in

Work Table Width (in.)

26 in

Details

Amperage (A)

15 A

Battery Voltage (V)

115V

Bench & Stationary Tool Type

Drum Sander

Color Family

Gray

Condition

New

Cord Length (ft.)

6 ft

Dust collection type

Port

Maximum feed rate (ft./min.)

10

Maximum Speed (RPM)

1720 RPM

Portability

Stationary

Power Tool Features

Lockout Power Switch, Variable Speed

Product Weight (lb.)

260 lb

Reconditioned

No

Returnable

90-Day

Tools Product Type

Power Tool

Variable Speed

Yes

Voltage (V)

115 V

Warranty / Certifications

Certifications and Listings

No Certifications or Listings

Manufacturer Warranty

5 Year

Questions & Answers

6Questions
caret
Q:Looking at the Jet JWDS-2550. My question is what are the dimensions of the box it is shipped in as I will pick up from the Roanoke store,want to make sure it will fit in truck bed with cover closed
by|Jun 15, 2024
1 Answer
Answer This Question

A:  Thank you for your inquiry. This unit ships in two boxes. Shipping carton, base machine - 44-1/2 x 27-1/2 x 28-1/4 in. Shipping carton, open stand - 44 x 20 x 4-1/2 in. If you need anything further, please reach out to our Technical Support team at 800-274-6846 (M-F, 8AM to 5PM CST) we are happy to help.

by|Jun 17, 2024
    caret
    Q:I have seen a Jet 16/32 with an oscillating feature. Does the 25/50 also have an oscillating option?
    by|Apr 3, 2024
    1 Answer
    Answer This Question

    A:  Thank you for your inquiry. We currently offer a 2244 OSC https://jettools.com/jwds-2244osc-oscillating-drum-sander-with-closed-stand The 2550 does not, at this time. If you need anything further, please reach out to our Technical Support team at 800-274-6846 (M-F, 8 AM to 5 PM CST) we are happy to help.

    by|Apr 16, 2024
      caret
      Q:Is this a finish sander? Or do we have to additionally finish material with higher grit on a different tool? Reason why I ask this is because there was a review on a different website about the oscillating version leaving swirl marks.
      by|Feb 2, 2024
      0 Answer
      Answer This Question
      caret
      Q:What is the difference between the drum sanders that are both 25/50 ? One is $2199 and the other is $2299.
      by|May 30, 2023
      1 Answer
      Answer This Question

      A:  The cheaper one is 22 inches wide. So the difference is 3 inches.

      by|Jan 1, 2024
