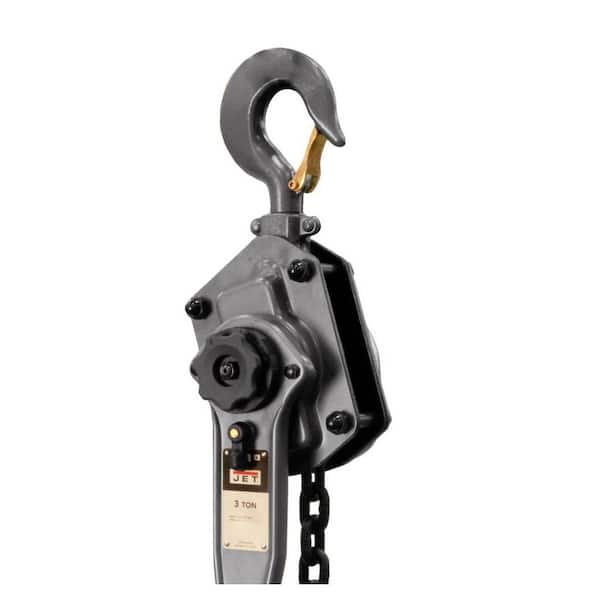

JLP-300A 3-Ton Lever Hoist with 20 ft. Lift

$59058
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
Store
0 in stock
Text to Me
How to Get It

Product Overview

Jet JLP-A Series lever hoists combine safety, reliability and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. Jet also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The Jet JLP-A lever hoist is available in ton to 6-Ton capacities with standard lifts of 5 ft., 10 ft., 15 ft. and 20 ft. (custom lifts available). The Jet JLP-A Series is the perfect choice for a contractor grade lever hoist.
  • Safety
  • Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
  • Jet's improved easy free chain design is a 2-step, no load, free chaining system, the system permits quicker hoist positioning and take up of slack chain and is engineered not to free chain under load
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
  • Industrial rated alloy steel hooks rotate 360 degree for easy rigging and slowly stretch to indicate an overload situation
  • Redesigned ergonomic grip allows for greater operator control and increased comfort
  • Durability
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • Optional shipyard hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
  • Grade 80 black oxide coated load chain for added durability
  • Load tested to 125% of capacity with certificate
  • California residents

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Engine Hoists

JLP-150A 1-1/2-Ton Lever Hoist with 15 ft. Lift
current product
JLP-300A 3-Ton Lever Hoist with 20 ft. Lift
L100-500WO-20, 5-Ton Chain Hoist 20 ft. Lift and Overload ProtectionAL100-500-20 5-Ton Hand Chain Hoist with 20 ft. of Lift
BrandJetJetJetJet
NameJLP-150A 1-1/2-Ton Lever Hoist with 15 ft. LiftJLP-300A 3-Ton Lever Hoist with 20 ft. LiftL100-500WO-20, 5-Ton Chain Hoist 20 ft. Lift and Overload ProtectionAL100-500-20 5-Ton Hand Chain Hoist with 20 ft. of Lift
Price
$41310
$59058
$125970
$129700
Ratings
(0)
(2)
(0)
(0)
Maximum Lift Height (in.)180240240240 in
Weight Capacity (lb.)3000 lb6000 lb1000 lb10000 lb
Chain pull to lift rated load (lb.)497151.382
IncludedChainChainChainChain
General Part TypeShop ToolsShop ToolsShop ToolsEngine Hoist
MaterialSteelSteelSteelAluminum
View ProductView ProductView ProductView Product

Specifications

Dimensions

Lever length (in.)
16.14
Product Depth (in.)
9.76 in
Product Height (in.)
18.89 in
Product Width (in.)
7.66 in

Details

Chain pull to lift rated load (lb.)
71
Color Family
Gray
Features
Swivel Load Hook
General Part Type
Shop Tools
Included
Chain
Manual Chain Hoist Type
Lever
Material
Steel
Maximum Lift Height (in.)
240
Mount type
Hook mount
Number of chain strands
1
Product Weight (lb.)
64.5 lb
Reconditioned
No
Returnable
90-Day
Spark-resistant chain
No
Weight Capacity (lb.)
6000 lb

Warranty / Certifications

Certifications and Listings
ANSI Compliant,ASME Code B30.16
Manufacturer Warranty
Lifetime
