Model # JS4BE-048KA

Internet #206084676

Store SO SKU #1001372045

Kelvinator 4 Ton 14 SEER R-410A Split System Package Air Conditioning System
0663132276943

Kelvinator

4 Ton 14 SEER R-410A Split System Package Air Conditioning System

  • Cooling system includes condenser, coil, and 30 ft. line set
  • Features scroll compressor and maintenance-free fan motor
  • AHRI matched system for residential applications
$ 3947 53
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Cooling system includes condenser, coil, and 30 ft. line set
  • Features scroll compressor and maintenance-free fan motor
  • AHRI matched system for residential applications

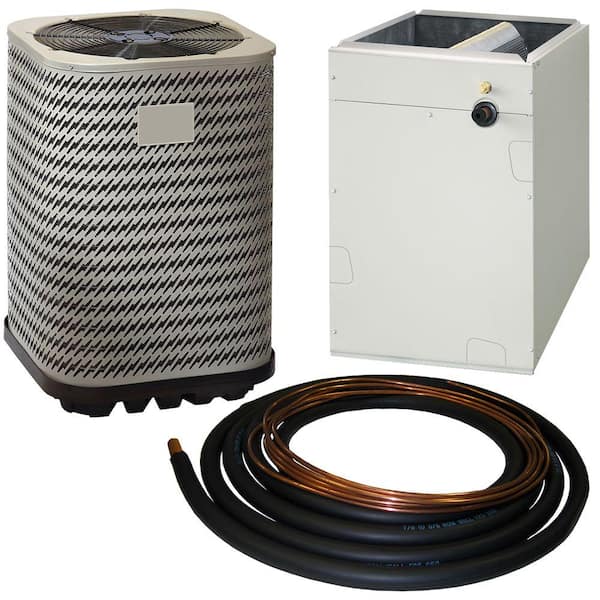

Keep your home cool and comfortable with this high quality and efficient 14 SEER central air conditioning system. This system is ideal for new or replacement residential or commercial applications, and is designed to be used with a new or existing A/C ready furnace. The system consists of the outdoor condenser, indoor cased coil, thermal expansion valve, and 30 ft. line set. The compact micro-channel condenser with top discharge features a scroll compressor, and is charged with enough ozone friendly R-410A refrigerant for 15 ft. of line set. The fully cased micro-channel coil is filled with dry nitrogen, and a thermal expansion valve is included for field installation to increase cooling efficiency by properly metering the refrigerant. The included line set with 3/8 in. liquid line and 7/8 in. insulated suction line is 30 ft. in length and may be cut to the desired length to customize the installation. The system is AHRI Certified and ETL Listed. Final connections from line set to coil and condenser must be done by a certified technician.
  • 240-volt, 48,000 BTU central air condition system includes a factory charged R-410A outdoor condenser, indoor fully cased evaporator coil, thermal expansion valve, and 30 ft. line set
  • Condenser has micro-channel coils made of aluminum which provide high corrosion resistance, plus the complete metal wrapper protects the condenser coil from yard hazards and extreme weather
  • Scroll compressor and no maintenance heavy duty PSC motor for long lasting reliability, quiet operation, and system efficiency
  • Indoor evaporator coil with micro-channel design is fully cased and accepts the included thermal expansion valve which must be field installed
  • 30 ft. line set includes 3/8 in. liquid line and 7/8 in. insulated suction line; may be cut to length in the field to customize installation
  • Designed to be used with a new or existing forced air A/C ready furnace; not for mobile home applications
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, and adherence to federal, state and local codes and for valid warranty; see installation guide for more details
  • Commercial warranty is 1 year parts and 5 years compressor with online registration within 60 days of installation; residential warranty is 10 years parts and compressor with online registration within 60 days of installation
  • Recommended for professional purchase only
  • Which type of air conditioner is best for your home?
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Cooling system includes condenser, coil, and 30 ft. line set
  • Features scroll compressor and maintenance-free fan motor
  • AHRI matched system for residential applications
Model #: JS4BE-048KA
Internet #: 206084676

Keep your home cool and comfortable with this high quality and efficient 14 SEER central air conditioning system. This system is ideal for new or replacement residential or commercial applications, and is designed to be used with a new or existing A/C ready furnace. The system consists of the outdoor condenser, indoor cased coil, thermal expansion valve, and 30 ft. line set. The compact micro-channel condenser with top discharge features a scroll compressor, and is charged with enough ozone friendly R-410A refrigerant for 15 ft. of line set. The fully cased micro-channel coil is filled with dry nitrogen, and a thermal expansion valve is included for field installation to increase cooling efficiency by properly metering the refrigerant. The included line set with 3/8 in. liquid line and 7/8 in. insulated suction line is 30 ft. in length and may be cut to the desired length to customize the installation. The system is AHRI Certified and ETL Listed. Final connections from line set to coil and condenser must be done by a certified technician.

  • 240-volt, 48,000 BTU central air condition system includes a factory charged R-410A outdoor condenser, indoor fully cased evaporator coil, thermal expansion valve, and 30 ft. line set
  • Condenser has micro-channel coils made of aluminum which provide high corrosion resistance, plus the complete metal wrapper protects the condenser coil from yard hazards and extreme weather
  • Scroll compressor and no maintenance heavy duty PSC motor for long lasting reliability, quiet operation, and system efficiency
  • Indoor evaporator coil with micro-channel design is fully cased and accepts the included thermal expansion valve which must be field installed
  • 30 ft. line set includes 3/8 in. liquid line and 7/8 in. insulated suction line; may be cut to length in the field to customize installation
  • Designed to be used with a new or existing forced air A/C ready furnace; not for mobile home applications
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation, and adherence to federal, state and local codes and for valid warranty; see installation guide for more details
  • Commercial warranty is 1 year parts and 5 years compressor with online registration within 60 days of installation; residential warranty is 10 years parts and compressor with online registration within 60 days of installation
  • Recommended for professional purchase only
  • Which type of air conditioner is best for your home?
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Evaporator height (in.)
30.25
Evaporator weight (lb.)
62
Evaporator width (in.)
21
Outdoor unit depth (in.)
30.75
Outdoor unit height (in.)
39
Outdoor unit width (in.)
30.75

Details

Air Conditioner Product Type
Whole House Unit
Amperage (amps)
45
BTU Cooling Rating
48000
Color
Sterling Grey
Color Family
Gray
Compressor
Scroll
Cooling
Single stage
Decibel (Sound) Rating
78 dBA
Decibel Rating
78 dBA
Evaporator depth (in.)
20.75
Fan-only option
No
Filter Type
No Filter
Filter light reminder
No
Nominal sound level (dB)
78
Number of Fan Speeds
1
Outdoor unit weight (lb.)
186
Remote Control
No
Returnable
90-Day
Self-diagnostic tools
No
Short cycle protection
No
Sleep setting
No
Voltage (volts)
240
Weather-resistant hardware
Yes
Whole House Air Conditioner Type
Split System

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
10 Year Parts and Compressor with Unit Registration
Seasonal Energy Efficiency Ratio (SEER)
14

Specifications

Dimensions

Evaporator height (in.)
30.25
Evaporator weight (lb.)
62
Evaporator width (in.)
21
Outdoor unit depth (in.)
30.75
Outdoor unit height (in.)
39
Outdoor unit width (in.)
30.75

Details

Air Conditioner Product Type
Whole House Unit
Amperage (amps)
45
BTU Cooling Rating
48000
Color
Sterling Grey
Color Family
Gray
Compressor
Scroll
Cooling
Single stage
Decibel (Sound) Rating
78 dBA
Decibel Rating
78 dBA
Evaporator depth (in.)
20.75
Fan-only option
No
Filter Type
No Filter
Filter light reminder
No
Nominal sound level (dB)
78
Number of Fan Speeds
1
Outdoor unit weight (lb.)
186
Remote Control
No
Returnable
90-Day
Self-diagnostic tools
No
Short cycle protection
No
Sleep setting
No
Voltage (volts)
240
Weather-resistant hardware
Yes
Whole House Air Conditioner Type
Split System

Warranty / Certifications

Certifications and Listings
ETL Listed
Manufacturer Warranty
10 Year Parts and Compressor with Unit Registration
Seasonal Energy Efficiency Ratio (SEER)
14

Questions & Answers

How big the house for this one?

Example: I have looked at the manual and can't figure out what I did wrong.
Asked by: Tv
2500sq. ft
Answered by: DCB
Date published: 2017-05-10

does this system come with inside air handler

does this system come with inside air handler
Asked by: lou
We can put that equipment combination together for you and help you to place your special order through the local store. The system you are inquiring about, however, does not include an handler or furnaces. Give us a call at 800-879-0123 so we can assist you.
Answered by: HHP Tech Support
Date published: 2017-04-03

is this system all electric

the heating part has to be all electric
Asked by: Go
This system contains the cooling components only. This system would require an electric or gas furnace to function as it uses the blower fan to circulate the air throughout the living space. Our 14 SEER Heat Pump Systems are offered online, and are the complete electric heating and cooling system. This system will offer 2 stages of heat and 1 stage of cool. Here is the link for the same ton size that you have inquired about (4 Ton): http://www.homedepot.com/p/Kelvinator-4-Ton-14-SEER-R-410A-Split-System-Package-Heat-Pump-System-JT4BE048KA/206084775?keyword=4+Ton+14+SEER+Heat+Pump+System If, however, you prefer an electric furnace with A/C, for a single stage heat and single stage cool operation, we can put that system together for you and work with your local store to have them place your order. If you have further questions, please contact one of our customer service representative at 800-879-0123.
Answered by: HHP Tech Support
Date published: 2016-09-21

Do you have people that will install it?

If so , I need new ducking as well as the install every thing I have now is 30 years old. can you give me a ruff figure on that?
Asked by: louis
The equipment is offered separate from it's installation so that you can arrange for installation yourself by contacting a local, qualified, and reputable technician. They will need to go to the job site to be able to accurately quote a price for installation and any duct modifications.
Answered by: HHP Tech Support
Date published: 2016-07-07
  • y_2019, m_1, d_21, h_17CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_, sid_206084676, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 32ms
  • QUESTIONS, PRODUCT

Customer Reviews

4 Ton 14 SEER R-410A Split System Package Air Conditioning System is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from It was one of the easiest orders I've ever had online had it shipped to the store picked it up on... It was one of the easiest orders I've ever had online had it shipped to the store picked it up on time we had it installed it works beautifully my older AC was running for instance 30 minutes on a real hot day for an hour now on a real hot day it will run only 10 minutes big savings on powered just the same
Date published: 2018-08-29
