Internet # 203499107

Model # 31868

$59.99
Apply Now
Pay $34.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Carbide Hole Cutter cuts material up to 3/16 in. thick
  • Cuts stainless steel, mild steel, iron, copper, and brass sheet
  • Perfect for 1-1/2 in. conduits and pipes
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

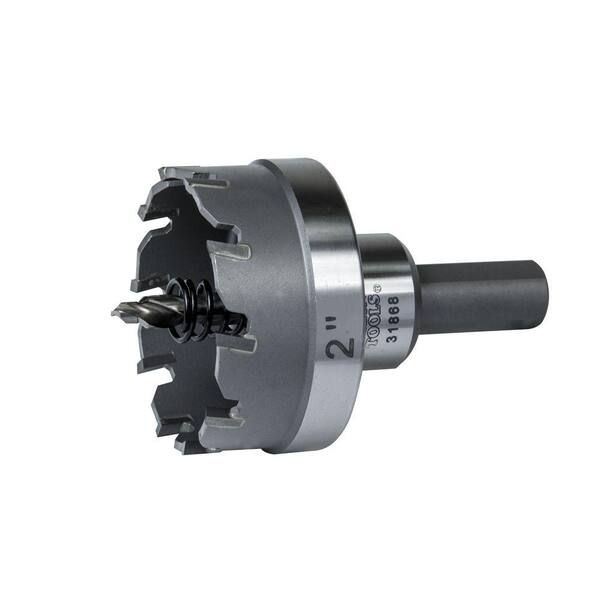

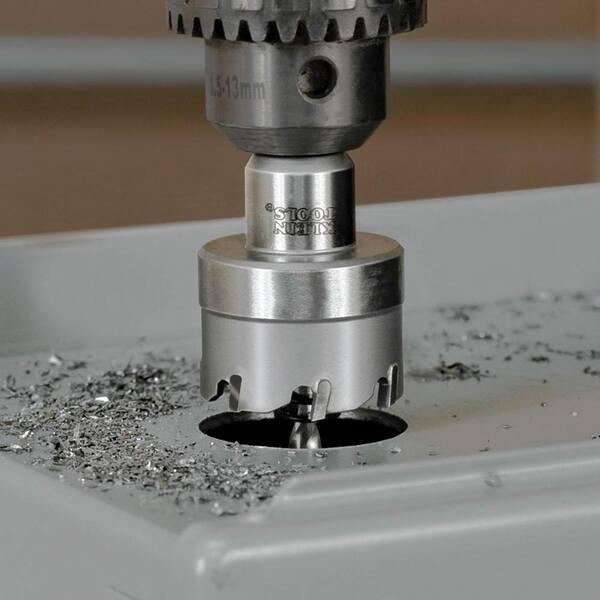

This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange prevents the operator from drilling beyond the sheet metal. Split point pilot drill bit prevents bit walking.

Highlights

  • Heavy duty, durable carbide hole cutters for long life
  • Cuts quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch (0.5 cm) thick
  • Split point pilot drill bit prevents bit walking
  • Integrated flange prevents the operator from drilling beyond the sheet metal
  • Conduit and pipe sizes: 1-1/2-Inch (3.8 cm)
  • Uses replacement pilot bit 31874
  • Click here for more Klein Tool products
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203499107

Model # 31868

Additional Resources

Shop All Klein Tools

Specifications

Dimensions

Bit Diameter

2 in

Bit Length (in.)

4.2

Drilling Depth (in)

0.63

Hole Saw Diameter (in)

2"

Shank Diameter

3/8 in

Details

Arbor included

Yes

Arbor Size

3/8

Bit Material

Carbide

Drill Bit Type

Hole Saw

Drill Bit Type(s) Included

Hole Saw

Individual/Set

Individual

Material Cut

Multi-Purpose

Min Chuck Size Required

3/8 In.

Pilot Bit Included

Yes

Returnable

90-Day

Shank Style

Hex

Teeth Per Inch

N/A

Tools Product Type

Power Tool

Questions & Answers

3Questions
caret
Q:Where is the nearest store that carries this drill bit my zip code 10704
by|Sep 23, 2019
1 Answer
Answer This Question

A:  Hello Eamon, It does not appear this item is carried at any of your local Home Depot stores. This can however be ordered and shipped directly to your local store for pickup! We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!

by|Oct 14, 2019
caret
Q:will this bit go through block walls
by|Mar 23, 2019
2 Answers
Answer This Question

A:  no. you will need a masonry bit. here is a link to one https://www.googleadservices.com/pagead/aclk?sa=L&ai=DChcSEwiWt6jvlZnrAhW6Fq0GHcKQDPgYABAPGgJwdg&ohost=www.google.com&cid=CAESQeD2-TjggK0Z-23hbmXP3d-NhW2YYiz0OiUFaP6U6XVJn3j9O9ZPXaLs2HLTVFbULww7RsoVK22jDvvK2nip8lCa&sig=AOD64_3_xcacPamIxVyx-JKkZDfTMyoJHQ&ctype=5&q=&ved=2ahUKEwiylqDvlZnrAhU_HjQIHeOMBQ4Q9aACegQIERBq&adurl=

by|Aug 13, 2020

    A:  The Klein Tools model # 31868 Carbide Hole Cutter is designed to cut quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16" thick.

    by|Jan 23, 2021
      caret
      Q:Will this fit in a 1/2" drill?
      by|Jul 12, 2017
      5 Answers
      Answer This Question

      A:  Yes, It has a half inch shaft.

      by|Jan 23, 2024

      A:  Yes, best if used with a plug in drill.

      by|Nov 27, 2018
      1 found this answer helpful

      A:  yes it will and it will fit a 3/8 as well

      by|Nov 27, 2018
      1 found this answer helpful

      A:  Yes, it has a 1/2 inch shank.

      by|Nov 29, 2018

      A:  Yes, the Klein Tools model # 31866 Carbide Hole Cutter will fit in a ½” drill.

      by|Nov 15, 2018
        1 found this answer helpful
        Showing 1-3 of 3

        Customer Reviews

        4.6 out of 5

        • 4.6 out of 18 reviews
        • 100% recommend this product
        Filter by:
        Showing 1-10 of 18 reviews
        This cutter is precise and very sharp. In fact, if you're careless enough, you just might get sli...
        This cutter is precise and very sharp. In fact, if you're careless enough, you just might get sliced. The box it comes in is convenient for storage, and also includes an allen wrench for switching out or sharpening the pilot bit. I did not notice much walking when starting the hole, but I would still recommend a spring punch for better accuracy; it's also easier to line up the hole since you'll feel a slight dip as it slips in. You will need a 1/2" chuck on your drill to fit the arbor. I assume most people will use this for thinner metals, but if you need to go through something thicker, then make sure to remove the spring before the first 1/8 inch or so, as it will work against you. It simply slips off and is surprisingly easy to remove; perhaps too easy, leading to its future loss. Of course, it's function is simply to help break the piece loose which you are cutting, and won't be a big deal to most. The only affected variable possibly being production speed (if used on a mass scale or in commercial settings). The maximum possible depth on this is 11/16ths before you bottom out from the depth guard. The cut I needed to make turned out very clean and burr-free in relation to other tools, but if you further want to eliminate burrs, then use some cutting fluid on a medium speed, constantly removing the shavings as you dig deeper. Going too slow will cause the drill to catch and rip out pieces, yet going too fast will wear out the saw prematurely. The rpm speed rating chart is included, but will be quite useless to most people using hand drills. Overall it's a good tool and appears to have excellent durability. If you're looking for a great value, this may not be your thing. If you're looking for precision however, then this is your guy.
        by
        • Recommended
        This is a sturdy and heavy duty hole cutter. You certainly need a strong drill if using on dense ...
        This is a sturdy and heavy duty hole cutter. You certainly need a strong drill if using on dense wood. Cordless drills worked for thinner and softer wood such as pine. The hole cutter does a good job of making a clean circular hole. It creates a lot of debris, so keep that in mind if you are working on something for the inside of the house. After cutting a few holes, the metal is still super sharp. This should last years!
        by
        • Recommended
        TKO all the way
        the TKO hole cutters save a ton of time building boxes.
        by
          • Recommended
          Great5 tool. Ripped thru 3/16" plate steel like butter!...
          Great5 tool. Ripped thru 3/16" plate steel like butter!
          by
          • Verified Purchase
          Lost sharpness and became unusable after only 3 holes in...
          Lost sharpness and became unusable after only 3 holes in stainless.
          by
          • Verified Purchase
          Carbide tips broke off during first use. Would not...
          Carbide tips broke off during first use. Would not recommend.
          by
          • Verified Purchase
          Cuts very good. I used on a non metal, concrete embedded surface and it did well. What i like is ...
          Cuts very good. I used on a non metal, concrete embedded surface and it did well. What i like is the pilot drill bit has a setscrew, and the wrench is supplied. the pilot is spring is removeable and adjustable making easier pilot bit changes. Supplied with its own hard case, not a blister pack, keeps it neatly stored in the bit drawer. I will use on sheet metal often, so it a nice addition.
          by
          This review is from 1-3/4 in. Carbide Hole Cutter
          • Recommended
          The 1-3/4 in. Carbide Hole Cutter 1-3/4 IN. CARBIDE HOLE CUTTER worked flawlessly in making the h...
          The 1-3/4 in. Carbide Hole Cutter 1-3/4 IN. CARBIDE HOLE CUTTER worked flawlessly in making the hole in a solid door that was custom built for my outside cellar access. This made installing the doorknob/lock set very easy and neat in appearance. The bit cut through the pressure treated lumber effortlessly and made a smooth hole for the doorknob/lock set.
          by
          This review is from 1-3/4 in. Carbide Hole Cutter
          • Recommended
          Klein quality tools are the electrical trades choice . As an electrician and electrical contracto...
          Klein quality tools are the electrical trades choice . As an electrician and electrical contractor for 39 years Klein has been on my side ( literally in my pouch ). This 1-3/4 IN. CARBIDE HOLE CUTTER saves time when having to make conduit entry for 1-1\4 inch conduit. Beats using a knockout punch and definitely safer than a standard hole saw . You will appreciate the quality!
          by
          This review is from 1-3/4 in. Carbide Hole Cutter
          • Recommended
          When you need a precise hole in steel, there's simply no substitute for a hi-quality drill bit. A...
          When you need a precise hole in steel, there's simply no substitute for a hi-quality drill bit. And when you're drilling holes one-to-two inches wide, there's no substitute for a quality hole cutter. The carbide tips on these cutters bite and carve a beautiful hole, and the plug comes out easily. It also includes the hex key for replacing the pilot bit. Not a tool I use a lot, but I've learned that buying the best tool brings the best results, and that means getting the job done the first time, which is always my goal. Works just as well in wood, and given that it's designed for cutting steel, will probably last your lifetime if used just for wood.
          by
          This review is from 1-3/4 in. Carbide Hole Cutter
          • Recommended
          Showing 1-10 of 18 reviews
