#1 Home Improvement Retailer

Internet #206371927

Model #31905

Store SKU #1001535145

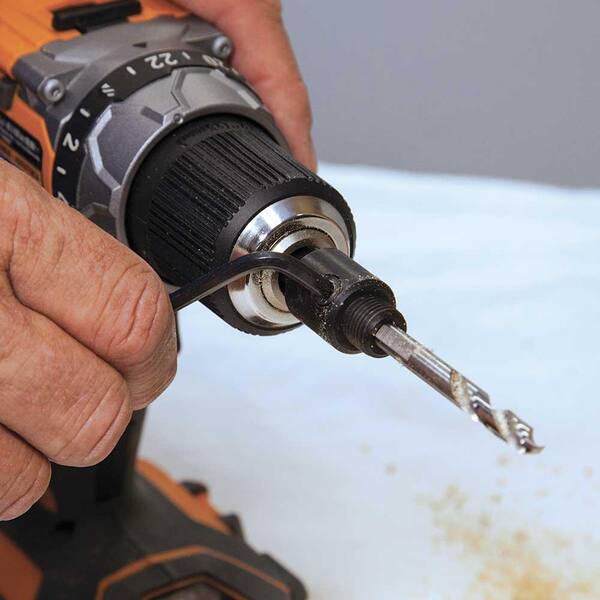

3/8 in. Hole Saw Arbor with Adapter

  • Arbor is suitable for use with all Klein hole saws
  • Comes with an arbor adapter for use with 1-3/8 in. hole saws
  • Features 118 deg split point pilot bit
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Klein's Hole Saw Arbor with Adapter can be used with all Klein hole saws. Fits all 3/8 in. drills and larger. 5/8 in. adapter allows use with larger hole saw diameters.
  • Cat number 31906 arbor with pins is recommended for hole saws 2 in. (51 mm) and larger
  • Arbor adapter included for use with hole saws 1-3/8 in. (35 mm) and larger
  • Steel construction for long life
  • Fast and easy to engage and disengage hole saw
  • Note: set pilot drill point 1/8 in. (3 mm) beyond tooth points
  • Shop Klein Tools Hole Saws here



  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Compatible Hole Saw Sizes
Assorted
Drilling Depth (in)
2
Hole Saw Thread Size
1/2-20
Product Depth (in.)
.5
Product Height (in.)
4.5
Product Width (in.)
.5
Shank Diameter
3/8 in.
Shank Diameter
3/8 in.

Details

Arbor Size
3/8
Material
Steel
Min Chuck Size Required
3/8 In.
Pilot Bit Included
Yes
Returnable
90-Day
Shank Style
Hex
Teeth Per Inch
0
Tools Product Type
Power Tool

Questions & Answers

2Questions5Answers

Is this adapter suitable for drilling through metal? The Klein Tools 1-3/8 in. Bi-Metal Hole Saw ...

Asked by Matt February 7, 2019
1
Answer

Yes, the Klein Tools model # 31905 Hole Saw Arbor with Adapter is suitable for drilling through metal. It is designed for use with all Klein Tools Bi-Metal Hole Saws.

How do you keep your hole saw on it secure that it wont spin and keep it on the arbor,does it tak...

Asked by sonny December 9, 2016
4
Answers

HOLE SAW IS THREADED...... SHOULDN'T COME LOOSE UNLESS YOU HAVE "JAMMED" IT AND USED REVERSE ON YOUR DRILL. IF YOUR HOLE SAW DOESN'T FIT UNTO THE THREADS YOU MAY NEED THE VARIETY THAT HAS 2 "PINS" THAT FIT INTO THE HOLE SAW. THIS BIT IS FOR USE WITH UP 1 1/8" BITS, WITH THE EXTRA FITTING THREADED ON IT WILL WORK EXCELLENTLY WITH 1 3/8" BITS. LARGER YOU NEED THE "PINNED" VARIETY.

Customer Reviews

  • 4.9
    out of 23 reviews
  • 92% recommend this product
Filter by:
Showing 1-10 of 23 reviews
Worked nicely on the small diameter hole sizes and the adapter allowed me to use it on the larger...
Worked nicely on the small diameter hole sizes and the adapter allowed me to use it on the larger sizes. The largest I used it on was 1 3/8". Stayed tight. Good price.
by TJW777
Fits multiple Size Hole Saws
This arbor conveniently comes with an adapter bushing to permit its use with more than one size hole Saw. Adjustment is provided for the relative "stick out" of the pilot drill (depending upon the depth of the hole saw used. The hex shaped shaft provides for a good "grip" in the drill motor chuck, to prevent slippage under load. This arbor was used with the adapter and a Klein hole saw.
by DonK
good tool
sweet arbor set up the pilot bit is good and sharp it starts the hole without sliding off the mark. It also has a hex so that it is easier to hold while changing hole saw sizes and holds well in the drill chuck without slippage. There is a set screw holding the bit in place but it also makes it easy when you need to remove it for sharpening or replacement. It also comes with a adapter to fit larger hole saws.
by Towguy
Rugged and Affordable Hole Saw Arbor (Saw Not Included)
This arbor comes with a threaded 5/8" adapter that is used with hole saws 1-3/8" (35 mm) and larger in diameter. A different arbor catalog number 31906 with pins is recommended for hole saws 2" (51 mm) and larger in diameter. Hole saws are engaged by screwing them onto the threaded portion of the arbor. The pilot drill bit included with this arbor is 1/4" in diameter and is secured in place with a 1/4" diameter set screw that requires a 5/32" or 4 mm size Allen wrench. The drill shank on this arbor is 0.370" hex shaped to provide positive engagement in a drill chuck. The manufacturer applied a sticker external to the plastic packaging with a picture of a drill 1/2" (13 mm) as the suggested drill to use with the arbor. A 1/2" drill is easier to use and control then some 3/8" drills when boring large diameter holes because a 1/2" drill can develop much higher torque at low RPM unlike some 3/8" drills and also rotates at a lower RPM then 3/8" drills.
by DIY03038
2 people found this helpful
Very easy to use. Great product....
Very easy to use. Great product.
by 1JESUSFREAK
Was as good as expected
Was as good as expected
by neil
Good value
Good value
by Dawg
As advertised. Klein is always excellent....
As advertised. Klein is always excellent.
by Richard
Good quality and design. Performs exactly to design....
Good quality and design. Performs exactly to design.
by Ohiorefugee
5 Star Review
Rating provided by a verified purchaser
by HomeDepotCustomer
Showing 1-10 of 23 reviews
