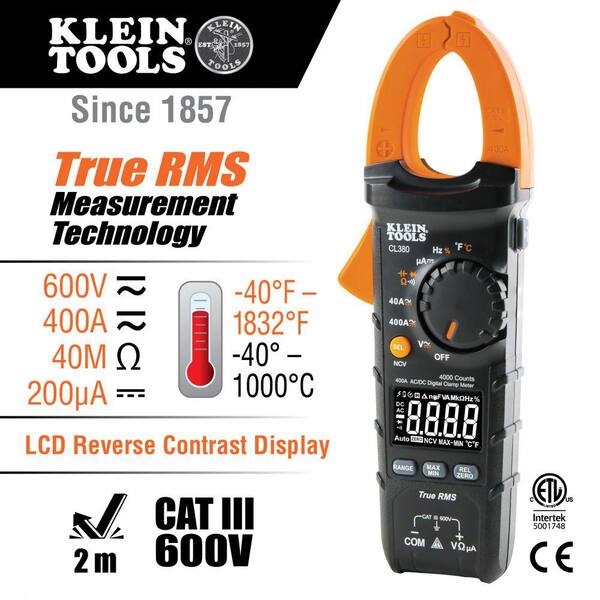

400 Amp Auto-Ranging AC/DC Digital Clamp Meter

  • Tester has non-contact voltage tester integrated in the clamp jaw
  • Amp Clamp measures AC/DC current
  • Reverse contrast LED display for high visibility in low-light
  • See More Details

Frequently Bought Together

+
+
Price:
$8414

Product Overview

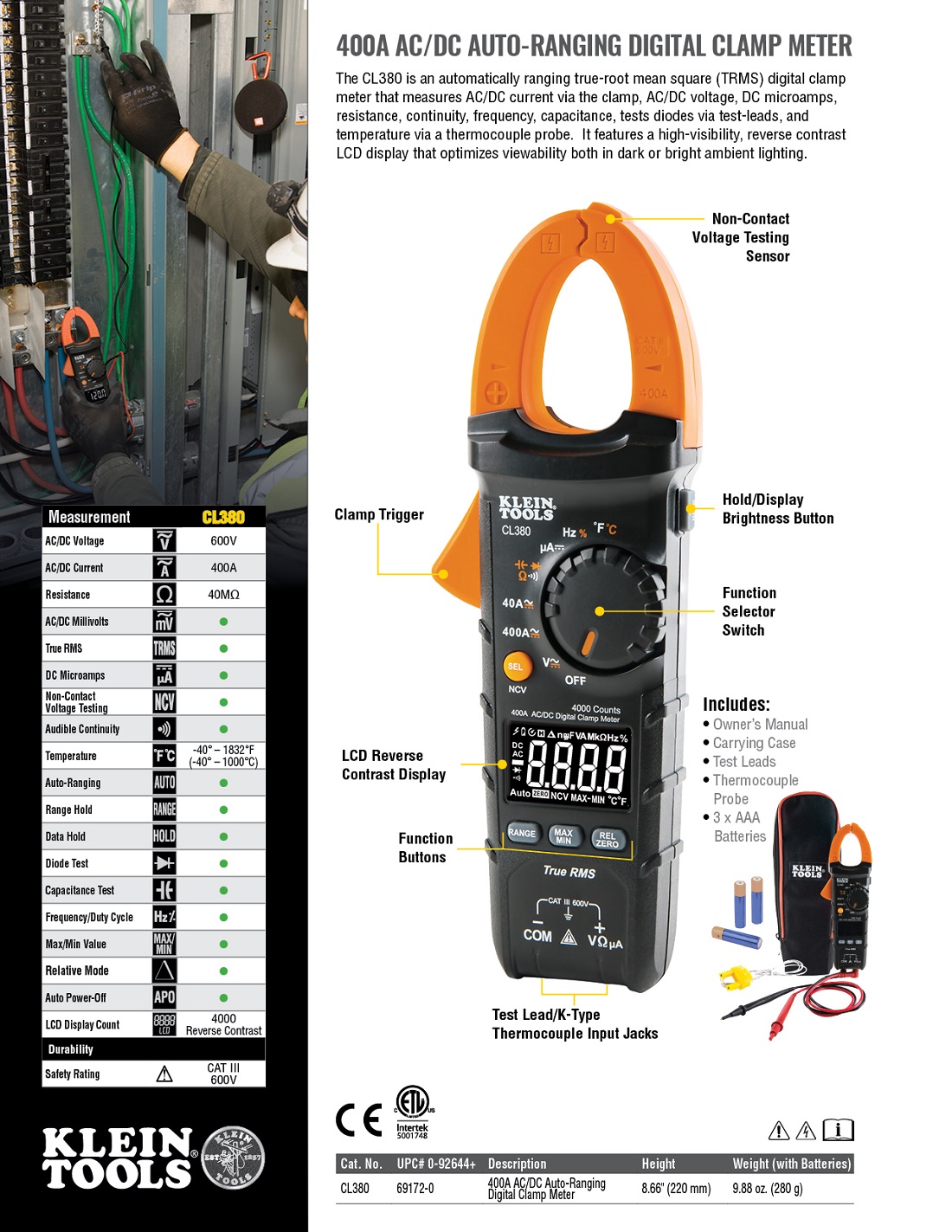

Klein Tools CL380 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC current via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It includes a non-contact voltage tester integrated into the clamp, and features a high visibility, reverse contrast LCD display that optimizes viewability both in dark or bright ambient lighting.
  • California residents
  • Clamp meter features auto-ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Measures AC/DC current via the clamp
  • high-visibility reverse contrast LCD display for improved viewability in all ambient lighting conditions
  • Non-contact voltage tester integrated into the clamp jaw
  • Measures AC/DC voltage, DC micro amp current (A), resistance, continuity, frequency, duty-cycle, capacitance and test diodes via the test leads
  • Measures temperature with a K-type thermocouple probe
  • Audible continuity
  • Data hold capability
  • Powers off automatically after 5 minutes of non-use to conserve battery life

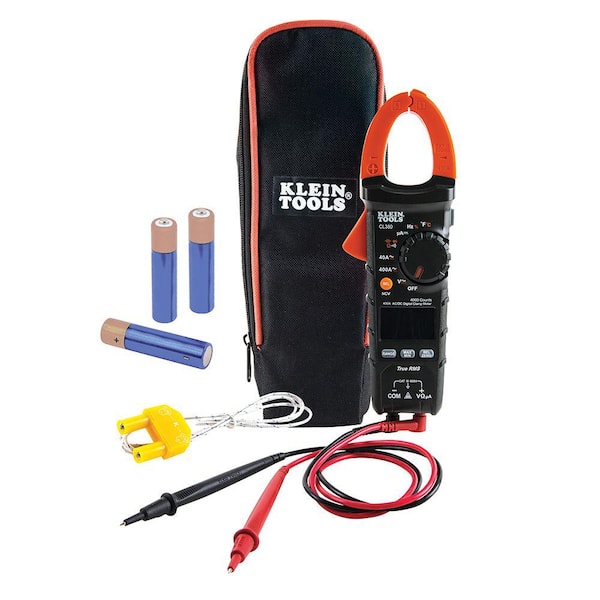

  • Includes a carrying case, test leads, thermocouple probe, instruction manual and 3 x AAA batteries
  • Built to withstand a 6.6 ft. (2 m) drop
  • CAT III 600-Volt, class 2, double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
  • Shop all Klein Tools multimeters here



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Multimeters

1000V Auto-Ranging Digital Multimeter
current product
400 Amp Auto-Ranging AC/DC Digital Clamp Meter
True RMS Auto-Ranging Digital MultimeterClamp Meter 600 Amp AC with NCV and TRMS
BrandKlein ToolsKlein ToolsKlein ToolsIdeal
Name1000V Auto-Ranging Digital Multimeter400 Amp Auto-Ranging AC/DC Digital Clamp MeterTrue RMS Auto-Ranging Digital MultimeterClamp Meter 600 Amp AC with NCV and TRMS
Price
$6997
$8414
$9997
$10277
Ratings
(170)
(57)
(81)
(10)
Test Meter TypeClamp/MultimeterClamp/MultimeterClamp/MultimeterClamp/Multimeter
Display TypeLCDLCDLCDLCD
Electrical Tools FeaturesAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Handheld,Integral Lead Storage,Interchangeable LeadsAuto Ranging,Backlit,Battery Powered,Built-in Clamp,Data Hold,Handheld,Interchangeable Leads,Low Battery Indicator,Noncontact Detection,RMS,Tests Continuity,Tests ResistanceAudible Alert,Auto Ranging,Backlit,DC Polarity Indicator,Data Hold,Handheld,Integral Lead Storage,Interchangeable LeadsAudible Alert,Auto Ranging,DC Polarity Indicator,Data Hold,Handheld,Impact Resistant,Interchangeable Leads,Tests Continuity,Tests Resistance
Control TypeDigitalDigitalDigitalDigital
Voltage (volts)10006001000600
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
1.61
Product Height (in.)
8.66
Product Width (in.)
3

Details

Battery Power Type
Alkaline
Battery Size
AAA
Category Rating
III
Control Type
Digital
Display Type
LCD
Electrical Tools Features
Auto Ranging,Backlit,Battery Powered,Built-in Clamp,Data Hold,Handheld,Interchangeable Leads,Low Battery Indicator,Noncontact Detection,RMS,Tests Continuity,Tests Resistance
Measures/Detects
Amperage,Capacitance,Continuity,Diodes,Duty cycle,Frequency,Polarity,Temperature,Voltage
Number of Batteries Required
3
Number of Functions
15
Number of Ranges
35
Product Weight (lb.)
0.62
Returnable
180-Day
Test Meter Type
Clamp/Multimeter
Tools Product Type
Test Meter
Type
Clamp
Voltage (volts)
600

Warranty / Certifications

Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Questions & Answers

3Questions11Answers

My meter auto shuts off even when taking measurements. Is this a common problem?

Asked by Beefemus May 16, 2020
4
Answers

I bought it May 2020 and it has performed flawlessly.

What is the country of origin (made in ???) ... need one of these but I need this info first. I ...

Asked by Steve May 15, 2020
2
Answers

The model # CL380 Clamp Meter is made in China.

It says this meter measures duty cycle. I know some items can only run for a few minutes before ...

Asked by ledguy November 20, 2019
5
Answers

This meter will measure the duty cycle of an AC waveform, not the on/off time of a motor, or compressor.

Customer Reviews

  • 57 Customer Reviews
  • 4.6 out of 5 stars overall
92% of customers recommended.
Overall Ratings
5star-icon(41)
4star-icon(11)
3star-icon(3)
2star-icon(0)
1star-icon(2)
Sort By:
This clamp meter features probes for use directly on circuits as well as a clamp for inductively ...
Quality :
5
Seeds Program Review
(What's this)
This clamp meter features probes for use directly on circuits as well as a clamp for inductively checking loads without making direct contact. It also features a thermocouple for checking temperatures in both Fahrenheit and Celsius. The screen is backlit and very easy to read. Auto ranging compensates for different ranges of voltage and current. Both AC and DC voltages and currents can be tested. Accuracy is very good. The included zippered storage pouch is a very nice touch, and keeps everything readily available.
Was this helpful?
0
0
Klein Tools CL 380 400A AC/DC Auto-Ranging True RMS Digital Clamp Meter measures AC/DC current vi...
Quality :
5
Seeds Program Review
(What's this)
Klein Tools CL 380 400A AC/DC Auto-Ranging True RMS Digital Clamp Meter measures AC/DC current via the clamp; AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test leads; and temperature via a thermocouple probe. It has a reverse contrast LCD easily viewable in bright or dark settings. Powered by 3 AAA batteries that are included. Klein Tools website link for this tool: https://www.kleintools.com/catalog/clamp-meters/acdc-digital-clamp-meter-400a-auto-ranging I thought it would be pretty straight forward to use this meter to measure line amperages; just clamp it around any cord and take the reading. Not so! I ended up seeking assistance from my father who is a retired master electrician, and brother that is an electrical engineer. The instruction manual does not explain or clearly state that in order to correctly measure power cord amperage with the tool that it must be used with a line splitter: https://www.kleintools.com/catalog/test-measurement-accessories/line-splitter-10x Available at Home Depot: https://www.homedepot.com/s/line%2520splitter?NCNI-5 When measuring power cord amperage, only one wire should be measured, either the positive or neutral, not all three at one time as inside a cord – positive, negative, ground. This is due to the positive and neutral wires canceling each other out due to alternating current. I found some videos to assist with understanding this and seeing how measurements are taken correctly. I also include a video demonstrating the importance of this TRMS meter versus a RMS meter: https://www.youtube.com/watch?v=z-KfZvbjyBY https://www.youtube.com/watch?v=RFhG7l1YmBI While there are lots of videos available on other sites, it is disappointing that Klein does not have information or a video on their website demonstrating correct use of their clamp meters. However, here is one example of a video explaining and demonstrating the various functions of another model Klein TRMS clamp meter. While it is not the Klein CL380 the information still applies: https://www.youtube.com/watch?v=Mqd5qhjzkBI I question one bit of information provided in the instruction booklet: Under Calibration it states, “Accurate for one year.” Hmm, does this mean that the measurements provided by the instrument are not to be trusted after one year of use? I did not pursue an answer to this question with Klein. I intend to use the tool to check electrical connections and components during the build and testing of an electric paramotor drawing at peak over 300 Amps. Two year warranty from date of purchase. Made in China.
Was this helpful?
3
0
This works as well as you'd expect. I've only recently started using Klein tools, but have used ...
Quality :
5
Seeds Program Review
(What's this)
This works as well as you'd expect. I've only recently started using Klein tools, but have used quite a few recently, and I've been pretty impressed with the quality. This meter is easy to read and it's convenient to have something like this around that can read electrical signals without having to poke at live circuits. It's also got all the features of a regular multimeter as well as a thermometer function, which is nice.
Was this helpful?
0
0
Quality :
5
Seeds Program Review
(What's this)
Klein Tools, not much more to say except this CL 380 is an excellent tool for an electrician. The LCD display is easy to red in bright light. The ranges are really, really good. It’s the only one I have seen with a temperature gauge and it will register Celsius and Fahrenheit. Amperage, continuity (without current flowing). Nice case and batteries included.
Was this helpful?
4
0
Does everything I need it to do around the house...
Does everything I need it to do around the house and then some. Klein may have won me over with this one,.
Was this helpful?
0
0
Friendly to use
Friendly to use
Was this helpful?
0
0
Great tool at an affordable price. Easy to use. One...
Great tool at an affordable price. Easy to use. One of the few multi-meters that gives DC current for less than $100.00.
Was this helpful?
1
0
not good enough
i was trying to replaced my old fluke clamp meter so i purchased this one, very disapointed, my fluke meter is 12 years old and is better product than this one, this is not for profesionals, is for DIY projets at home
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Works great. Met my expectatins.
Works great. Met my expectatins.
Was this helpful?
0
0
Review this Product
Share your thoughts with other customers
