Internet # 203499098

Model # 31852

7/8 in. Carbide Hole Cutter

$33.99
Apply Now
Pay $8.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Carbide Hole Cutter precisely cuts up to 3/16 in. thick
  • Cuts stainless steel, mild steel, iron, copper, and brass sheet
  • Perfect for 1/2 in. conduits and pipes
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

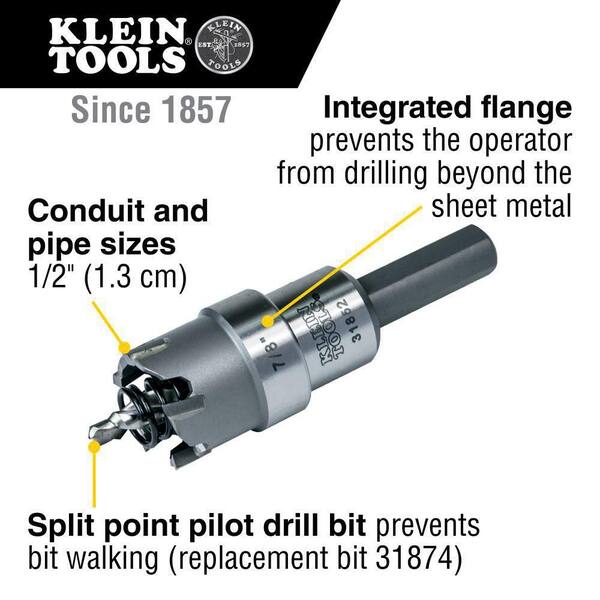

This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange prevents the operator from drilling beyond the sheet metal. Split point pilot drill bit prevents bit walking.

Highlights

  • Heavy duty, durable carbide hole cutters for long life
  • Cuts quick, precise holes in stainless steel, mild steel, iron, copper, and brass sheet up to 3/16-Inch (0.5 cm) thick
  • Split point pilot drill bit prevents bit walking
  • Integrated flange prevents the operator from drilling beyond the sheet metal
  • Conduit and pipe sizes: 1/2-Inch (1.3 cm)
  • Uses replacement pilot bit 31874
  • Click here for more Klein Tool products
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203499098

Model # 31852

Additional Resources

Shop All Klein Tools

Specifications

Dimensions

Bit Diameter

7/8 in

Bit Length (in.)

4.8

Drilling Depth (in)

0.63

Hole Saw Diameter (in)

7/8"

Shank Diameter

3/8 in

Details

Arbor included

Yes

Arbor Size

3/8

Bit Material

Carbide

Drill Bit Type

Hole Saw

Drill Bit Type(s) Included

Hole Saw

Individual/Set

Individual

Material Cut

Multi-Purpose

Min Chuck Size Required

3/8 In.

Pilot Bit Included

Yes

Returnable

90-Day

Shank Style

Hex

Teeth Per Inch

N/A

Tools Product Type

Power Tool

Questions & Answers

3Questions
caret
Q:will this work on concrete?
by|Aug 31, 2020
5 Answers
Answer This Question

A:  The Klein Tools Carbide Hole Cutters are not designed for use on concrete.

by|Aug 31, 2020

    A:  No, it is made for cutting through various metals. Concrete would ruin it quickly.

    by|Nov 17, 2020

    A:  not design of concrete is only design for metal or plastic electrical box's

    by|Nov 10, 2020

    A:  No, this is for different types of metals only.

    by|Nov 22, 2020

    A:  This is not made for concrete, best thing to use on concrete is a hammer drill with its own special bits.

    by|Dec 5, 2020
    caret
    Q:will it cut small depth hole
    by|Jan 9, 2019
    4 Answers
    Answer This Question

    A:  The Klein Tools model 31850 Carbide Hole Cutter will cut ¾” holes in stainless steel, mild steel, iron, copper, and brass sheet up to 3/16” thick.

    by|Jan 10, 2019

      A:  It will cut thin materials provided that they are clamped. It is designed to cut right through the material, so you cannot cut a blind hole.

      by|Jul 12, 2020

      A:  I assume you are talking about cutting in wood. If so, what you want is a Forstner drill bit. This is a hole saw and will drill a pilot hole, then drills around the circumference. The center section is not removed until you drill all the way through.

      by|Jul 10, 2020

      A:  I ordered this cutter to make 4 holes in 1/4" stainless steel plate which was at the upper end of the recommended thickness. It did a fine job, cutting cleanly, however by the end one of the carbide teeth had come loose.

      by|Jun 3, 2020
        caret
        Q:I need to drill through ceramic tile that is over a concrete floor. Will this drill through the tile without splitting or shattering the edges? Once through the tile, I can use a normal masonry bit.
        by|Aug 10, 2018
        3 Answers
        Answer This Question

        A:  The Klein Tools model # 31850 Carbide Hole Cutter is designed to cut holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch thick. It is not recommended for use with ceramic tile.

        by|May 5, 2023

          A:  I dont believe it could without breaking the tile. I would use a test tile and brace it while drilling to confirm it.

          by|May 5, 2023

            A:  You need a core bit

            by|Mar 26, 2024
              Showing 1-3 of 3

              Customer Reviews

              4.5 out of 5

              • 4.5 out of 24 reviews
              • 94% recommend this product
              Filter by:
              Showing 1-10 of 24 reviews
              This Klein Tools Hole Cutter will be used primarily for conduit as I am rewiring my workshop and ...
              This Klein Tools Hole Cutter will be used primarily for conduit as I am rewiring my workshop and many of the electrical boxes on hand do not have knockouts.The 7/8 inch size is needed for the 1/2 inch conduit. There are many very useful features found in this hole cutter. The pilot hole drill bit is surrounded by a spring. My old hole cutter required pliers to pry out the metal piece but the spring in the Klein cutter pops the piece out. The pilot hole bit is replaceable and the allen wrench for the screw is included. The cutters are very sharp and did not even get hot after drilling a test hole. Another great feature is the flange that keeps the cutter from passing through the hole. A small length of tubing covers the pilot bit when in storage. A very nice reclosable container that stores the hole cutter and allen wrench is also included.
              by
              • Recommended
              This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange p...
              This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange prevents the operator from drilling beyond the sheet metal. Split point pilot drill bit prevents bit walking. Always ensure that you and persons in the vicinity wear approved eye protection. It cuts quick, precise holes in stainless steel, mild steel, iron, copper, and brass sheet up to 3/16-Inch (5 mm) thick. The split point pilot drill bit prevents bit walking. There's a integrated flange prevents the operator from drilling beyond the sheet metal.
              by
              • Recommended
              I used the carbide hole cutter to help create some indents for cabinet hardware that I was puttin...
              I used the carbide hole cutter to help create some indents for cabinet hardware that I was putting in. I also used it to cut some holes in wood where I wanted to line up to 2 by 4s in order to create some holders for my tools that attach to my workbench. Really easy to use with a drill; and overall pretty happy with the consistency in the holes. Easy to clean
              by
              • Recommended
              The Klein carbide hole saw is a top quality tool. It is the best cutting hole saw I have ever use...
              The Klein carbide hole saw is a top quality tool. It is the best cutting hole saw I have ever used. It easily cuts through steel and didn’t seem to dull the teeth. Included is a plastic storage container along with a hex wrench to replace the drill bit. Also the saw has a spring mounted inside to discharge the drilled core. This hole saw will last a long time and provide good service.
              by
              • Recommended
              The KLEIN tool carbide hole cutter is a great tool. It is made from heavy duty materials was very...
              The KLEIN tool carbide hole cutter is a great tool. It is made from heavy duty materials was very sharp. The cutter bit through the material very easily leaving a clean hole. I needed a metal support brace where a pipe ran and the bit worked great leaving a clean hole for the pipe. I would highly recommend this and other size bits for DIY'ers to professional workers.
              by
              • Recommended
              This is a nice drill bit, especially when you get into bigger diameter holes. It has a inner bit ...
              This is a nice drill bit, especially when you get into bigger diameter holes. It has a inner bit that helps to keep it centered and stable. It also has a spring around the inner bit to kick off the piece of metal that gets trapped between both bits to save a lot of time if you have a lot of holes to drill. It seems to be very well made and it doesn’t take long to drill with this bit.
              by
              • Recommended
              The Klien Tools hole saw is a quality piece. The cutting blades are carbide tipped for wear resis...
              The Klien Tools hole saw is a quality piece. The cutting blades are carbide tipped for wear resistance and long life. This cutter is for sheet metal up to 3/16 and there is a flange that keeps you from cutting too deep. The shank is 3/8 so it will fit most standard drills. There is a pilot bit that can be moved or replaced with the loosening of a set screw, allen wrench included. The tool also comes with Klien Tools warranty. I gave it a good rating because of the cost.
              by
              • Recommended
              Welcome to the strange world of electrical parts sizes. A 1/2 inch thinwall conduit (EMT) actual...
              Welcome to the strange world of electrical parts sizes. A 1/2 inch thinwall conduit (EMT) actually measures about 5/8 inch inside and just under 3/4 OD. The fitting for that conduit fits into a steel electrical box with a “1/2 inch knockout” hole which actually measures 7/8- inch. That’s where this wonderful drill bit (actually a hole cutter) comes in. Quite often the knockout locations on a larger piece of electrical equipment such as a circuit breaker panel aren’t where you need an opening. Perhaps your wiring or conduit would work better and be cleaner if it entered the box in a different location. It is usually allowable to drill additional holes in these panels as long as they don’t interfere with other components or interior parts and it is done in a “workmanlike manor”. Actually, many electrical panels don’t even come with knockouts at all, and the electrician is expected to cut them in where needed. This Klein 7/8 hole cutter is designed for the 1/2-inch EMT fittings, NM cable clamps and other fittings that are designed to fit the “1/2-inch” hole into electrical boxes and enclosures. The best part is that it works great. It is carbide-tipped, so it works fast and cuts a clean precise hole, unlike hole saws. Little if any filing is needed to remove burrs. It also works well for drilling holes in steel studs, since often there are no factory holes in the studs where you need to run conduit The cutter portion of this tool is removable from the pilot bit in case it needs replacement or sharpening, and an allen wrench is also included for that purpose. It is also designed with a spring around the pilot bit to pop out the center slug. While it comes with a paper giving recommended speeds for various metals, and a plastic display box, I would have liked to see a box that was more durable for long-term use that would protect it, with the speed chart permanently attached to the box. I take good care of my tools and expect them to last a long time, and a good storage case shouldn’t be too much to ask for the price. I found this cutter to be well designed, and should be a real time-saver as opposed to a traditional knock-out set. I suggest using it like a traditional hole saw and drilling straight to avoid binding, and don’t exceed the recommended speed. For most users with battery drills this will seem very slow, but I suspect going too fast would damage the cutter and create an undesirable cut.
              by
              • Recommended
              The Klein tools 7/8 inch carbide tipped hole cutter looks like a quality made tool. It can cut pr...
              The Klein tools 7/8 inch carbide tipped hole cutter looks like a quality made tool. It can cut precise holes in stainless steel, mild steel, iron plate, copper or brass sheet up to 3/16 thick. The pilot bit can be replaced and it comes with the Allen key. The drill bit is meant to be used only in the forward cutting direction, so not in reverse. This hole cutter should last for quite a few holes.
              by
              • Recommended
              the perfect drill accessory for anyone that install or works on electrical home or commercially. ...
              the perfect drill accessory for anyone that install or works on electrical home or commercially. This hole cutter will make a perfect cut for attaching 1 / 2 inch electrical fitting to metal or plastic box's. this all metal cutter has 5 Carbide cutting teeth. there also replaceable centering pilot drill bit to allow for straight hole every time and a spring to asst. in ejecting the cutout disk. the drill bits is designed to cut metal up to 3/16 inch thick or 5 mm. the cutter will require a 1/2 drill chuck to work on a corded or cordless drill. built in stop to not plunge to far into a electrical service box.
              by
              • Recommended
