Internet #207004900

Model # IR5

Store SKU #1002139682

Store SO SKU #1002153141

0092644690303

Dual-Laser Infrared Thermometer

  • Designed to measure temperature range of -22 to 752 deg F
  • Dual targeting lasers ensure targeting the measurement area
  • Calculation modes facilitate temperature measurement applications
$ 59 97
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Designed to measure temperature range of -22 to 752 deg F
  • Dual targeting lasers ensure targeting the measurement area
  • Calculation modes facilitate temperature measurement applications

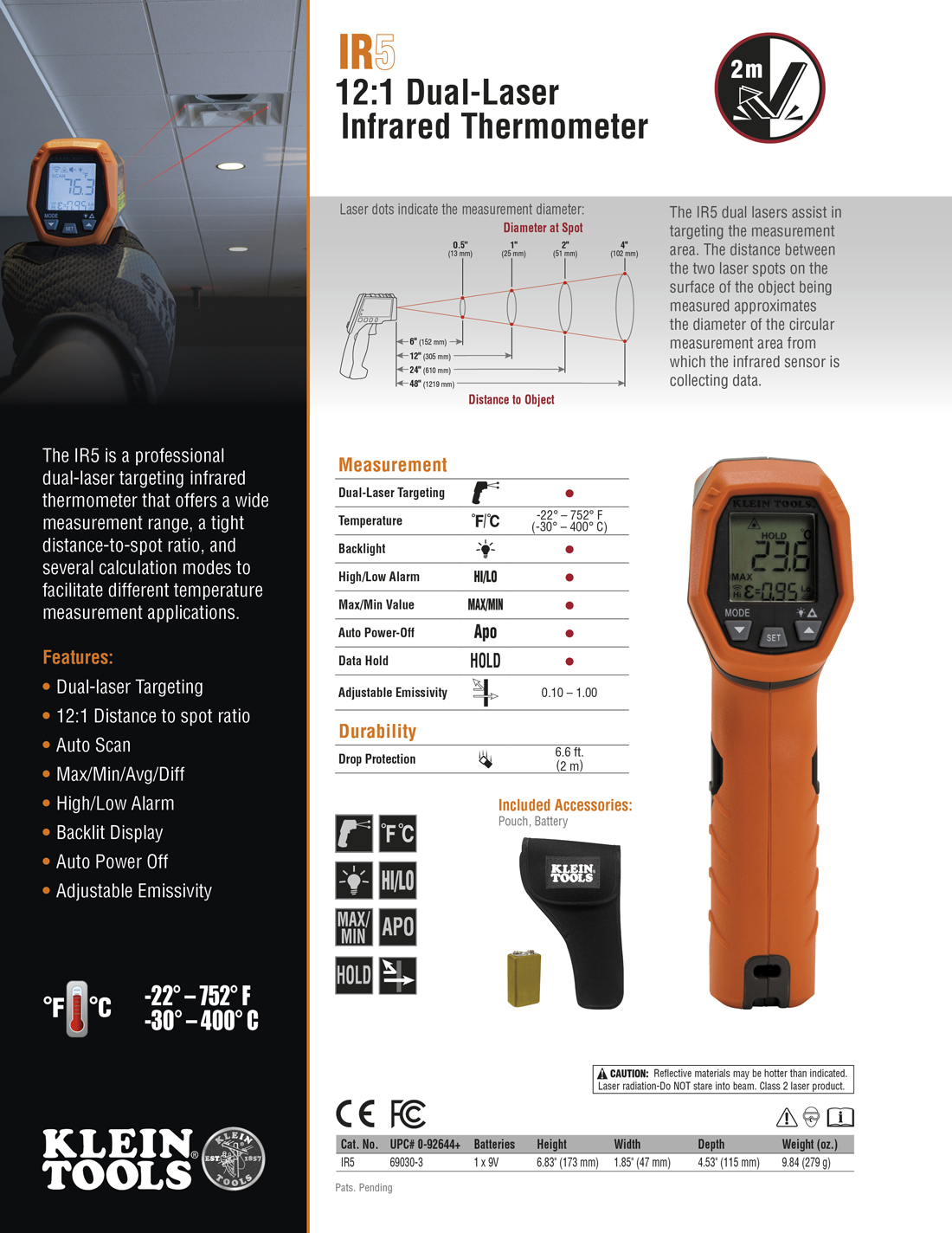

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight distance-to-spot ratio, dual targeting lasers and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the 2 laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.
  • Optical resolution (distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6 ft. (2 m)
  • Measurement range: -22° to 752°F (-30° to 400°C)
  • Uses one 9-Volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
  • Includes custom pouch and batteries
  • Certified to IEC EN 61326-1:2006, EN608251:1994+A2:2001+A1:2002



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Designed to measure temperature range of -22 to 752 deg F
  • Dual targeting lasers ensure targeting the measurement area
  • Calculation modes facilitate temperature measurement applications
Model #: IR5
Sku #: 1002139682
Internet #: 207004900

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight distance-to-spot ratio, dual targeting lasers and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the 2 laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.

  • Optical resolution (distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6 ft. (2 m)
  • Measurement range: -22° to 752°F (-30° to 400°C)
  • Uses one 9-Volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
  • Includes custom pouch and batteries
  • Certified to IEC EN 61326-1:2006, EN608251:1994+A2:2001+A1:2002



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Designed to measure temperature range of -22 to 752 deg F
  • Dual targeting lasers ensure targeting the measurement area
  • Calculation modes facilitate temperature measurement applications
Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight distance-to-spot ratio, dual targeting lasers and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the 2 laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.
  • Optical resolution (distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6 ft. (2 m)
  • Measurement range: -22° to 752°F (-30° to 400°C)
  • Uses one 9-Volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
  • Includes custom pouch and batteries
  • Certified to IEC EN 61326-1:2006, EN608251:1994+A2:2001+A1:2002



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Designed to measure temperature range of -22 to 752 deg F
  • Dual targeting lasers ensure targeting the measurement area
  • Calculation modes facilitate temperature measurement applications
Model #: IR5
Sku #: 1002139682
Internet #: 207004900

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight distance-to-spot ratio, dual targeting lasers and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the 2 laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.

  • Optical resolution (distance-to-spot) is 12:1
  • Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
  • Drop protection to 6.6 ft. (2 m)
  • Measurement range: -22° to 752°F (-30° to 400°C)
  • Uses one 9-Volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on
  • Includes custom pouch and batteries
  • Certified to IEC EN 61326-1:2006, EN608251:1994+A2:2001+A1:2002



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Klein Tools Klein Tools General Tools Klein Tools
Name Dual Infrared and Probe Thermometer Dual-Laser Infrared Thermometer Industrial IR Thermometer with K Probe and Adjustable Emissivity Dual-Laser Infrared Thermometer 20:1
Price
$56.62
$59.97
$76.94
$89.48
Ratings (14) (89) (13) (14)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
4.53
Product Height (in.)
6.83
Product Width (in.)
1.85

Details

Battery Power Type
Alkaline
Battery Size
9-volt
Control Type
Digital
Display Type
LCD
Distance to Spot Ratio
12
Electrical Tools Features
Backlit,Data Hold
Max Accurate Temp Measurement (F)
752
Measures/Detects
Temperature
Min Accurate Temp Measurement (F)
-22
Number of Batteries Required
1
Product Weight (lb.)
0.615lb
Returnable
90-Day
Test Meter Type
Infrared Thermometer
Tools Product Type
Test Meter

Warranty / Certifications

Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Specifications

Dimensions

Product Depth (in.)
4.53
Product Height (in.)
6.83
Product Width (in.)
1.85

Details

Battery Power Type
Alkaline
Battery Size
9-volt
Control Type
Digital
Display Type
LCD
Distance to Spot Ratio
12
Electrical Tools Features
Backlit,Data Hold
Max Accurate Temp Measurement (F)
752
Measures/Detects
Temperature
Min Accurate Temp Measurement (F)
-22
Number of Batteries Required
1
Product Weight (lb.)
0.615lb
Returnable
90-Day
Test Meter Type
Infrared Thermometer
Tools Product Type
Test Meter

Warranty / Certifications

Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Questions & Answers

Will this tell me the temperature difference or if there is a radical difference between the two laser points?

Asked by: david
There is NO RADICAL Temp difference - Just an Average.
Answered by: Dolphinlou
Date published: 2018-09-11

Will this work for hvac.

Accurate temp reading from air conditioning vents
Asked by: Johnny
Yes, that’s what I use mine to read.
Answered by: Villagefix
Date published: 2018-10-23

Does it tell room temperature

Asked by: Jan
I gives the temperature of a surface. The laser must hit a surface to calculate the temperature.
Answered by: Villagefix
Date published: 2018-10-23

How accurate is the measurement? Is it accurate to +/- 2 degrees? 5 degrees? I know the displa...

How accurate is the measurement? Is it accurate to +/- 2 degrees? 5 degrees? I know the display precision shows tenths of a degree, but that doesn't tell us how far off the number is from being correct. Does the accuracy vary depending on the temperature being measured?
Asked by: ObiWan
very accurate with +/- 1 degree of thermastat
Answered by: lbrewer104
Date published: 2019-05-29
  • y_2019, m_11, d_10, h_14CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.0
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_12
  • loc_, sid_207004900, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 10ms
  • QUESTIONS, PRODUCT

Customer Reviews

Klein Tools Dual-Laser Infrared Thermometer is rated 4.3 out of 5 by 89.
Rated 5 out of 5 by from Well made infrared thermometer and inexpensive Another acquisition of a Klein branded tool and once again this cordless portable infrared thermometer does not disappoint. Uses a standard 9-volt alkaline battery which is readily available everywhere. I previously had a high end Milwaukee infrared thermometer however it was stolen making this Klein unit a perfect replacement. Home Depot pricing is not only competitive but inexpensive enough so if misplaced/stolen it is a inexpensive replacement. This Klein model IR5 comes with a added storage pouch and a starter battery. Perfect for low light conditions since this has a backlit screen. This handheld thermometer automatically shuts off when not used thereby prolonging battery life. This Klein thermometer is housed in high impact plastic and will survive a 6+ foot drop. There's even a cutout to attach a lanyard or ring which makes it easier to attach to you tool belt.
Date published: 2017-02-17
Rated 4 out of 5 by from Works Well, Easy To Read This little guy works pretty well. Display is easy to read, functions are plentiful and easy to navigate. Somewhat ergonomic and fits comfortably in my hands. Also has a rubber coating on the handle to prevent you from dropping it. Comes with 9 volt battery and ready to use out of the box. The dual lasers give you a better idea of the area you are measuring. I feel like between 6" to 2' is the sweet spot. anything more than 3 feet and I was getting interference from other objects. Could just be the things I was measuring though. This will save the high temp, the low temp, or you can hold down the trigger to constantly read real time changes. There are some compensation settings for different variables but nothing I needed so I didn't mess with those much. Backlit display that is very visible in the daylight or in a dark room. Will measure in fahrenheit or celsius. I actually used this to measure hot spots in my computer case so I could adjust my cooling system. Worked great.
Date published: 2017-03-06
Rated 5 out of 5 by from I work in building which you need tools like this... I work in building which you need tools like this to make the job ez and I can show them what temp is.
Date published: 2019-09-20
Rated 5 out of 5 by from Great IR Laser, great consistency every time you are readings... Great IR Laser, great consistency every time you are readings Temperature.
Date published: 2019-10-22
Rated 5 out of 5 by from Trusted product.... Trusted product.
Date published: 2019-10-08
Rated 5 out of 5 by from Could ask for more Well, without going down in my crawlspace, this thing has confirmed that insulation has fallen down under my kitchen floor. It accurately measures temperature differences of .2 of a degree F, which is more than enough to gauge whether or not there is insulation under the floor. Aside from a wide range of temperatures I’m finding around my house, I’ve also used it to accurately set the house’s furnace thermometer and correctly set my fridge. The features on the device allow to just scan an area and find the Mmx, min, difference and average. This is perfect for quickly find cold or hot spots in a broad area. The dual lasers allow you to easily tell where you are pointing and measuring. The lasers can be disabled with a hold of one button. Results are instantaneous and the controls are very easy to understand. With a range of -22 to 752F, an DIYer like myself will be hard pressed to find a temperature out of range (unless I try to measure the temperatures on my BBQ, I suppose). It is very lightweight and comfortable to hold. Another fine example of a Klein Tools device.
Date published: 2017-02-18
Rated 3 out of 5 by from I had a device prior to this one which was... I had a device prior to this one which was much less expensive in more simple. This device seems difficult to master because of the extra functions that go beyond temperature readings. I feel like I'm getting inaccurate readings sometimes as well, but maybe this is just due to my lack of experience
Date published: 2019-06-04
Rated 5 out of 5 by from works perfectly, great for getting the temperature of the air coming from the vent, also the temp... works perfectly, great for getting the temperature of the air coming from the vent, also the temperature of a heated floor.
