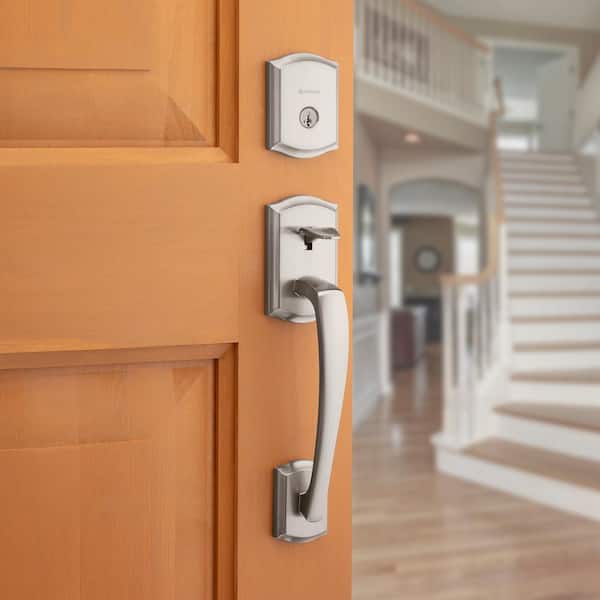

The Prescott handle set has an elegant but modest appearance that will bring charm to any home. With traditional contours that provide an attractive look and comfortable feel when entering the front door. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel.
Dimensions: H 17.75 in, W 2.81 in, D 2.125 in
Assembled Depth (in.) | 2.125 in | Assembled Height (in.) | 17.75 in |
---|---|---|---|
Assembled Width (in.) | 2.81 in | Backset Size (in.) | Adjustable |
Deadbolt Bore Hole Diameter (in.) | 1 in | Deadbolt Cross Bore Diameter (in.) | 2.125 in |
Deadbolt Strike Height (in.) | 2.25 in | Deadbolt Strike Width (in.) | 1 in |
Deadbolt Throw Length (in.) | 1 in | Deadbolt Trim Ring Diameter (in.) | 2.625 in |
Handle grip length (in.) | 12.64 | Inside top plate length (in.) | 2.64 |
Inside top plate width (in.) | 7.21 | Knob/lever bore hole diameter (in.) | 1 |
Knob/lever cross bore diameter (in.) | 2.125 | Knob/lever housing height (in.) | 2.625 |
Knob/lever housing width (in.) | 2.625 | Knob/lever strike height (in.) | 2.25 |
Knob/lever strike width (in.) | 1.75 | Knob/lever throw length (in.) | .5 |
Lever Grip Length (in.) | 4.21 in | Maximum Door Thickness (in.) | 1.75 in |
Minimum Door Thickness (in.) | 1.375 in | Outside bottom handle plate length (in.) | 12.64 |
Outside bottom handle plate width (in.) | 2.81 | Outside key plate length (in.) | 2.125 |
Outside key plate width (in.) | 12.8 | Outside top handle plate length (in.) | 3 |
Outside top handle plate width (in.) | 2.81 | Projection (in.) | 2.125 in |
Commercial/Residential | Residential | Deadbolt strike | Round corner |
---|---|---|---|
Deadbolt Type | Single Cylinder Deadbolt | Door Handing | Universal |
Door Lock Style | Classic | Door Locks & Knobs Product Type | Keyed Handlesets |
Door Type | Keyed Entry | Electronic/Mechanical | Mechanical |
Features | Adjustable Backset, Easy Installation, Kwikset SmartKey | Finish | Satin Nickel |
Handleset Product Type | 2 Piece Front & Back | Hardware Color Family | Nickel |
Hardware Finish Family | Nickel | Included | Drilling Template, Hardware, Installation Instructions, Mounting Hardware |
Keying Type | Keyed Different | Keyway | KW1 |
Knob/lever strike | Round corner | Lever style | Wave |
Lock Type | Keyed | Material | Metal |
Product Weight (lb.) | 6.44 lb | Returnable | 90-Day |
Security/ANSI Grade | AAA | Total Number of Keys Included | 2 |
Certifications and Listings | ANSI Certified | Manufacturer Warranty | Lifetime mechanical and finsih |
---|
The door has to be shut in order to lock it from the inside using the turn piece on the deadbolt.
Yes, our handlesets are reversible and can be installed on both left-hand and right-hand doors.
The interior lever does not have a locking feature.
our SmartKey locks are compatible with 5-pin (K1 and K5) and 6-pin (K10) keyways. Check your current keys for compatibility.
These dimensions are 8-13/32" through 9-11/16". For the full dimension of the Prescott Handleset, please click on the link below. https://s7d2.scene7.com/is/content/Kwikset/Prescott-Sell-Sheet
The minimum center-to-center distance is 5 1/2" between the deadbolt and latch boreholes. https://images.thdstatic.com/catalog/pdfImages/34/34feeb77-61c1-4431-9992-19a62d0c66f1.pdf
Yes, you can install this handleset without the latches for an inactive door.
This set has a universal handing that fits both right & left-handed door preparations. Please see step 10A in the installation instructions in the link below for the handing adjustment. https://images.thdstatic.com/catalog/pdfImages/34/34feeb77-61c1-4431-9992-19a62d0c66f1.pdf
