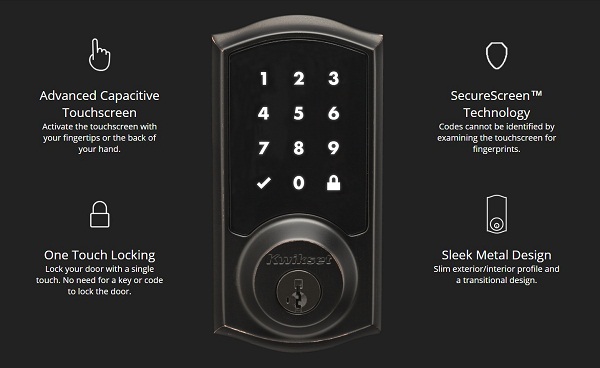

SmartCode 915 Touchscreen Venetian Bronze Single Cylinder Electronic Deadbolt Featuring SmartKey Security

  • Customized automatic door locking for peace of mind
  • Easy to program user access codes for increased security
  • SmartKey Security re-key allows you to rekey your lock in seconds
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The SmartCode touchscreen electronic deadbolt is a one-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. It features patented SecureScreen technology to prevent code detection from fingerprints on the touchscreen. SmartCode is easy to install, program and use, and operates on 4 AA batteries. It also features SmartKey Security as the back-up keyway. This single cylinder deadbolt can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style.
  • Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • SmartKey security re-key technology is compatible with Kwikset (KW1) keyway
  • For use on exterior doors where keyed entry and security is needed
  • Includes adjustable backset to fit all standard door preparations
  • 1 in. deadbolt throw
  • Keypad stays lit for 30 seconds after inactivity
  • Meets or exceeds underwriter laboratories (UL) testing requirements specified for each product grade or rating
  • ANSI/BHMA grade 2 certified
  • Requires 4 AA batteries (purchased separately)
  • Customized automatic door locking after 30 seconds for peace of mind
  • Easily installs in minutes with just a screwdriver - no hardwiring needed
  • Sleek metal design for enhanced quality
  • Lifetime mechanical and finish warranty, 1 year electronics warranty
  • Designer style and superior security with this Kwikset Signature Series product
  • Dramatically reduced interior size
  • Tamper resistant interior cover
  • Capacitive touchscreen
  • Up to 16 user access codes for family and guests
  • Learn more about different types of smart locks here.



  • See more of what Smartcode has to offer

    SmartCode 915 Touchscreen Single Cylinder Tuscan Bronze UL-Rated Electronic Deadbolt Featuring SmartKey

  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Keyless Deadbolts

current product
SmartCode 915 Touchscreen Venetian Bronze Single Cylinder Electronic Deadbolt Featuring SmartKey Security
SmartCode 915 Touchscreen Satin Nickel Single Cylinder Electronic Deadbolt Featuring SmartKey SecuritySmartCode 915 Touchscreen Satin Nickel Single Cylinder Electronic Deadbolt with Avalon Handleset and Tustin LeverPremis Touchscreen Smart Lock Single Cylinder Venetian Bronze Electronic with Avalon Handleset and Tustin Lever
BrandKwiksetKwiksetKwiksetKwikset
NameSmartCode 915 Touchscreen Venetian Bronze Single Cylinder Electronic Deadbolt Featuring SmartKey SecuritySmartCode 915 Touchscreen Satin Nickel Single Cylinder Electronic Deadbolt Featuring SmartKey SecuritySmartCode 915 Touchscreen Satin Nickel Single Cylinder Electronic Deadbolt with Avalon Handleset and Tustin LeverPremis Touchscreen Smart Lock Single Cylinder Venetian Bronze Electronic with Avalon Handleset and Tustin Lever
Price
Ratings
(324)
(396)
(248)
(45)
Lock TypeKeyed,Keypad,TouchscreenKeyed,Keypad,TouchscreenKeyed,Keypad,TouchscreenKeyed Entry
Security/ANSI GradeANSI Grade 2 (Better)ANSI Grade 2 (Better)ANSI Grade 2 (Better)ANSI Grade 2 (Better)
Deadbolt TypeSingle Cylinder DeadboltSingle Cylinder DeadboltSingle Cylinder DeadboltSingle Cylinder Deadbolt
Commercial/ResidentialResidentialResidentialResidentialResidential
FeaturesAdjustable Backset,Automatic Relocking,Easy Installation,Fail-Safe,Kwikset SmartKey,RekeyableAdjustable Backset,Automatic Relocking,Easy Installation,Fail-Safe,Kwikset SmartKey,RekeyableAdjustable Backset,Automatic Relocking,Easy Installation,Fail-Safe,Kwikset SmartKey,RekeyableEasy Installation,Kwikset SmartKey,Rekeyable
Hardware Finish FamilyBronzeNickelNickelBronze
Works With Apple HomeKit, Proprietary App, Siri
View ProductView ProductView ProductView Product

Specifications

Dimensions

Faceplate depth (in.)
1.1875
Faceplate height (in.)
5.75
Faceplate width (in.)
2.75
Projection (in.)
1.1875
Required door thickness (in.)
1 3/8 to 2
Strike plate height (in.)
2.75
Strike plate width (in.)
1.25

Details

Battery Size
AA Battery
Commercial/Residential
Residential
Deadbolt Type
Single Cylinder Deadbolt
Door Handing
Universal
Door Lock Style
Classic
Door Locks & Knobs Product Type
Deadbolts
Electronic/Mechanical
Electronic
Features
Adjustable Backset,Automatic Relocking,Easy Installation,Fail-Safe,Kwikset SmartKey,Rekeyable
Finish
Venetian Bronze
Hardware Color Family
Bronze
Hardware Finish Family
Bronze
Hardware Included
Lock Only
Holding force (lb.)
0
Included
Drilling Template,Hardware,Installation Instructions
Interior/Exterior
Interior/Exterior
Keyway
KW1
Lock Type
Keyed,Keypad,Touchscreen
Lock Type
Single Cylinder Deadbolt
Material
Metal
Number of Batteries Required
4
Power Source
Self Powered
Product Weight (lb.)
2.73
Returnable
90-Day
Security/ANSI Grade
ANSI Grade 2 (Better)
Tools/Hardware Collections
Kwikset SmartCode
Total Number of Keys Included
2
Wired or Wireless
No electrical connectivity

Warranty / Certifications

Certifications and Listings
ANSI Certified,UL Listed
Manufacturer Warranty
Lifetime mechanical and finish warranty, 1 year electronics warranty

Questions & Answers

46Questions19Answers

Need to install this in a Security Screen Door that is 1.25 inches thick . Advice Please

Asked by Tom April 21, 2021
1
Answer

Kwikset levers and knobs fit doors with a borehole size of 2-1/8" in diameter and a thickness between 1-3/8" to 2-1/4". Thick door kits are required for doors between 1-7/8” to 2-1/4” thick. The latch fits a backset of either 2-3/8" or 2-3/4".

Can anyone tell me the actually length of the outside handle from very top to bottom?

Asked by NH January 29, 2021
1
Answer

The exterior measurement of the Avalon handle is 12-13/20” from top to bottom.

Is this lockset compatible with the ring alarm system.

Asked by Tonymc November 28, 2020
1
Answer

The SmartCode 915 is a stand-alone electronic lock, which only works by using the keypad or physical key. The SmartCode 916 Z-Wave lock is compatible with the Ring Alarm System. Please click on the following link for more details on the SmartCode 916. https://www.homedepot.com/p/Kwikset-Z-Wave-SmartCode-916-Touchscreen-Satin-Nickel-Single-Cylinder-Electronic-Deadbolt-Featuring-SmartKey-Security-916TRLZW50015RC/305360463

Is there a way to adjust the sensitivity of the keypad? I can't get it to light up on cool mornings!

Asked by BankPrez September 25, 2020
3
Answers

Not that I know of. Mine has the same problem where it doesn't want to respond for about 6 seconds after touching it, but it's when it has bright sunshine on it. My door faces directly east so it gets a lot of AM sun. I plan on getting something else to replace it. It's pretty annoying.

Kwikset Kwikset SmartCode 915 Touchscreen Lifetime Polished Brass Single Cylinder Electronic Dead...

Asked by lllll June 28, 2020
1
Answer

The touchscreen is manufactured of plastic materials. Kwikset finishes are tested for durability in all weather conditions. Additionally, a new Kwikset product is backed by a limited lifetime warranty for the finish.

On the deadbolt portion can you change it out to allow for a double-cylinder by buying a separate...

Asked by Gwhit021 June 20, 2020
1
Answer

Kwikset electronic deadbolts can only be used as single-cylinder deadbolts and cannot be converted into double-cylinder deadbolts.

Can the auto locking function be deactivated by the user, such as when the door is propped open o...

Asked by newhomeowner April 22, 2020
1
Answer

Yes, to disable the auto-lock function on the SmartCode 915, remove the interior cover and push the dip switch # 2 down into the off position. To enable the auto-lock function, push the switch # 2 back up to the on position.

Does it lock temporarily after a number of incorrect codes?

Asked by Taki April 14, 2020
3
Answers

Like any other Smart device

The description doesn't say for phone use, yet the one image with the product listing shows a pho...

Asked by Shaun October 28, 2019
2
Answers

No this model is not WiFi enabled so you can’t use your phone with this model.

Do you need to have Smart Key locks on all your doors to be able to use one key? Like do I have to change all my locks?

Asked by Lildeb October 1, 2019
5
Answers

This is not a smart key lock, it is a traditional key-lock plus touch screen,you can replace one only.

SmartCode 915 Touchscreen Venetian Bronze Single Cylinder Electronic Deadbolt Featuring SmartKey Security - page 2

Customer Reviews

  • 4.1
    out of 248 reviews
  • 82% recommend this product
Filter by:
Showing 1-10 of 248 reviews
Quality Lock
Great lock. Quality looks good and is well built, in my opinion. The only complain I have is the auto lock would lock even if the door is open. Other than that. This is a great buy.
by L010S
The only thing I don't like is that in self lock mode it locks when door is open,kwikset needs...
The only thing I don't like is that in self lock mode it locks when door is open,kwikset needs to add a sensor so it doesn't lock when door is open.
by Kmdtmd
This door handle worked out perfectly for the intended use. I have always trusted Kwikset door h...
This door handle worked out perfectly for the intended use. I have always trusted Kwikset door hardware for all of my homes throughout the years. Well made, easy to install and a good value for the price.
by Redwoodoriginal09
The locket and electronic deadbolt look very nice on my door. I probably would have given it 5 s...
The locket and electronic deadbolt look very nice on my door. I probably would have given it 5 stars except that I had to change the batteries after 1 week. Hopefully they were just cheap batteries because if they have to be changed that often, it will get expensive quickly.
by HomeDepotCustomer
4 people found this helpful
Needed a new door knob to match my new door. This one worked great! It is attractive, functional,...
Needed a new door knob to match my new door. This one worked great! It is attractive, functional, and was really easy to install. The only consen I have now is that I see a red door and I want to paint it black. . .Ha Ha
by MountainMan
1 person found this helpful
I purchased this set to use as a dummy handle for non working side of french doors. Matched perfe...
I purchased this set to use as a dummy handle for non working side of french doors. Matched perfectly, great look!
by Albow
Easy to install, was easy to re-key to match a...
Easy to install, was easy to re-key to match a different existing key from prior deadbolts. In that way the landlord already had the key! Was worth it to change the lock on our apartment, especially due to the tight quarters between the screen door and door that opened in opposite directions. Will be easy to remove replace with the prior deadbolt when the time comes.
by Terry
3 people found this helpful
This lock was installed a month ago on the solid core steel door of a new storage closet. It asse...
This lock was installed a month ago on the solid core steel door of a new storage closet. It assembled flawlesly and has worked perfectly. Very sleek and attractive finish. The locking motor has a good solid yet quiet sound to it. The Smartkey feature allowed me to match its key to a Baldwin leaver lock installed on the same door. I am very pleased with its overall function, quality and appearance.
by Gunner
Cons: -touch pad doesn't register touch right away, frustrating -switch cover doesn't come off e...
Cons: -touch pad doesn't register touch right away, frustrating -switch cover doesn't come off easily (there's a screw on the bottom of the cover), making it difficult to swith the autolock function on and off quickly Pros: -Looks nice
by JN
4 people found this helpful
This product works really well. The install was seamless and it really allows me security but acc...
This product works really well. The install was seamless and it really allows me security but access for workers or family when I can't be there. I really like the look and the functionality of this deadbolt. So much so I purchased the doorknob set to match. Kwikset is an amazing brand and a product I stand behind.
by Weiss
3 people found this helpful
Showing 1-10 of 248 reviews
