Internet #202525691

Model # L1430PCCV3

Store SKU #589506

0785007855173

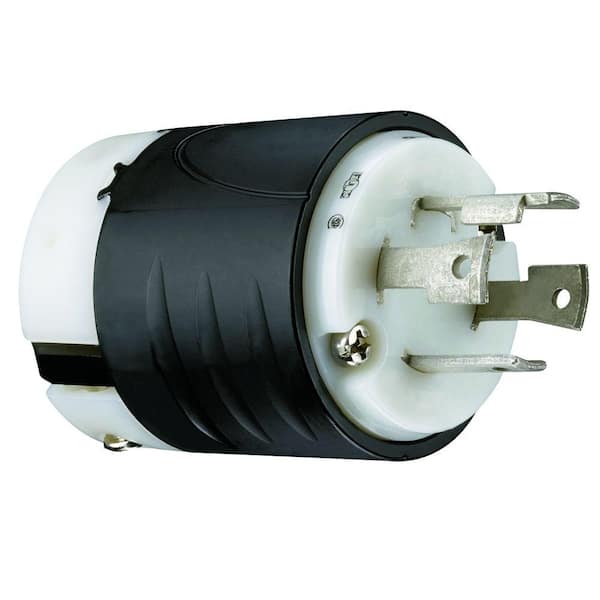

Pass & Seymour Turnlok 30 Amp 125/250-Volt NEMA L14-30P Locking Plug

  • Locking receptacle to prevent items from becoming unplugged
  • Durable construction stands up to impacts, chemicals, and weather
  • Fast and easy to install
$ 19 95

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Locking receptacle to prevent items from becoming unplugged
  • Durable construction stands up to impacts, chemicals, and weather
  • Fast and easy to install
Pass & Seymour Turnlok Plugs are built to work for you, offering years of dependable service in the toughest real-world conditions and delivering maximum productivity on the jobsite. They are typically used to provide additional locking safety measures in industrial environments, where heavy use can sometimes result in loose or broken connections when non-locking devices are used. You’ll see durability and productivity everywhere from our choice of premium materials and uncompromising construction to our superior, innovative designs based on decades of feedback from contractors and MRO professionals.
  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire, saving time and money during installation
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
  • Visible stamped NEMA configuration and device rating for easy and quick identification on the job site
  • Double dovetail design provides superior protection against cord pull-out forces
  • Impact- and corrosion-resistant nylon 6 shell material offers unparalleled durability
  • Rounded back contour reduces snags and hang-ups on the job site
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock
  • External cord grips provide visible assurance of safe and proper cord retention
  • Integral flexible rubber cord grommet conforms to and seals around so cord to provide protection from oils, water, or chips entering wiring chamber
  • Internal dust seal provides optimal protection to the wiring chamber
  • Large operating temperature range - from -40 Celsius to +75 Celsius
  • Rated to FedSpec WC596
  • Note: product may vary by store

Product Overview

  • Locking receptacle to prevent items from becoming unplugged
  • Durable construction stands up to impacts, chemicals, and weather
  • Fast and easy to install
Model #: L1430PCCV3
Sku #: 589506
Internet #: 202525691

Pass & Seymour Turnlok Plugs are built to work for you, offering years of dependable service in the toughest real-world conditions and delivering maximum productivity on the jobsite. They are typically used to provide additional locking safety measures in industrial environments, where heavy use can sometimes result in loose or broken connections when non-locking devices are used. You’ll see durability and productivity everywhere from our choice of premium materials and uncompromising construction to our superior, innovative designs based on decades of feedback from contractors and MRO professionals.

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire, saving time and money during installation
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
  • Visible stamped NEMA configuration and device rating for easy and quick identification on the job site
  • Double dovetail design provides superior protection against cord pull-out forces
  • Impact- and corrosion-resistant nylon 6 shell material offers unparalleled durability
  • Rounded back contour reduces snags and hang-ups on the job site
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock
  • External cord grips provide visible assurance of safe and proper cord retention
  • Integral flexible rubber cord grommet conforms to and seals around so cord to provide protection from oils, water, or chips entering wiring chamber
  • Internal dust seal provides optimal protection to the wiring chamber
  • Large operating temperature range - from -40 Celsius to +75 Celsius
  • Rated to FedSpec WC596
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Best Seller
Brand Legrand Legrand Leviton Leviton
Name Pass & Seymour Turnlok 30 Amp 125-Volt NEMA L5-30P Locking Plug Pass & Seymour Turnlok 30 Amp 125/250-Volt NEMA L14-30P Locking Plug 30 Amp 125/250-Volt Locking Grounding Plug, Black/White 30 Amp 125/250-Volt Industrial Grade Locking Grounding Connector, Black/White
Price
$18.97
$19.95
$19.95
$39.90
Ratings (32) (116) (16) (25)
Connection Type Twist Lock Twist Lock Twist Lock Twist Lock
Maximum Amperage (amps) 30 30 30 30
Electrical Features No Additional Features No Additional Features No Additional Features No Additional Features
Plug/Connector Plug Plug Plug Connector
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.2
Product Height (in.)
5.859
Product Width (in.)
3.65

Details

Color Family
Black
Color/Finish
Black & White
Connection Type
Twist Lock
Electrical Features
No Additional Features
Electrical Product Type
Plug
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Male/Female
Male
Material
Nylon
Maximum Amperage (amps)
30
Mounting Type
Plug-In
NEMA Configuration
NEMA L14
Number of Poles
4
Package Quantity
1
Plug/Connector
Plug
Rating
General Purpose
Returnable
180-Day
UL Listing
1-UL Listed
Voltage
125 volt,250 volt
Wire Type
4-Wire Grounding
Wired or Wireless
Wired

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
1 Year Limited

Specifications

Dimensions

Product Depth (in.)
2.2
Product Height (in.)
5.859
Product Width (in.)
3.65

Details

Color Family
Black
Color/Finish
Black & White
Connection Type
Twist Lock
Electrical Features
No Additional Features
Electrical Product Type
Plug
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Male/Female
Male
Material
Nylon
Maximum Amperage (amps)
30
Mounting Type
Plug-In
NEMA Configuration
NEMA L14
Number of Poles
4
Package Quantity
1
Plug/Connector
Plug
Rating
General Purpose
Returnable
180-Day
UL Listing
1-UL Listed
Voltage
125 volt,250 volt
Wire Type
4-Wire Grounding
Wired or Wireless
Wired

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
1 Year Limited

Questions & Answers

Is this plug sufficient to power a 225 amp Lincoln stick welder ?

Is this plug sufficient to power a 225 amp Lincoln stick welder ?
Asked by: Shamrock
Not at full power. Your machine has a 50 amp plug but If you weld on the lower end of the machines capabilities you can get away with it. If you keep your welder at 150 amps output or less you will most likely have no problems. I rarely go above 120 amps for everyday welding and usually stay around 90 to 100. Use smaller rods 1/8 inch and below and you will be fine. So the answer is yes but with limitations.
Answered by: Mecanik
Date published: 2020-07-01

I am wiring a long extension from my generator to 220 house plug. Four wire male plug on both ends. If

the red wire is attached to the Y side of the plug and the black is attached to the X side, must that be the same on the other end plug or can they be reversed? Plugs are both Pass & Seymour (L1430-P)
Asked by: tuk
This use is illegal. Proper installation would require connection through a transfer switch. First, when connected to the generator, the male pins on the end of the extension expose you to shock. Second, back feeding home wiring is illegal since it depends on disconnecting the main breaker. The potential to backfeed the street wiring puts utility workers at risk of electrocution from what they expect to be dead wires. This local source can even create thousands of volts by backward feeding through supply transformers on the street.
Answered by: Bob
Date published: 2019-07-19

what size wire to use for a generator

what size wire to use for a generator
Asked by: tim
#10 Stranded
Answered by: TheVoice
Date published: 2020-04-30

Can this and the female equivalent be used with #8 wire? I wanted to make a 75ft cord.

Can this and the female equivalent be used with #8 wire? I wanted to make a 75ft cord.
Asked by: Bravia
#8 wire would be to heavy for this connector #10 would be about the largest wire uou would want to use.
Answered by: Ricco
Date published: 2019-01-12
