15 Amp 125-Volt Duplex SmarTest Self-Test SmartlockPro Tamper Resistant GFCI Outlet, Black GFTR1-KE
- Slim design for easy installation vs other GFCIs
- Patented reset lockout prevents reset if protection is lost
- Self-test feature helps ensure GFCI is providing protection
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCI's periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Highlights
- Provides continuous ground fault protection, detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers

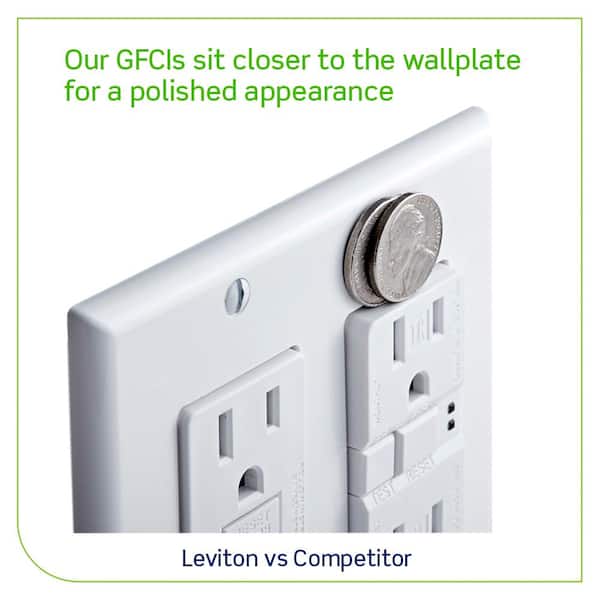

- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options, back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all decora devices and wall plates; available in select decora colors
- UL federal specification WC-596 rated
- Click here to shop more Leviton products
- Captain Code 2023 NEC Code Changes
- Return Policy
Product Information
Specifications
Dimensions
Outlet Depth (in.) | 1.6875 | Outlet Height (in.) | 4.25 |
|---|---|---|---|
Outlet Width (in.) | 2.25 |
Details
Amperage (A) | 15 A | Color Family | Black |
|---|---|---|---|
Color/Finish | Black | Commercial/Residential | Commercial, Residential |
Configuration | Standard | Device Style Type | Outlet w/o Wall Plate |
Durability | Tamper Resistant | Electrical Features | No Additional Features |
Grounding | Grounded | Included | No Additional Items Included |
Indoor/Outdoor | Indoor | Maximum Amperage (A) | 15 A |
Mounting Type | In-Wall | NEMA Configuration | NEMA 5 |
Number of Poles | 2 | Number of Receptacles | 2 |
Outlet Configuration | Duplex | Outlet Location | Wall |
Outlet Material | Thermoplastic | Outlet Type | GFCI |
Package Quantity | 1 | Plug Configuration | 5-15 |
Rating | Tamper Resistant | Receptacle Configuration | 5-15 |
Returnable | 90-Day | Voltage | 125 volt |
Voltage (V) | 125 V | Wire Connection Location | Side |
Wire Connection Type | Screw Terminal |
Warranty / Certifications
Certifications and Listings | CSA Listed, UL Listed | Manufacturer Warranty | 2-Year Limited |
|---|
Questions & Answers
The outlet will not reset and the test button will not push in. is the bathroom outlet gone bad?
sounds like no power to device
Would need to troubleshoot to determine as the GFCI will trip & not reset if there is a ground present.
Can I use this product in the garage
Yes.
Does this work with Decora screwless wallplates?
Yes, the Decora GFCIs will work with Decora screwless wall plates
What does the green/red light mean ?
It indicates power present in the device as well as when the self test fails or is completed.
Does it come with cover
No
Have they improved the tamper-resistant feature so that it?s not next to impossible to plug in something that doesn?t have the grounding, 3rd prong?
This GFCI outlet is tamper-resistant, meaning it's designed to prevent accidental insertion of foreign objects into the outlets. It requires equal pressure on both sides of the outlet for the shutters to open and allow a plug to be inserted. This feature is a safety measure to protect children and prevent electrical shocks. It is not designed to accommodate plugs without a grounding pin.
This GFCI outlet is tamper-resistant, meaning it's designed to prevent accidental insertion of foreign objects into the outlets. It requires equal pressure on both sides of the outlet for the shutters to open and allow a plug to be inserted. This feature is a safety measure to protect children and prevent electrical shocks. It is not designed to accommodate plugs without a grounding pin.
Will this fit a old home metal box
This GFCI measures 1.026" in depth - & will fit in any standard wall box.
install the plug the indicator is green but the reset button does not work and the test button does nothing, what could it be
Switch the top and bottom wires. Leviton GFCI is unusual. If the green light comes on as soon as power is supplied, you have the wires reversed. When you switch top and bottom (not left and right!) and apply power you may see it flash red for a moment before going green then it will work properly.
I had the same issue. I sent it back for a refund.
