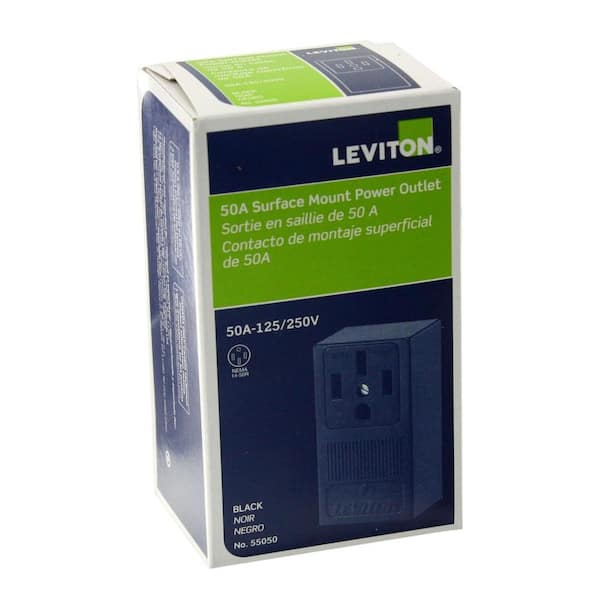

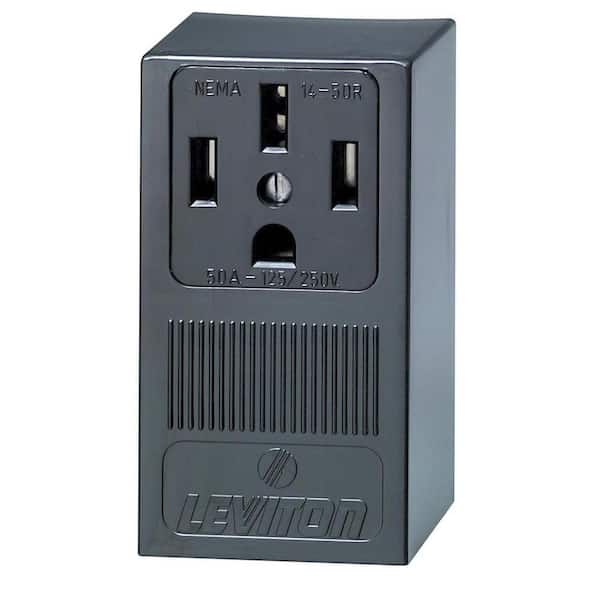

Leviton 50 Amp Single Surface Mounted Single Outlet, Black
0078477100257

Leviton

50 Amp Single Surface Mounted Single Outlet, Black

$ 13 50

Overview

Built of durable thermoplastic, Leviton Power Receptacles - come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. The self-grounding Leviton 50 Amp Single Surface Mounted Outlet is designed for indoor use and is made of thermoplastic for added durability.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

Built of durable thermoplastic, Leviton Power Receptacles - come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. The self-grounding Leviton 50 Amp Single Surface Mounted Outlet is designed for indoor use and is made of thermoplastic for added durability.
  • Thermoplastic material
  • Designed for indoor use
  • Self-grounding
  • UL and CSA listed
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: 55050
Sku #: 449129
Internet #: 202077645

Built of durable thermoplastic, Leviton Power Receptacles - come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. The self-grounding Leviton 50 Amp Single Surface Mounted Outlet is designed for indoor use and is made of thermoplastic for added durability.

  • Thermoplastic material
  • Designed for indoor use
  • Self-grounding
  • UL and CSA listed
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$8.89
$12.98
$12.98
$19.16
Name 50 Amp Flush Mount Shallow Single Outlet, Black 50 Amp Single Surface Mounted Single Outlet, Black 50 Amp 125/250-Volt Surface Mount Straight Blade Power Outlet - Black 50 Amp 125-Volt 5-50R 2-Pole/3-Wire Flush Mount Power Receptacle, Black
Brand Leviton Leviton Legrand Pass and Seymour Eaton
Ratings (98) (71) (29) (0)
Number of Outlets 1 2 1 1
Maximum Amperage (amps) 50 50 50 50
Electrical Features No Additional Features No Additional Features No Additional Features No Additional Features
View Product View Product View Product View Product

Specifications

Dimensions

Outlet Depth (in.)
2.35
Outlet Height (in.)
5.2
Outlet Width (in.)
3

Details

Color Family
Black
Color/Finish
Black
Electrical Features
No Additional Features
Electrical Product Type
Outlet
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Maximum Amperage (amps)
50
Mounting Type
Plug-In
NEMA Configuration
NEMA 14
Number of Outlets
2
Number of Poles
3
Outlet Configuration
Single
Outlet Location
Wall
Outlet Material
Thermoplastic
Outlet Type
Standard
Package Quantity
1
Rating
General Purpose
Returnable
90-Day
UL Listing
1-UL Listed
Voltage
125 volt,250 volt

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
10 Year Limited

Specifications

Dimensions

Outlet Depth (in.)
2.35
Outlet Height (in.)
5.2
Outlet Width (in.)
3

Details

Color Family
Black
Color/Finish
Black
Electrical Features
No Additional Features
Electrical Product Type
Outlet
Grounding
Self-Grounding
Indoor/Outdoor
Indoor
Maximum Amperage (amps)
50
Mounting Type
Plug-In
NEMA Configuration
NEMA 14
Number of Outlets
2
Number of Poles
3
Outlet Configuration
Single
Outlet Location
Wall
Outlet Material
Thermoplastic
Outlet Type
Standard
Package Quantity
1
Rating
General Purpose
Returnable
90-Day
UL Listing
1-UL Listed
Voltage
125 volt,250 volt

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
10 Year Limited

Questions & Answers

I bought this outlet for a range, It's a 4 prong outlet I only have 3 wires coming out of the wall

This outlet is 4 prong outlet, I want to know if you can still wire it for a rang when I only 3 wires coming out of the wall? I have white,black & a copper wire coming out of the wire. Can I still use this outlet or do I need a 3 prong outlet? Thanks.
Asked by: janetscowboy
You would use a 3 prong outlet in this case.
Answered by: frankft
Date published: 2018-11-19

Which box (for in the wall) goes with this product?

Which box (for in the wall) goes with this product?
Asked by: ChrisP
This unit does not have a box for an in-wall mounting option.
Answered by: CommunityAnswer
Date published: 2018-11-20

What does self grounding mean? The other brand says isolated ground.

What does self grounding mean? The other brand says isolated ground.
Asked by: KenM
Metal bracket that comprises back and bottom of receptacle is bonded to ground terminal. Wire does not have to be terminated with separate screw to ground the "box " portion of outlet.
Answered by: Aandcelectric
Date published: 2018-12-21

Can you change it so the ground is on top?

Can you change it so the ground is on top?
Asked by: james
Yes, you can feed and route the wires to any lug in the unit
Answered by: friendx4
Date published: 2018-12-04
  • y_2019, m_2, d_16, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_6
  • loc_, sid_202077645, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 28ms
  • QUESTIONS, PRODUCT

Customer Reviews

50 Amp Single Surface Mounted Single Outlet, Black is rated 4.5 out of 5 by 71.
Rated 2 out of 5 by from The screw terminals are flimsy. They are a two-part design with a hinge on one side and it was d... The screw terminals are flimsy. They are a two-part design with a hinge on one side and it was difficult to get the hinged part to close over the wire so the screw could be tightened. Also, the screw comes down directly onto the wire, grinding into the strands, and broke off many strands. A ferrule should probably be used. Or find a better quality outlet with better designed terminals.
Date published: 2019-01-29
Rated 5 out of 5 by from Good product, easy installation. Terminal straps make installation easier and provides confidenc... Good product, easy installation. Terminal straps make installation easier and provides confidence in installation. Recommend this product.
Date published: 2018-12-18
Rated 3 out of 5 by from Was not overly impressed by the quality, so used a... Was not overly impressed by the quality, so used a different brand. Will be returning this one.
Date published: 2019-02-07
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-02-07
Rated 5 out of 5 by from Nice sturdy solid outlet. Good quality.... Nice sturdy solid outlet. Good quality.
Date published: 2018-12-27
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2019-02-06
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2019-02-07
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-02-06
