Align Right Cabinet Hardware Installation Template Set

  • Installation of cabinet knobs and pulls made easy
  • Includes template for both drawers and doors, plus a drill bit
  • Provides various center-to-center pull lengths up to 4 inches
  • See More Details
$794

Product Overview

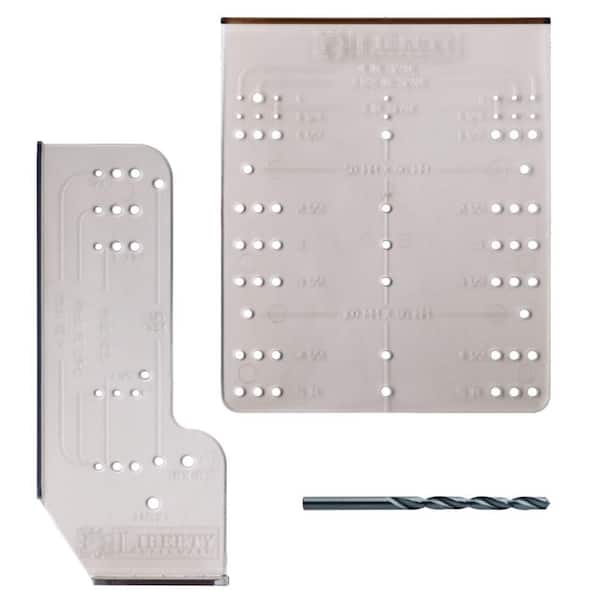

The Liberty Cabinet and Drawer Pull Installation Template makes cabinet pulls easy to install in 3 quick steps. It provides various center-to-center measurements up to 4 in. to help you easily mark and drill correctly placed mounting holes. It comes with a 3/16 in. drill bit.
  • Template helps install cabinet pulls
  • Easy to use, plastic template
  • Green color helps ensure readable measurements
  • Provides up to 4 in. center to center measurement
