Internet #300388434

Model # FXP1702

0728865124524

Louisville Ladder

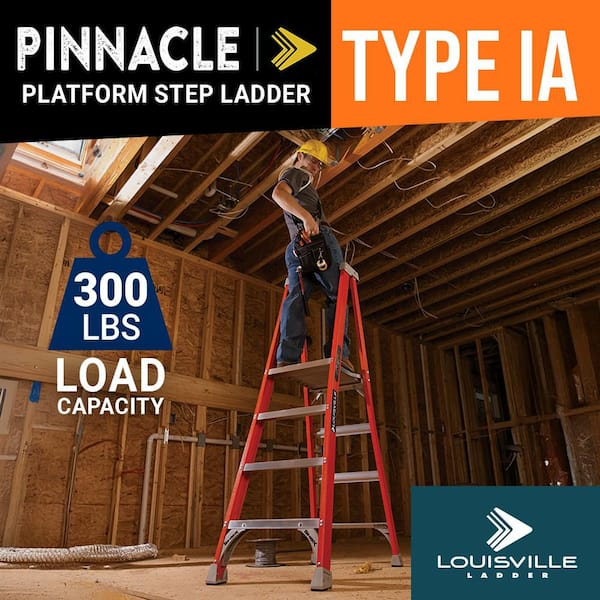

2 ft. Fiberglass Pinnacle Platform Ladder with 300 lbs. Load Capacity Type IA Duty Rating

$ 114 13
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

This Louisville 2 ft. Pinnacle Platform step ladder has a 300lbs. load capacity, rated ANSI Type IA. It features a 30 in. extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces and double-rivet step construction. The Louisville FXP1702 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA and OSHA.
  • 3 in. Tall extended handrail from top to platform
  • 3% Larger platform area for added comfort and safety
  • ProTop with multiple tool slots and magnet
  • Raptor slip-resistant boot
  • Shox impact absorption system
  • Double-rivet step construction
  • Wide back braces

Product Overview

Model #: FXP1702
Internet #: 300388434

This Louisville 2 ft. Pinnacle Platform step ladder has a 300lbs. load capacity, rated ANSI Type IA. It features a 30 in. extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces and double-rivet step construction. The Louisville FXP1702 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA and OSHA.

  • 3 in. Tall extended handrail from top to platform
  • 3% Larger platform area for added comfort and safety
  • ProTop with multiple tool slots and magnet
  • Raptor slip-resistant boot
  • Shox impact absorption system
  • Double-rivet step construction
  • Wide back braces

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Louisville Ladder Louisville Ladder Louisville Ladder Louisville Ladder
Name 2 ft. Fiberglass Pinnacle Platform Ladder with 300 lbs. Load Capacity Type IA Duty Rating 3 ft. Fiberglass Pinnacle Platform Ladder with 300 lbs. Load Capacity Type IA Duty Rating 8 ft. Fiberglass Pinnacle Platform Ladder with 300 lbs. Load Capacity Type IA Duty Rating 12 ft. Fiberglass Pinnacle Platform Ladder with 300 lbs. Load Capacity Type IA Duty Rating
Price
$114.13
$155.33
$330.00
$453.19
Ratings (15) (15) (15) (15)
Product Weight (lb.) 18 lb 21 lb 48 lb 73 lb
Ladder Rating Type 1A - 300 lbs. Type 1A - 300 lbs. Type 1A - 300 lbs. Type 1A - 300 lbs.
Reach Height (ft.) 8.5 9.4 14.2 18
Material Fiberglass Fiberglass Fiberglass Fiberglass
View Product View Product View Product View Product

Specifications

Dimensions

Base Spread (in.)
33 in
Industry Standard Ladder Height (ft.)
2
Platform Length (ft.)
1.75
Platform Width (ft.)
1.3
Reach Height (ft.)
8.5
Rung/Step Depth
3 in
Step Ladder Maximum Height - Closed (ft.)
4.8
Step Ladder Minimum Height - Open (ft.)
4.3
Step Rise (in.)
12
Storage Height (ft.)
4.8

Details

Ladder Rating
Type 1A - 300 lbs.
Ladder Type
Hybrid
Load Weight Capacity (lb.)
300 lb.
Material
Fiberglass
Product Weight (lb.)
18 lb
Returnable
90-Day
Rung/Step Material
Aluminum

Warranty / Certifications

Certifications and Listings
ANSI Certified,OSHA Compliant
Manufacturer Warranty
90 days limited

Specifications

Dimensions

Base Spread (in.)
33 in
Industry Standard Ladder Height (ft.)
2
Platform Length (ft.)
1.75
Platform Width (ft.)
1.3
Reach Height (ft.)
8.5
Rung/Step Depth
3 in
Step Ladder Maximum Height - Closed (ft.)
4.8
Step Ladder Minimum Height - Open (ft.)
4.3
Step Rise (in.)
12
Storage Height (ft.)
4.8

Details

Ladder Rating
Type 1A - 300 lbs.
Ladder Type
Hybrid
Load Weight Capacity (lb.)
300 lb.
Material
Fiberglass
Product Weight (lb.)
18 lb
Returnable
90-Day
Rung/Step Material
Aluminum

Warranty / Certifications

Certifications and Listings
ANSI Certified,OSHA Compliant
Manufacturer Warranty
90 days limited

Questions & Answers

Can you delivery to Hong Kong with Fedex

Can charger me too
Asked by: Gary
This is a question for Home Depot to answer, I don't know their shipping process.
Answered by: Ladder Pro
Date published: 2018-07-26

What is the over all length of the ladder?

What is the over all length of the ladder?
Asked by: BJay
We have two versions of this ladder we have the FXP1708 and the total height is 10'-1" and we have the FXP1708XL and the total height is 10'-7"
Answered by: Ladder Pro
Date published: 2018-10-24

When the ladder is in the open position what is the overall height?

Asked by: Jeff
We have two models of Type IA Pinnacle 12' ladders. First one is FXP1712 and it's height when fully opened is 13'-11" and the second one is FXP1712XL and it's height when fully opened is 14'-5"
Answered by: Ladder Pro
Date published: 2019-01-08
  • y_2019, m_7, d_22, h_16CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_300388434, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 17ms
  • QUESTIONS, PRODUCT

Customer Reviews

2 ft. Fiberglass Pinnacle Platform Ladder with 300 lbs. Load Capacity Type IA Duty Rating is rated 4.9 out of 5 by 15.
Rated 4 out of 5 by from Its a nice ladder but only good for a certain height which I sized before buying. The platform is... Its a nice ladder but only good for a certain height which I sized before buying. The platform is so comfortable and the ladder is stable on uneven ground. The tool holder is made for some other trade then carpentry my hammer doesn't fit no good place for a drill.
Date published: 2019-07-16
Rated 5 out of 5 by from t reaches up to 18’ with a 5’-10” individual on... t reaches up to 18’ with a 5’-10” individual on top of it, great design and light compared to other 14’ ladders
Date published: 2019-04-30
Rated 5 out of 5 by from great for things just out of the reach. Have... great for things just out of the reach. Have a stable base to stand on.
Date published: 2019-06-26
Rated 5 out of 5 by from Bought to be able to clean our ceiling fans. This ladder has a large platform & excellent hand & ... Bought to be able to clean our ceiling fans. This ladder has a large platform & excellent hand & body support.
Date published: 2019-01-08
Rated 5 out of 5 by from I am an electrician and change out light fixtures on... I am an electrician and change out light fixtures on 18’ ceilings and this ladder is perfect for the job. Light enough for me to handle by myself and the platform is exponentially better than standing on a rung.
Date published: 2018-06-30
Rated 5 out of 5 by from Great ... Great
Date published: 2018-12-11
Rated 5 out of 5 by from it is perfect for my needs and feel very safe... it is perfect for my needs and feel very safe
Date published: 2018-09-11
Rated 5 out of 5 by from It's great when the work is in reasonable range of... It's great when the work is in reasonable range of the platform. Cumbersome to move, not a one person job. Adjustable leveling legs would be a great addition.
Date published: 2018-07-10
