Internet #206116080

Model #HN5068L002WL

60 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door with Built in Blinds

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
  • See More Details

Frequently Bought Together

+
+
Price:
$138638

Product Overview

Make a smart addition to your home with the MasterPiece Series Hinged Fiberglass Patio Door by MP Doors. The fiberglass door panels with complete composite edging and full composite frames are 100% waterproof and resist rotting, warping, splitting, delaminating, denting and rusting. Loaded with energy efficient features, this hinged door comes double bored and includes patented water-resistant draining system and weather-stripping insulation. Both the main active panel and the secondary passive panel are operable. Open both door panels to reveal a wide clear opening with no center post to hinder your view. The secondary passive panel comes with 2 flush bolt locks that secure into the top and bottom frame when closed. This low maintenance door is engineered to withstand a lifetime of use and offers peace of mind that your door will remain beautiful for years to come.
  • Lifetime warranty for peace of mind
  • Frame made of 100% composite waterproof material, will never rot
  • Full composite edged high-density fiberglass door panels withstand harsh weather conditions
  • Door size: 60 in. x 80 in. actual unit dimension: 58-3/4 in. x 79-1/4 in. Frame: 4-9/16 in. net
  • Flush glazed door for added architectural appeal and easy maintenance
  • Will not rust like metal doors, will not rot like wood doors and frames
  • Factory assembled door system for a precise fit and easy installation
  • Double bored to accommodate handle set of your choice
  • Double astragal system produces a secure weather-tight seal without a center post between the doors
  • Operable secondary passive panel, includes 2 flush bolts to secure panel to top and bottom of frame when closed
  • Paintable smooth interior and exterior surface
  • Insulating CFC-free polyurethane foam core and Included weather stripping for added energy efficiency
  • Sturdy doors measure 1-3/4 in. thickness
  • Adjustable raise, lower and tilt mini blinds between the glass provide privacy when needed without external attachments to the door

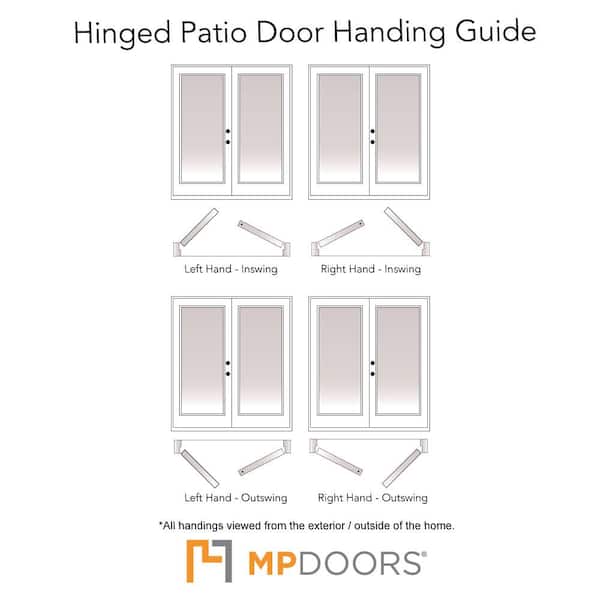

  • Left Hand Inswing Patio Door – from the exterior of the home, the panel on the left is the primary active panel and opens towards the inside of the home with the hinges on the left. The panel on the right is the secondary passive panel. Both panels are operable, leaving a clear opening.
  • Adjustable raise, lower and tilt mini blinds between the glass provide privacy when needed without external attachments to the door
  • Left hand inswing patio door – from the exterior of the home, the panel on the left is the primary active panel and opens towards the inside of the home with the hinges on the left; the panel on the right is the secondary passive panel; both panels are operable, leaving a clear opening

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Patio Doors

current product
60 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door with Built in Blinds
60 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door with Low E Built in Blinds60 in. x 80 in. Fiberglass Smooth White Left-Hand Outswing Hinged Patio Door with Low E Built in Blinds
BrandMP DoorsMP DoorsMP Doors
Name60 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door with Built in Blinds60 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door with Low E Built in Blinds60 in. x 80 in. Fiberglass Smooth White Left-Hand Outswing Hinged Patio Door with Low E Built in Blinds
Price
$138638
$149212
$159900
Ratings
(69)
(33)
(33)
Door TypeFrench Patio DoorFrench Patio DoorFrench Patio Door
Door HandingLeft-Hand/InswingRight-Hand/OutswingLeft Hand/Outswing
Door ConfigurationDouble DoorDouble DoorDouble Door
MaterialFiberglassFiberglassFiberglass
Finish TypeFinishedFinishedFinished
FeaturesBlinds Between the Glass,Lockset Bore (Double Bore),WeatherstrippingBlinds Between the Glass,Lockset Bore (Double Bore),WeatherstrippingBlinds Between the Glass,Lockset Bore (Double Bore),Weatherstripping
IncludedInstructionsInstructionsInstructions
Bore TypeDouble BoreDouble BoreDouble Bore
Frame MaterialCompositeCompositeComposite
Number of Lites1 Lite1 Lite1 Lite
View ProductView ProductView Product

Specifications

Dimensions

Actual Door Height (in.)
79.25
Actual Door Thickness (in.)
1.75
Actual Door Width (in.)
58.75
Door Height (in.)
80
Door Thickness (in.)
1.75
Door Width (in.)
60
Nominal Door Height (in.)
80
Nominal Door Thickness (in.)
1.75
Nominal Door Width (in.)
60
Rough Opening Height (In.)
79.75
Rough Opening Width (In.)
59.5

Details

Bore Type
Double Bore
Color Family
White
Color/Finish
Smooth White Exterior and Interior
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Double-Glazed,Tempered
Door Handing
Left-Hand/Inswing
Door Type
French Patio Door
Features
Blinds Between the Glass,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Finished
Frame Material
Composite
Hinge Type
Standard
Included
Instructions
Material
Fiberglass
Number of Lites
1 Lite
Product Weight (lb.)
240
Returnable
180-Day

Warranty / Certifications

Energy Star Qualified
Not Qualified
Manufacturer Warranty
Limited Lifetime

Questions & Answers

94Questions11Answers

Purchased two of these (SKU 1001-562-965, REF# S0101 and S0102). Ok, overall I'm happy with the d...

Asked by benz139 November 2, 2020
2
Answers

Hi benz139, Sorry to hear you are having an issue with the glass. Please call customer care at 888-366-7717. Thank you.

Can you give me some idea about how much it costs to install by a pro?

Asked by ootee October 4, 2020
1
Answer

My installer charged me about $700 to install. It took about 4 hours to get them installed and shimmed correctly which is more than a standard wood framed door assembly.

Is it available in colors other than white?

Asked by dave September 4, 2020
1
Answer

Hi dave, Factory colors are not available for this model at this time. The door can be painted if desired. Thank you.

Is it available in 64x80 or similar size less than 72 wide?

Asked by dave September 4, 2020
1
Answer

Hi dave, This model is also available in one other size of 60" x 80". Thank you.

How do you adjust these doors there is no jacking screw?

Asked by Rodney September 3, 2020
1
Answer

Hi Rodney, No adjustment should be needed if the the frame is properly shimmed during installation. However, adjustable shim screws can be used with the frame if desired. Thank you.

What happens if the enclosed blinds do not work properly?

Asked by kathleen September 2, 2020
1
Answer

Hi kathleen, Blinds are operated by a magnet system that can be reset if needed. The glass and/or panels can also be replaced if something more serious were to occur. Thank you.

Can I get a screen for this door?

Asked by kathleen September 2, 2020
1
Answer

Hi kathleen, We recommend the Luminaire or Brisa retractable screen systems. They are designed to work with french style patio doors. Thank you.

is this door energy star rated?

Asked by Shelly August 15, 2020
1
Answer

Hi Shelly, This model is not Energy Star rated as it has clear glass. We offer the same model with LowE blinds glass that is Energy Star rated in the Northern and North Central zones. Thank you.

Can this Door be bought in a Sand / Tan Color ? I Need to match the rest of my windows ?

Asked by Chops August 14, 2020
1
Answer

Hi Chops, Factory colors are not available for this model at this time but it can be painted. Thank you.

Can these doors be made for 2'x6' walls

Asked by Sam July 21, 2020
1
Answer

Hi Sam, This model is not currently available with a 6-9/16" jamb from the factory at this time. Thank you.

60 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door with Built in Blinds - page 2

Customer Reviews

  • 69 Customer Reviews
  • 4.3 out of 5 stars overall
85% of customers recommended.
Overall Ratings
5star-icon(43)
4star-icon(14)
3star-icon(3)
2star-icon(5)
1star-icon(4)
Sort By:
This door had hinges that were so poorly and incorrectly placed that we could barely get the door...
Appearance :
4
Ease of installation :
3
Value :
2
Quality :
2
This door had hinges that were so poorly and incorrectly placed that we could barely get the door closed. The hinges on the active side of the door were set 1/2" too far into the frame, causing the door to bind on the seal, preventing it from closing correctly. The top bolt on the passive side of the door did not engage the strike plate correctly and could not be locked without extreme pressure. The strike plate was incorrectly located in the frame. I have attached a picture that shows the door from the inside, on the active side of the door. You can easily see that the door is setting 1/2" in from the edge of the frame. There is a second picture that shows the hinge with the door open, you can see the hinge is right up against the frame, not where it should be.
Was this helpful?
0
0
Excellent
Excellent
Was this helpful?
0
0
So far so good... the blind handle wasn’t lined up inside on one side so blinds would slowly drop...
So far so good... the blind handle wasn’t lined up inside on one side so blinds would slowly drop but I got the courage up to push up harder and it popped in. Sometimes the bottom last few inches when you lower the blinds get cocked but just have to tilt them a couple times and they fall in place..
Was this helpful?
1
0
The door is great. To bad it is almost twice the price as the bigger, standard size. 80 x 72 is o...
The door is great. To bad it is almost twice the price as the bigger, standard size. 80 x 72 is only around $800.
Was this helpful?
1
0
Door was shipped in a very sturdy frame to prevent any damage and easy to handle. Door installed...
Door was shipped in a very sturdy frame to prevent any damage and easy to handle. Door installed without any major issues. Screws provided to secure door frame appeared to be of a soft metal and stripped easily. Recommend you purchase a separate / more reliable screw(s) before installing.
Was this helpful?
0
0
Definitely a 2 man job to install and if a replacement may need to buy additional trim and thresh...
Definitely a 2 man job to install and if a replacement may need to buy additional trim and threshold materials to insure water proofing. Especially if previous door not installed squarely. Driving rain makes using door tricky to prevent getting floor wet. Recommend an awning above this style door
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Doors look great. It did take a little time to...
Doors look great. It did take a little time to get the fiberglass frame plumb and square, but they work perfectly.
Was this helpful?
0
0
dimensional accuracy of these doors were poor and made for...
dimensional accuracy of these doors were poor and made for difficult installation.
Was this helpful?
0
0
