Model #HT5068L002WL

60 in. x 80 in. Fiberglass Smooth White Left-Hand Outswing Hinged Patio Door with Built in Blinds

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
  • See More Details

Frequently Bought Together

+
Price:

Product Overview

Make a smart addition to your home with the MasterPiece Series Hinged Fiberglass Patio Door by MP Doors. The fiberglass door panels with complete composite edging and full composite frames are 100% waterproof and resist rotting, warping, splitting, delaminating, denting and rusting. Loaded with energy efficient features, this hinged door comes double bored and includes patented water-resistant draining system and weather-stripping insulation. Both the main active panel and the secondary passive panel are operable. Open both door panels to reveal a wide clear opening with no center post to hinder your view. The secondary passive panel comes with 2 flush bolt locks that secure into the top and bottom frame when closed. This low maintenance door is engineered to withstand a lifetime of use and offers peace of mind that your door will remain beautiful for years to come.
  • Lifetime warranty for peace of mind
  • Frame made of 100% composite waterproof material, will never rot
  • Full composite edged high-density fiberglass door panels withstand harsh weather conditions
  • Door size: 60 in. x 80 in. actual unit dimension: 58-3/4 in. x 79-1/4 in. Frame: 4-9/16 in. net
  • Flush glazed door for added architectural appeal and easy maintenance
  • Will not rust like metal doors, will not rot like wood doors and frames
  • Factory assembled door system for a precise fit and easy installation
  • Double bored to accommodate handle set of your choice
  • Double astragal system produces a secure weather-tight seal without a center post between the doors
  • Operable secondary passive panel, includes 2 flush bolts to secure panel to top and bottom of frame when closed
  • Paintable smooth interior and exterior surface
  • Insulating CFC-free polyurethane foam core and Included weather stripping for added energy efficiency
  • Patented water-resistant draining system
  • Sturdy doors measure 1-3/4 in. thickness
  • Adjustable raise, lower and tilt mini blinds between the glass provide privacy when needed without external attachments to the door

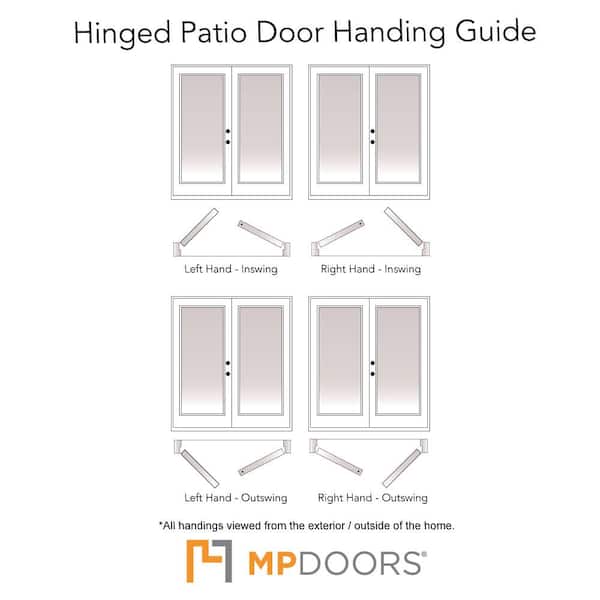

  • Left Hand Outswing Patio Door – from the exterior of the home, the panel on the left side is the primary active panel and opens towards the outside of the home with the hinges on the left. The panel on the right is the secondary passive panel. Both panels are operable, leaving a clear opening.
  • Left hand outswing patio door – from the exterior of the home, the panel on the left side is the primary active panel and opens towards the outside of the home with the hinges on the left; the panel on the right is the secondary passive panel; both panels are operable, leaving a clear opening

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Patio Doors

72 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door
current product
60 in. x 80 in. Fiberglass Smooth White Left-Hand Outswing Hinged Patio Door with Built in Blinds
60 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door with Built in Blinds60 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door with Built in Blinds
BrandMP DoorsMP DoorsMP DoorsMP Doors
Name72 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door60 in. x 80 in. Fiberglass Smooth White Left-Hand Outswing Hinged Patio Door with Built in Blinds60 in. x 80 in. Fiberglass Smooth White Left-Hand Inswing Hinged Patio Door with Built in Blinds60 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door with Built in Blinds
Price
Ratings
(101)
(80)
(79)
(80)
Door TypeFrench Patio DoorFrench Patio DoorFrench Patio DoorFrench Patio Door
Door HandingLeft-Hand/InswingLeft Hand/OutswingLeft-Hand/InswingRight-Hand/Outswing
Door ConfigurationDouble DoorDouble DoorDouble DoorDouble Door
MaterialFiberglassFiberglassFiberglassFiberglass
Finish TypeFinishedFinishedFinishedFinished
FeaturesArgon Filled Glass,Lockset Bore (Double Bore),WeatherstrippingBlinds Between the Glass,Lockset Bore (Double Bore),WeatherstrippingBlinds Between the Glass,Lockset Bore (Double Bore),WeatherstrippingBlinds Between the Glass,Lockset Bore (Double Bore),Weatherstripping
IncludedInstructionsInstructionsInstructionsInstructions
Bore TypeDouble BoreDouble BoreDouble BoreDouble Bore
Number of Lites1 Lite1 Lite1 Lite1 Lite
Frame MaterialCompositeCompositeCompositeComposite
View ProductView ProductView ProductView Product

Specifications

Dimensions

Actual Door Height (in.)
79.25
Actual Door Thickness (in.)
1.75
Actual Door Width (in.)
58.75
Door Height (in.)
80
Door Thickness (in.)
1.75
Door Width (in.)
60
Nominal Door Height (in.)
80
Nominal Door Height (in.)
80
Nominal Door Thickness (in.)
2
Nominal Door Thickness (in.)
1.75
Nominal Door Width (in.)
60
Nominal Door Width (in.)
60
Rough Opening Height (In.)
79.75
Rough Opening Width (In.)
59.5

Details

Bore Type
Double Bore
Color Family
White
Color/Finish
Smooth White Exterior and Interior
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Double-Glazed,Tempered
Door Handing
Left Hand/Outswing
Door Type
French Patio Door
Features
Blinds Between the Glass,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Finished
Frame Material
Composite
Hinge Type
Standard
Included
Instructions
Material
Fiberglass
Number of Lites
1 Lite
Product Weight (lb.)
240
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
Not Qualified
Manufacturer Warranty
Limited Lifetime

Questions & Answers

104Questions11Answers

Is this door painted by factory white?

Asked by frank March 5, 2021
2
Answers

Hi frank, Yes this model comes painted white from the factory. Thank you.

Can you buy just the insert

Asked by Steve February 12, 2021
1
Answer

Hi Steve, This model is only available as a fully assembled door unit at this time. Thank you.

Can both doors be open at the same time to allow huge furniture/object through? Meaning is there ...

Asked by Interested December 26, 2020
1
Answer

Hi Interested, Both doors can be operated with no post in the middle for one clear opening. Thank you.

Which screen door works with this patio door? I just bought this door and am looking for a slidi...

Asked by AH November 14, 2020
1
Answer

Hi AH, Depending on your location the local store may have the screen that is made for this MP door in stock. They are manufactured by Screen Tight and the SKU number is 1005447857. The dimensions are 36" x 77-5/8" for this 6’ wide door and any screen this size will work. Most screens are reversible and need to be flipped depending on the handing of the door. There is also an adjustable screen from Unique Home Designs that will work, SKU #1003835122. Other screens that fit and may be found in stock are the Andersen, American Craftsman and Jeldwen 2500. Thank you

can you paint the doors? thanks

Asked by mE November 6, 2020
1
Answer

Hi mE, Yes these doors can be painted. If a dark color is desired, a product with a heat reflective pigment or formula should be used. Thank you.

Is the width of both doors combined 60 inches?

Asked by liz October 22, 2020
1
Answer

Hi Liz, The actual unit dimension for this model, including the frame, is 59-1/4". Both door can be operated for a clear opening that is a few inches less than that. Thank you.

How much is instalation charge?

Asked by Judy September 3, 2020
1
Answer

Judy, check with your local Home Depot for installation pricing, each city or region of the country charges different for installation

are these impact doors?

Asked by RJ August 23, 2020
1
Answer

HI RJ, This model does not include impact glass. Thank you.

Are the hinges 180 degrees?

Asked by DG August 20, 2020
1
Answer

Hi DG, Yes the hinges will swing 180 degrees depending on the type of trim and/or siding that used. Thank you.

Are they prehung?

Asked by Jessica August 12, 2020
1
Answer

HI Jessica, Yes this model will ship fully assembled and ready for installation. Thank you.
