Model # HT6068R00201

Internet #206116167

MP Doors 72 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door
0885196000702

MP Doors

72 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
$89222 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
Make a smart addition to your home with the MasterPiece Series Hinged Fiberglass Patio Door by MP Doors. Engineered with Hydroshield Technology, the fiberglass door panels with complete composite edging and full composite frames are 100% waterproof and resist rotting, warping, splitting, delaminating, denting and rusting. Loaded with energy efficient features, this hinged door comes double bored and includes patented water-resistant draining system and weather-stripping insulation. Both the main active panel and the secondary passive panel are operable. Open both door panels to reveal a wide clear opening with no center post to hinder your view. The secondary passive panel comes with 2 flush bolt locks that secure into the top and bottom frame when closed. This low maintenance door is engineered to withstand a lifetime of use and offers peace of mind that your door will remain beautiful for years to come.
  • Lifetime warranty
  • Frame made of 100% composite waterproof material, will never rot
  • Full composite edged high-density fiberglass door panels withstand harsh weather conditions
  • Flush glazed door for added architectural appeal and easy maintenance
  • Tempered, high-performance insulated low-E glass with argon
  • Double bored to accommodate handle set of your choice
  • Double astragal system produces a secure weather-tight seal without a center post between the doors
  • Operable secondary passive panel, includes 2 flush bolts to secure panel to top and bottom of frame when closed
  • Paintable smooth interior and exterior surface
  • Energy Star qualified everywhere in the United States, helps keep your home cool in the summer and warm in the winter
  • Included weather-stripping for added insulation and energy efficiency
  • Patented water-resistant draining system
  • Sturdy doors measure 1-3/4 in. thickness

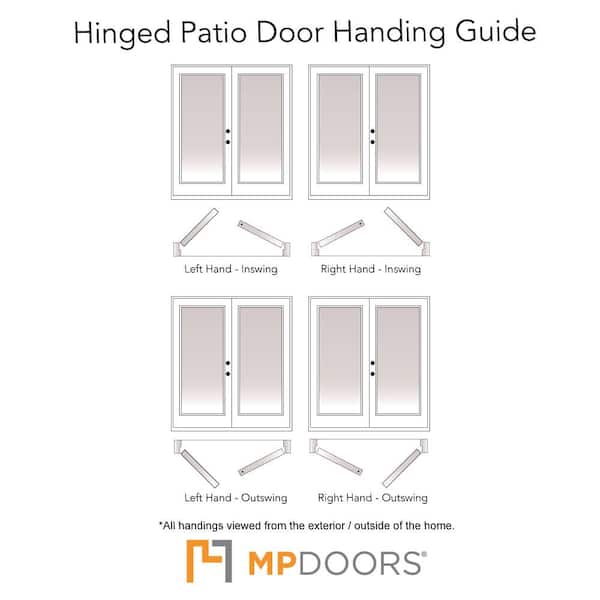

  • Right hand outswing patio door - from the exterior of the home, the panel on the right side is the primary panel and opens towards the outside of the home with the hinges on the right; the panel on the left is the secondary passive panel; both panels are operable, leaving a clear opening

Product Overview

  • Lifetime warranty
  • Full composite frame system, will never rot
  • High-performance fiberglass flush glaze door for easy maintenance
Model #: HT6068R00201
Internet #: 206116167

Make a smart addition to your home with the MasterPiece Series Hinged Fiberglass Patio Door by MP Doors. Engineered with Hydroshield Technology, the fiberglass door panels with complete composite edging and full composite frames are 100% waterproof and resist rotting, warping, splitting, delaminating, denting and rusting. Loaded with energy efficient features, this hinged door comes double bored and includes patented water-resistant draining system and weather-stripping insulation. Both the main active panel and the secondary passive panel are operable. Open both door panels to reveal a wide clear opening with no center post to hinder your view. The secondary passive panel comes with 2 flush bolt locks that secure into the top and bottom frame when closed. This low maintenance door is engineered to withstand a lifetime of use and offers peace of mind that your door will remain beautiful for years to come.

  • Lifetime warranty
  • Frame made of 100% composite waterproof material, will never rot
  • Full composite edged high-density fiberglass door panels withstand harsh weather conditions
  • Flush glazed door for added architectural appeal and easy maintenance
  • Tempered, high-performance insulated low-E glass with argon
  • Double bored to accommodate handle set of your choice
  • Double astragal system produces a secure weather-tight seal without a center post between the doors
  • Operable secondary passive panel, includes 2 flush bolts to secure panel to top and bottom of frame when closed
  • Paintable smooth interior and exterior surface
  • Energy Star qualified everywhere in the United States, helps keep your home cool in the summer and warm in the winter
  • Included weather-stripping for added insulation and energy efficiency
  • Patented water-resistant draining system
  • Sturdy doors measure 1-3/4 in. thickness
  • Right hand outswing patio door - from the exterior of the home, the panel on the right side is the primary panel and opens towards the outside of the home with the hinges on the right; the panel on the left is the secondary passive panel; both panels are operable, leaving a clear opening

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Door Height (in.)
79.25
Door Thickness (in.)
1.75
Door Width (in.)
70.75
Rough Opening Height (In.)
80
Rough Opening Width (In.)
71.5

Details

Bore Type
Double Bore
Color Family
White
Color/Finish
Smooth White Exterior and Interior
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Double-Glazed,Low-E,Tempered
Door Handing
Right-Hand/Outswing
Door Type
French Patio Door
Features
Argon Filled Glass,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Finished
Frame Material
Composite
Glass Type
1 Lite
Hinge Type
Standard
Included
No Additional Items Included
Material
Fiberglass
Product Weight (lb.)
250lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
Lifetime Limited

Specifications

Dimensions

Door Height (in.)
79.25
Door Thickness (in.)
1.75
Door Width (in.)
70.75
Rough Opening Height (In.)
80
Rough Opening Width (In.)
71.5

Details

Bore Type
Double Bore
Color Family
White
Color/Finish
Smooth White Exterior and Interior
Core Type
Solid Core
Door Configuration
Double Door
Door Glass Insulation
Double-Glazed,Low-E,Tempered
Door Handing
Right-Hand/Outswing
Door Type
French Patio Door
Features
Argon Filled Glass,Lockset Bore (Double Bore),Weatherstripping
Finish Type
Finished
Frame Material
Composite
Glass Type
1 Lite
Hinge Type
Standard
Included
No Additional Items Included
Material
Fiberglass
Product Weight (lb.)
250lb
Returnable
90-Day

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
Manufacturer Warranty
Lifetime Limited

Questions & Answers

Do both doors fully swing out?

Is there a stationary door, or do both doors swing out with no obstruction in the doorway?
Asked by: Kenneth
The left side does using a metal or aluminum type handle. The right side of the french door is anchored in the floor. After releasing the anchor, yes it will open also. Do screens come with this?
Answered by: betsy
Date published: 2017-09-05

Do the doors open right back (180 degrees) so they can be pushed back flush against the outside wall?

Asked by: Handy1
Yes, they will open this way.
Answered by: CommunityAnswer
Date published: 2017-09-05

LOCK AND HANDLE SUGGESTIONS

Hi, due to the weather strip being attached to the outswinging door there does not seem to be enough room to fit a lock mechanism. There is only 1/4 " between the weatherstrip and the pre drilled setting for the lock mechanism. Is there a particular lock that sits that tight or has the weather strip being positioned asymmetrically? Help!
Asked by: koa
Thank you for your interest. The door has been tested with multiple brands of lock sets and there were no issues. There is an astragal on both panels, both inside and outside, to create the best possible seal where they meet in the middle.
Answered by: MasterPiece
Date published: 2016-03-01

What is the backset measurement for this door?

What is the backset measurement for this door?
Asked by: BuyingHardware
Hi BuyingHardware, The backset on this model is 2-3/8" which is very common. The back plate that sits flush against the panel must be 2.75" or less in diameter. Thank you.
Answered by: BrandAnswers
Date published: 2017-10-13
  • y_2017, m_11, d_16, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_22
  • loc_, sid_206116167, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 13ms
  • QUESTIONS, PRODUCT

Customer Reviews

72 in. x 80 in. Fiberglass Smooth White Right-Hand Outswing Hinged Patio Door is rated 4.1 out of 5 by 7.
Rated 5 out of 5 by from Solid door, easy install We installed an outswing where a pair of windows existed. We reframed the existing rough opening to fit this standard size door and it was easy to sqaure and plum. It is on a south facing wall with some western exposure with only a small overhang and no water has gotten in after a couple months. Seems well built and operates smoothly so far. Great for the price. Comes shipped vertically on a pallet with an A frame which was easy to strap down. Delivery would have been much easier though!
Date published: 2017-09-06
Rated 5 out of 5 by from Beautiful door This door came prefinushed. Looks great. The Jeldwen and Reliabilt doors of similar cost (actually they are about 20% more) are very cheap looking. This door looks like a much more expensive unit. One con: there is an astragal on both sides of the middle seam. This is probably better for keeping out the elements, but it does limit hardware choices.
Date published: 2017-07-04
Rated 5 out of 5 by from Beautiful door This door is very Door looking. Lots of glass. The Hardware is very nice and sturdy. Sturdy and high quality. I made my purchase solely based on reviews and am very happy with my purchase.
Date published: 2017-10-13
Rated 3 out of 5 by from the top right side hinge was messed up so the... the top right side hinge was messed up so the door had issues with opening and closing. But it is a beautiful door.
Date published: 2017-09-19
Rated 5 out of 5 by from This is an outstanding door for the price. I was shopping for fiberglass or composite material full size hinged french doors and found most of the cheaper doors, while advertised as "full lite" , had significantly less glass than more expensive models. The door I was replacing was a 33 year old all wood model with a glass panel almost 27" wide. Most of the composite doors I saw only had 21 to 23 inches and the glass was not flush mounted meaning the glass had a thick frame around it that stuck out of the door which, to me, made it look cheap. This door has 26" of glass in a flush mounted frame which runs about a half inch over the glass on all sides. It has very clean lines. The only surprise, which is not obvious in the picture, is that the astragal, the strip that runs vertically between the doors, sticks out about an inch and is not as flat as it is on most doors. However this is a minor issue when I look at the door. The seals in the door are outstanding. I live on a coastal island in South Carolina and the night after we installed this door a strong west wind blew directly against this door and I gave it the match test. Not a flutter anywhere around the seams. When I called Masterpiece Doors about the seals they told me they were Q-lon brand which have very favorable reviews in amazon. I had a lot of questions beyond the weatherseals and the Masterpiece people were very knowledgeable and responsive. This door is also a little heavier than other composite doors I have looked at. It has a nice feeling of mass when you open and close it and the hinges and screws appear to be stainless steel. Overall a beautiful door with excellent weather seals for a very reasonable price.
Date published: 2016-01-23
Rated 2 out of 5 by from after installing these doors in our brand new home it rained a little bit. Not even a lot. The de... after installing these doors in our brand new home it rained a little bit. Not even a lot. The design of these doors allows water to hit the exterior then run down to a horzontal seal which cant help but fail. The little burst of rain came right through the door seal and onto the floor. These doors will be removed before major damage is done and the carpet is installed. Total flop of a product in my opinion despite the good looks. Difficult install also due to the flimsy vinyl frame than flexes and bends with every shim and move.
Date published: 2017-03-14
Rated 4 out of 5 by from The door came in and looked great. Color was a little off from what I thought, but we are going t... The door came in and looked great. Color was a little off from what I thought, but we are going to paint it anyway (I knew it would be a different white than the trim). The reason that I am giving this 4 stars instead of 5, is that the intending mounting holes that are all predrilled for the screws are all on the frame, covered by the door when the door is closed. I realize that this helps the aesthetics once it is installed, but that means you have to get the door in place and open the door before you can screw anything in. The door is pretty sturdy, so maybe I didn't need to worry about the frame racking or twisting with the door open before securing it with the screws, but I ended up putting in a couple screws of my own to make sure. Again, maybe a needless fear from working with cheaper doors in the past, but I didn't want to take a chance on this twisting and the door not closing smoothly. Overall, the door looks and works great at this point. Hopefully I feel the same way after a year of use.
Date published: 2016-11-01
