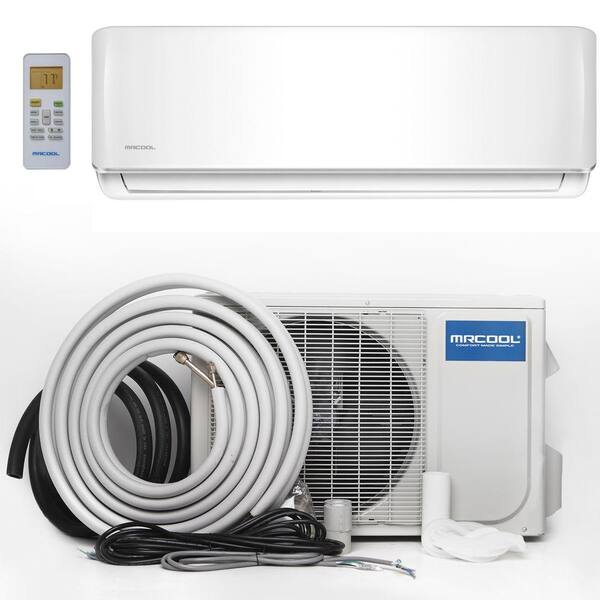

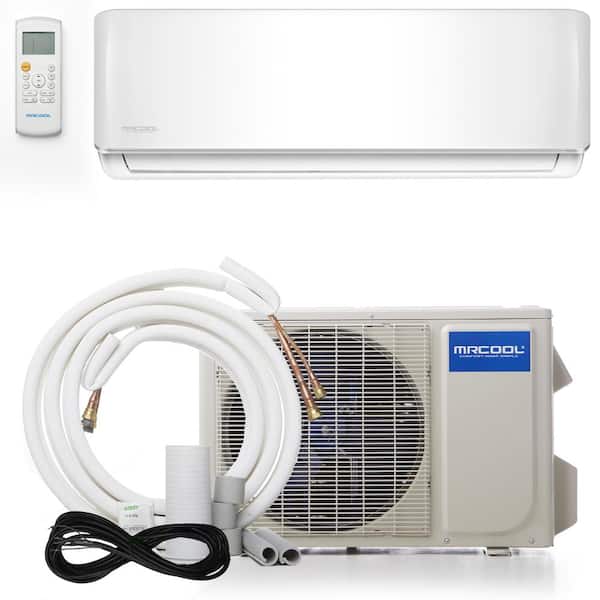

Advantage 12,000 BTU 1 Ton Ductless Mini Split Air Conditioner and Heat Pump - 230V/60 Hz

  • Quiet, wall-mounted design provides year-round comfort
  • Covers up to 550 sq. ft.
  • Designed for professional installation by HVAC technician
  • View More Details
How to Get It

Product Overview

This system is meant to be installed by a HVAC technician. The newly designed 2nd generation Advantage Series, with improved efficiency ratings up to 17.7 SEER, delivers high performance from the moment it's activated. And its competitive price makes it a consumer favorite that's tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology.
  • Installation kit included
  • 1-year compressor, 2-year parts and 1-Year remote warranty when registered and when installed by a licensed professional
  • Up to 17.7 SEER
  • Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
  • Gold Fin® corrosion protection. Made to stand up to the elements, our condensers are built to resist long term corrosion.
  • Installation by a licensed professional required where applicable
  • Installation by a licensed professional required where applicable
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs
  • California residents

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Air handler depth (in.)7.44Air handler height (in.)11.69
Air handler width (in.)31.57Condenser depth (in.)11.81
Condenser height (in.)21.85Condenser width (in.)30.31

Details

Air Conditioner Product TypeMini Split UnitAir direction/circulation4-way
Air handler weight (lb.)18.7Amperage (amps)15 A
BTU Cooling Rating12000 Btu/hBTU Cooling Rating12000 BTU
BTU Heat Rating11800 BTUBTU Heat Rating11800 Btu/h
ColorWhiteColor FamilyWhite
Color/FinishWhiteCondenser weight (lb.)29.5
Coverage Area (sq. ft.)550Decibel (Sound) Rating57 dBA
Decibel Rating57 dBAFilter TypeWashable
IncludedRemote Control,Self-diagnostic toolsLine Set Length (ft.)16
Mini Split FeaturesAutomatic shutoff,Fan only option,Overload protection,Timer,Wireless remote controlMinimum Outdoor Temperature (F)5
Mount LocationWall MountNumber of cool settings3
Number of Fan SpeedsVariablePack Size1
Returnable90-DayVoltage (v)230v
Voltage (volts)230Wattage (watts)Not Measured
Zone CapacitySingle Zone

Warranty / Certifications

Certifications and ListingsETL ListedManufacturer Warranty1-year compressor and 2-year parts warranty
Seasonal Energy Efficiency Ratio (SEER)17.5

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.5
    out of 65 reviews
  • 95%recommend this product
Filter by:
Showing 1-10 of 65 reviews
Easy Installation
I bought this unit a little over a month ago, and I just got it installed. I had to hired an electrician to connect the power to it because I had it installed on the other side of the house.
by
    • Recommended
    Very nice unit. I didn't know exactly what I would get but it turned out very good. The one thin...
    Very nice unit. I didn't know exactly what I would get but it turned out very good. The one thing I don't understand is that the fan never quits running after it reaching the temperature it was set to like other a/c units. I have had the unit running now for a week and I like the temperature light on the unit housing being lit to let one know what the unit temperature it is set to. The unit is makes the room more appealing and so silent. Very inexpensive. I had little difficulty in installing and except for actually connecting and vacuuming the Freon lines and checking the system. I hired a local a/c business for this and was horrible surprised how much the charge was after I had already did all of the installation. The unit cools and heats very nicely.
    by
    • Verified Purchase
    • Recommended
    Easy install did it all myself borrowed a vaccum pump pulled the lines down cracked the freon val...
    Easy install did it all myself borrowed a vaccum pump pulled the lines down cracked the freon valve it all works great cooling my 400 square ft sunroom great
    by
    • Verified Purchase
    • Recommended
    3 found this review helpful
    Product is working great.The install took about 3 hours.
    Product is working great.The install took about 3 hours.
    by
    • Verified Purchase
    • Recommended
    1 found this review helpful
    Great
    I installed the Unit about one month ago, both air and heat are working great!
    by
      • Recommended
      Works Amazing!!
      We are so excited about this for a "four seasons" room that has always been VERY hot in the summer and VERY cold in the winter. We easily set up this system in about an hour and have used it everyday since! Its quiet, looks nice, and its fun to watch the fan move!
      by
        • Recommended
        Awesome system
        Great system for the money, only wish I got one sooner!
        by
          • Recommended
          Easy install, quiet
          I finally got to install this unit. All the rain in the past several months delayed construction. I was doing a sunroom addition on our house and a split unit was the best option. I opted to place the indoor unit above the new fireplace so as to not take away from the window space, then I put the condenser unit on the outside on the backside of the fireplace so as not to be seen from the inside. The indoor unit was placed as close to the ceiling as recommended, then was stoned around it with enough room to conduct maintenance. Very quite operation on both indoor and outdoor unit. In fact, most of the time you have to stand where it is blowing to even see if it on. So, I had to put it to the test. On a 95 degree day, I opened all the windows and the door and the unit just adjusted accordingly like it was no problem.
          by
            • Recommended
            Works Great in Garage
            We moved my office to the garage last fall and installed this unit for climate control. The garage is attached to our house but there is another garage in between that is not climate controlled so there is no heat or a/c reaching the office. I had no issue keeping my office warm over the cold Ohio winter, even when the temperature dropped into single digits. I wanted to wait until I used the a/c before I reviewed it and it did not disappoint. No issues keeping it cool. I highly recommend.
            by
              • Recommended
              DIY easy to install
              just install it by my self with my wife with a little help, yesterday its easy, and so far still working after 2 days, hopefully i do it right....
              by
                • Recommended
                Showing 1-10 of 65 reviews
