#1 Home Improvement Retailer

Internet #311900316

Model #DIY12-HP-115B25

Store SKU #1005156498

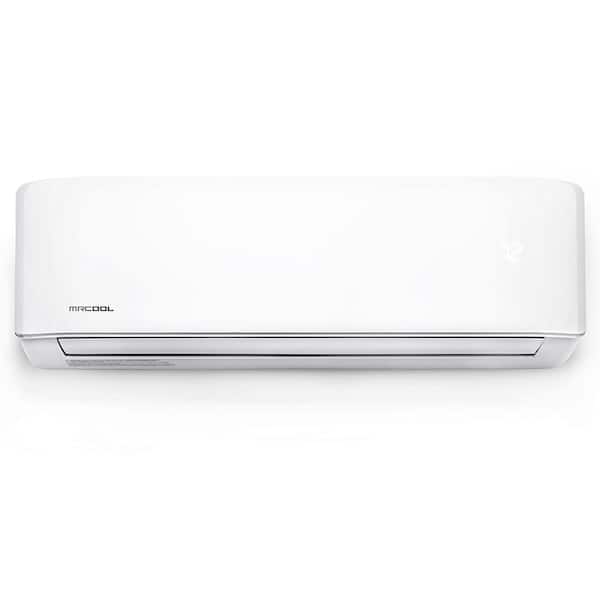

DIY Gen-3 12,000 BTU 22 SEER ENERGY STAR Ductless Mini Split Air Conditioner & Heat Pump w/ 25 ft. Install Kit 115-Volt

  • Ductless mini AC with a heat pump ensures energy-efficient use
  • Includes a pre-charged DIY installation kit
  • Wi-Fi module allows for temperature control through smart devices
  • See More Details

Frequently Bought Together

+
+

Product Overview

The MrCool DIY 3rd Generation 22 SEER 12,000 BTU/h ENERGY STAR Ductless Heat Pump is designed for simple, amateur installation. Using pre-charged R410A Quick Connect Linesets, anyone with a few common tools on hand can install this innovative ductless system that delivers reliable, ENERGY STAR rated heating and cooling year-round. Enjoy unprecedented control over your heating and cooling through a seamless integration with MrCool's custom smartphone app, Google Assistant, or Amazon Alexa. With the MrCool DIY 3rd Generation Heat Pump, which runs quietly with decibel levels ranging from 23.5 to 38 dB, you can adjust your fan settings to low, medium, or high, direct air flow to your location with the Follow Me Function, or set your unit to Sleep Mode for quiet, efficient heating or cooling throughout the night. This bundle includes: Mounting plate, Anchor, Mounting plate fixing screws, Remote control, Fixing screw for remote controller holder ST2.9 x 10, Remote control holder, Air freshening filter, Seal, Allen wrench, Condensate Drain, Drain joint, Neoprene, Owner & Installation Manual, Remote Control Manual, Smart Controller Kit, Sound deadening pads, Quick Connect line set (refrigerant pipe), Insulation material, Non-Adhesive U.V. Tape.
  • Fully able to be controlled with the MrCool SmartHVAC smartphone app or with your Alexa or Google Assistant.
  • The Follow Me Function monitors the temperature near the remote and adjusts the unit's function to deliver heating or cooling wherever you might be.
  • Quiet operation with nighttime sleep mode will deliver peaceful, efficient heating or cooling all night, allowing this unit to give you first-rate comfort 24/7.

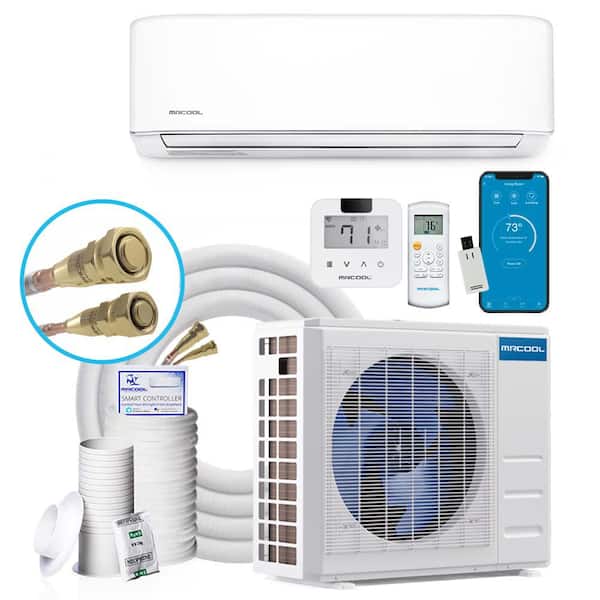

  • Kit includes 25 ft. pre-charged do-it-yourself installation kit
  • 7-year compressor warranty and 5-year parts warranty
  • Smart functions include Auto Restart for instant operation after a power outage and louver position memory, so you don't have to remember where the louver was when you shut your unit off.
  • Supplies low ambient cooling down to an outside temperature of 5°F, which is perfect for server rooms, greenhouses, and other locations that need to be cooled all year long.
  • MRCOOL units are protected by Gold Fin standard corrosion resistance and an alarm for low coolant levels and leaks.
  • Energy Star rated for certified efficiency.
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar DIY Mini Splits

DIY Super Efficiency 12,000 BTU 1 Ton Inverter Ductless Mini Split Air Conditioner and Heat Pump - 110V/60Hz
current product
Top RatedDIY Gen-3 12,000 BTU 22 SEER ENERGY STAR Ductless Mini Split Air Conditioner & Heat Pump w/ 25 ft. Install Kit 115-Volt
Super Efficiency GWi Series 18,000 BTU 1.5 Ton Inverter Ductless Mini Split Air Conditioner and Heat Pump - 230V/60HzSuper Efficiency GWi Series 33,000 BTU 2.75 Ton Inverter Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz
BrandRamsondMRCOOLRamsondRamsond
NameDIY Super Efficiency 12,000 BTU 1 Ton Inverter Ductless Mini Split Air Conditioner and Heat Pump - 110V/60HzDIY Gen-3 12,000 BTU 22 SEER ENERGY STAR Ductless Mini Split Air Conditioner & Heat Pump w/ 25 ft. Install Kit 115-VoltSuper Efficiency GWi Series 18,000 BTU 1.5 Ton Inverter Ductless Mini Split Air Conditioner and Heat Pump - 230V/60HzSuper Efficiency GWi Series 33,000 BTU 2.75 Ton Inverter Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz
Price
Add to Cart to See Price
Ratings
(20)
(377)
(6)
(4)
Zone CapacitySingle ZoneSingle ZoneSingle ZoneSingle Zone
Voltage (v)110v115v220v220v
BTU Cooling Rating12000 BTU12000 BTU18000 BTU33000 BTU
BTU Heat Rating13000 BTU12000 BTU20000 BTU33500 BTU
Mount LocationWall MountWall MountWall MountWall Mount
Mini Split FeaturesAuto cool,Automatic shutoff,Fan only option,Heater compatible,Programmable,Sleep setting,Timer,Wireless remote controlAuto cool,Automatic shutoff,Defrost,Fan only option,Mobile App,Overload protection,Sleep setting,Timer,Wifi,Wireless remote controlAuto cool,Automatic shutoff,Fan only option,Heater compatible,Programmable,Sleep setting,Timer,Wireless remote controlAuto cool,Automatic shutoff,Fan only option,Heater compatible,Programmable,Sleep setting,Timer,Wireless remote control
Minimum Outdoor Temperature (F)5 F55 F15
IncludedHeater,Remote Control,Self-diagnostic toolsRemote ControlHeater,Remote Control,Self-diagnostic toolsHeater,Remote Control,Self-diagnostic tools
View ProductView ProductView ProductView Product

Specifications

Dimensions

Air handler depth (in.)
7.44
Air handler height (in.)
11.69
Air handler width (in.)
31.57
Condenser depth (in.)
13.11
Condenser height (in.)
21.81
Condenser width (in.)
31.5

Details

Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
4-way
Air handler weight (lb.)
19.62
Amperage (amps)
20
BTU Cooling Rating
12000 BTU
BTU Cooling Rating
12000
BTU Heat Rating
12000 BTU
BTU Heat Rating
12000
Color
White
Color Family
White
Color/Finish
White
Condenser weight (lb.)
78.7
Coverage Area (sq. ft.)
500
Decibel (Sound) Rating
24 dBA
Decibel Rating
24 dBA
Filter Type
Washable
Included
Remote Control
Line Set Length (ft.)
25
Mini Split Features
Auto cool,Automatic shutoff,Defrost,Fan only option,Mobile App,Overload protection,Sleep setting,Timer,Wifi,Wireless remote control
Minimum Outdoor Temperature (F)
5
Mount Location
Wall Mount
Number of cool settings
3
Number of Fan Speeds
Variable
Power Options
Hardwired
Remote Access
Remote Access
Requires Hub?
No Hub Required
Returnable
90-Day
Smart Home
Smart Home Enabled
Smart Home Protocol
Wi-Fi
Voice Control Hub Required
No Hub Required for Voice Control
Voltage (v)
115v
Voltage (volts)
115
Wattage (watts)
Not Measured
Works With
Alexa, Alexa, Google, Google Assistant
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
AHRI Certified,CSA Certified,CSA Listed,Energy Star
Manufacturer Warranty
7-Year Compressor and 5-Year Parts Warranty
Seasonal Energy Efficiency Ratio (SEER)
22

Questions & Answers

108Questions12Answers

Does it have a programmable thermostat?

Asked by Ken May 31, 2021
1
Answer

The MRCOOL remote acts as a thermostat. MROOL offers an optional programmable thermostat for sale.

I have a 800 square foot home and need two zones. Would it be more energy efficient to buy a two-...

Asked by Hagbard May 23, 2021
1
Answer

Both application will be close to the same efficiency.

Can I bend the line set around the corner of my house, or is that too sharp of an angle?

Asked by Ll April 26, 2021
1
Answer

You are able to bend the line set 90 degrees being careful not to crimp the line.

How long is the electric cord? Is this item discontinued or is it going to be back in stock?

Asked by VI April 19, 2021
1
Answer

The cord is 25, like the hose

can you bend the supply line in different directions?

Asked by Jack April 10, 2021
1
Answer

I'd ask the mfr. My gut tells me as long as it isn't kinked it wouldn't be a problem, but best to ask them.

Does this unit use inverter technology?

Asked by jallen April 6, 2021
1
Answer

Yes MRCOOL mini splits you inverter technology.

is the lineset 25 feet PLUS the few feet that come out of the back of the unit, or is the length ...

Asked by Chris April 3, 2021
1
Answer

DIY line set is 25' by itself.

Because of my room layout the best place for the inside unit will be directly over a couch. Does ...

Asked by John March 31, 2021
2
Answers

No it blows straight forward in an up and down motion

Is this compatible with a nest thermostat?

Asked by rgmarsh23 March 17, 2021
1
Answer

Yes

Can this unit sit on a shelf or must it be mounted to the wall

Asked by wondering March 13, 2021
2
Answers

Has to be Mounted , the air Vent comes out the bottom

DIY Gen-3 12,000 BTU 22 SEER ENERGY STAR Ductless Mini Split Air Conditioner & Heat Pump w/ 25 ft. Install Kit 115-Volt - page 2

Customer Reviews

  • 4.7
    out of 377 reviews
  • 95% recommend this product
Filter by:
Showing 1-10 of 377 reviews
This air conditioner completely cools my two car garage in sunny south Florida with temperatures ...
This air conditioner completely cools my two car garage in sunny south Florida with temperatures well in the 90s. You can't even hear it running you just feel the cold air. I would highly recommend this product.
by Vince
Purchased the 12000 BTU model. It says it can very well cover spaces up to 500 feet squared, I ha...
Purchased the 12000 BTU model. It says it can very well cover spaces up to 500 feet squared, I have it in a 288 squared foot room and it struggles to cool at the lowest temperature (62F). Can’t imagine how it’s going to be when the heat wave comes. It says it’s returnable up to a reasonable time frame, and even if it goes past that there’s only a slight restocking fee, but after paying an electrician for to run a new line and install a disconnect box and making a hole in my wall, it’s not worth removing and returning it. At this point something is better than nothing so I’m just keeping it but I’m disappointed. Either purchase a model higher than what you need or research into other models.
by Manny
22 people found this helpful
Bulletproof packaging, which was great and appreciated; all components protected very well. Very ...
Bulletproof packaging, which was great and appreciated; all components protected very well. Very easy to install, and important to note that this appears to be the only MrCool model on 115-volts. I had a simple question that I sent through the MrCool website and customer service answered in under 24 hours. My recommendation to other DIY installers is to watch the videos AND read the instruction manual fully before installing. There are little things (like checking the routing and seal on the drain) that you can't do once the inside unit is up on the wall. There's also scant info on properly connecting the electrical, so I'll just say to check your local code and probably buy a fuse-less switch to mount within sight of the outside unit and use a dedicated circuit for the installation. All that said, this was super easy to install and works like a dream for my COVID19-created home office in a formerly unconditioned garage space. Keeps the only partially insulated 350 square feet comfortable and cool. Highly recommend this product!
by 2muchDIY
11 people found this helpful
This was such an amazing unit! It really is easy to install, and works amazing. So quit you dont ...
This was such an amazing unit! It really is easy to install, and works amazing. So quit you dont even know its running, except that the room is maintaining the temp you set it at. I love the program options! Overall this is well worth the money!!
by Bd
1 person found this helpful
I have had Mr. Cool a month now. Have not had any problems, would recommend also purchasing Mr.co...
I have had Mr. Cool a month now. Have not had any problems, would recommend also purchasing Mr.cool mini stat. The DIY unit is the easiest no need to vacuum lines , U may need an electrician to run your power to the unit if You are not comfortable working with electrical wires or do not already have a disconnect box outside near the unit.
by Gadsden
1 person found this helpful
Easy to install. Works great, lots of cooling and heating power. Very quiet. Works with Alexa, an...
Easy to install. Works great, lots of cooling and heating power. Very quiet. Works with Alexa, and with smartphone app.
by Cro
1 person found this helpful
Mr. COOL DIY installation was straight forward. Had it in 8 hrs including running electrical. If...
Mr. COOL DIY installation was straight forward. Had it in 8 hrs including running electrical. If your not comfortable with electric call an electrician. Unit works excellent. Love the app to control it on my phone. Keeping our master bedroom at 78 with no problem.
by Flyte
2 people found this helpful
best in class
I setup it by myself, easy just by watching the videos on youtube, then for electrical job i called a professional to do wiring job and fuse and disconnect box just for $200- very quiet, real review from kansas city
by Benjamin
4 people found this helpful
great until 3 weeks later
Unit works great and is super quiet, easy install. However 3 weeks later the vent door does not close all the way when unit is powered off. It sits there looking at me like a imbecile with its mouth hanging open. It makes me feel like a imbecile for buying the most expensive unit expecting reliability. I can not take it off the wall to return it without losing the refrigerant gas. Do not be a imbecile like me and consider other brands.
by Swoopadoop
Response from MR COOL TeamMay 21, 2020
Hello,

We are sorry for any issues you are having with our product. Please reach out to our technical support team at 270-366-0457, they will be able to help you with this issue. Thank you. mrcool
5 people found this helpful
One of my best purchases!
Purchased this on sale which made this one of the most amazing values I've ever purchased. After living with window A/C for years, we finally bit the bullet and tried our luck with this DIY split system based on the great reviews and apparent ease of installation. Not disappointed! Installation took about 4 hours totally on my own, including some light electrical. Expect more if running completely new electrical to unit. If you can turn a wrench and run a cordless drill, you can handle this project. DIY difficulty? 4/10 for an experienced DIY'r in my opinion. Instructions were fairly clear to understand for me. There are also some decent Youtube videos if you find yourself scratching your head. As far as quality is concerned, I couldn't find any flaws. All of the joints and welds looked professional and clean. The inside unit is modern looking and unobtrusive. Remote is easy to navigate. Outside unit has a small footprint and is less of an eyesore than most central air units. QUIET!!! I was literally wondering if I had done something wrong during installation or had a faulty unit after starting for the first time. I could not hear the inside or outside units running until I got within a few feet of them. Even on "Turbo" the inside unit was easily drowned out by my TV at low volume. Could not be happier with the noise. Now, for my only complaint. The line set (outside piping) wrap provided is lacking. I've seen a few reviews where they run out before completing the entire lines. I did have this issue also. I needed around 3 feet more to complete. I can live with it, and get some more locally, but wold be nice to have and extra roll. One suggestion to MRCOOL. The vertical auto louver feature is a nice touch, but what would have really been GREAT? Horizontal auto sweep to cover an entire area. That would make these Gen 3 units the best units available!
by JasonE
14 people found this helpful
Showing 1-10 of 377 reviews
