Model #DIY24-HP-230B25

Store SKU #1005156496

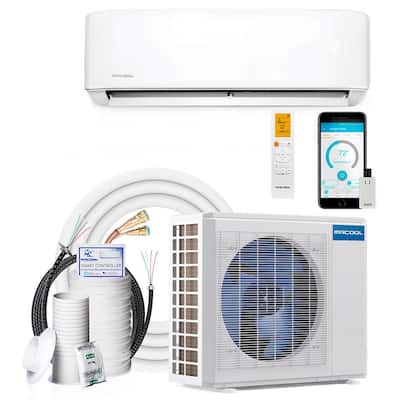

DIY Gen-3 23,000 BTU 20 SEER ENERGY STAR Ductless Mini Split Air Conditioner & Heat Pump w/ 25 ft. Install Kit 230-Volt

Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Ductless mini AC with a heat pump ensures energy-efficient use
  • Includes a pre-charged DIY installation kit
  • Wi-Fi module allows for temperature control through smart devices
  • View More Details
0 in stock
Text to Me
How to Get It

Frequently Bought Together


Product Overview

The MrCool DIY 3rd Generation 20 SEER 24,000 BTU/h ENERGY STAR Ductless Heat Pump is designed for simple, amateur installation. Using pre-charged R410A Quick Connect Linesets, anyone with a few common tools on hand can install this innovative ductless system that delivers reliable, ENERGY STAR rated heating and cooling year-round. Enjoy unprecedented control over your heating and cooling through a seamless integration with MrCool's custom smartphone app, Google Assistant, or Amazon Alexa. With the MrCool DIY 3rd Generation Heat Pump, which runs quietly with decibel levels ranging from 33.5 to 47 dB, you can adjust your fan settings to low, medium, or high, direct air flow to your location with the Follow Me Function, or set your unit to Sleep Mode for quiet, efficient heating or cooling throughout the night. This bundle includes: Mounting plate, Anchor, Mounting plate fixing screws, Remote control, Fixing screw for remote controller holder ST2.9 x 10, Remote control holder, Air freshening filter, Seal, Allen wrench, Condensate Drain, Drain joint, Neoprene, Owner & Installation Manual, Remote Control Manual, Smart Controller Kit, Sound deadening pads, Quick Connect line set (refrigerant pipe), Insulation material, Non-Adhesive U.V. Tape.
  • Fully able to be controlled with the MrCool SmartHVAC smartphone app or with your Alexa or Google Assistant.
  • The Follow Me Function monitors the temperature near the remote and adjusts the unit's function to deliver heating or cooling wherever you might be.
  • Quiet operation with nighttime sleep mode will deliver peaceful, efficient heating or cooling all night, allowing this unit to give you first-rate comfort 24/7.
  • Kit includes 25 ft. pre-charged do-it-yourself installation kit
  • 7-year compressor warranty and 5-year parts warranty
  • Smart functions include Auto Restart for instant operation after a power outage and louver position memory, so you don't have to remember where the louver was when you shut your unit off.
  • Supplies low ambient cooling down to an outside temperature of 5°F, which is perfect for server rooms, greenhouses, and other locations that need to be cooled all year long.
  • MRCOOL units are protected by Gold Fin standard corrosion resistance and an alarm for low coolant levels and leaks.
  • Energy Star rated for certified efficiency.
  • Click here for more information on Electronic Recycling Programs
  • California residents

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.



Air handler depth (in.)8.9Air handler height (in.)13.19
Air handler width (in.)42.52Condenser depth (in.)16.14
Condenser height (in.)31.89Condenser width (in.)37.24


Air Conditioner Product TypeMini Split UnitAir direction/circulation4-way
Air handler weight (lb.)31.08Amperage (amps)25 A
BTU Cooling Rating23000 BTUBTU Heat Rating25000 BTU
ColorWhiteColor FamilyWhite
Color/FinishWhiteCondenser weight (lb.)127.65
Coverage Area (sq. ft.)1000Decibel (Sound) Rating34 dBA
Decibel Rating34 dBAFilter TypeWashable
IncludedRemote ControlLine Set Length (ft.)25
Mini Split FeaturesAuto cool,Automatic shutoff,Defrost,Fan only option,Mobile App,Overload protection,Sleep setting,Timer,Wifi,Wireless remote controlMinimum Outdoor Temperature (F)5
Mount LocationWall MountNumber of cool settings3
Number of Fan SpeedsVariablePack Size1
Power OptionsHardwiredRemote AccessRemote Access
Requires Hub?No Hub RequiredReturnable90-Day
Smart HomeSmart Home EnabledSmart Home ProtocolWi-Fi
Voice Control Hub RequiredNo Hub Required for Voice ControlVoltage (v)208/230v
Wattage (watts)Not MeasuredWorks WithAlexa, Alexa, Google, Google Assistant
Zone CapacitySingle Zone

Warranty / Certifications

Certifications and ListingsAHRI Certified,CSA Certified,CSA Listed,Energy StarManufacturer Warranty7-Year Compressor and 5-Year Parts Warranty
Seasonal Energy Efficiency Ratio (SEER)20

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.5
    out of 437 reviews
  • 88%recommend this product
Filter by:
Showing 1-10 of 437 reviews
Great units, until they break.
I've bought 3 of these units. 3 years in one of their quick connects started leaking and now the unit is non-functional. I've called them 20+ times. They make you wait on hold TO LEAVE A VOICEMAIL. I've emailed them multiple times, no one responds. They are clearly a company who doesn't care about standing behind their products.
Response from MR COOL TeamJul 23, 2022
I do apologize for any inconvenience you are having, please email me directly csmanager@mrcool.com so I can assist you with any warranty or troubleshooting needs. Thank you mrcool
    I am into 2 years owning mine.
    My Mr cool cools my whole single wide mobile home and is very quiet. Now the problems.The wheel get dirty and the whole thing will clog up to the point it stops blowing air. You have to completely take off the entire front of the cooler to gain very minimal access. Then you have to take a brush to the wheel while trying to suck up the dust? It is really hard to do. I have broken the hinge on the right side because the plastic is cheap.
      Really good heat pump
      Replaced an older generation Mr. C heat pump with this unit.There are differences between the units but, luckily, I could use the same hole I had put through my brick wall, so it saved this 67 year old grandma a little time while installing it. I installed myself. Works great. 100 degree day, my small 3 bedroom home was an easy 72. Humidity is running about 35-40%. It has a wall thermostat, remote, and works with Alexa & Google.
        • Recommended
        24K Mr Cool AC for my garage
        I would have given this a 5 star for the unit itself but support was questionable when I called to clarify a few things after install. Unit works well and installed as seen on TV or Youtube. My situation took a little longer because I had to run electric. setup the pad for the compressor and open up part of the wall where the inside mounting plate attaches due to numerous pipes behind the wall. Thats was my challenge to the install but absent those issues, it is an easy task. I called to clarify some details after startup about the remote, wall control and Mr Cool app in how they work together. I got an answering machine and left my info. As of 2 weeks later no call. They push it off on getting info off the website or other sources but no live help. Kind of turned me off so hence minus 1 star. Overall a good unit, and would recommend. Time will tell on its lasting quality as I just installed 3 weeks ago.
        • Verified Purchase
        • Recommended
        2 found this review helpful
        Money Saver / Great Product
        Easy installation with 50 ft of line set. Great instructions and quality parts. Unit so smooth and quiet. Couldn’t be happier with this product. Ordered from Home Depot and ready for pickup at store within days at a great price. Saved a lot of money and feel I have a better installation than I could have paid others to do. If your a handy person you can DIY. No problem!
        Response from MR COOL TeamMar 23, 2022
        Fantastic! Thank you, for your purchase. mrcool
          • Recommended
          Don't be fooled - Made in China
          You read everywhere they are made in Kentucky. That is one of the reasons I purchased this brand. Once installed the tag clearly states, MADE IN CHINA
            • Recommended
            9 found this review helpful
            Fairly easy install. Very quiet and efficient! Love this unit.
            Just installed this unit and it works great! I have a 1200 SF house (one level) and it heats or cools the whole place.
              • Recommended
              2 found this review helpful
              excelent experience so far
              I purchase the 24k Mr Cool DYI 20 seer on Jun 26/2020 and was installed by Mid July, this are my comments on my experience as far as today 3/29/2021: 1.heating: my space is 1,150 SF and this unit is heating the area quick and without problems at all, i keep temperature in 68* and has been great, with temperatures bellow 20* still heat efficiently.......2. App integration: the app works just great, i download it on my phone also my wife and son, we all are fully capable to control the unit without connectivity problems or command problems, works great and have nice features, they receltly updated the app and is really nice........3. Installation: the unit was installed by myself and i can say is very easy to do but still need some basic knowlage.....4. Noise: super super quiet indoor air handler and outdoor condenser......5.power consumtion: i cant be more happy after been able to use this unit together with other two (9k 22.5 seer each for bedrooms) almost all night and day on heating mode and just have a diference of about $30 to $50 dollars on my montly electric bill and not been dependable on expensive oil to heat my home, heat expense montly is around $300 versus $30 to $50 on this electric heat pumps (using three units) so you can see a big diference there.......6. Working under extreme conditions: im located on Long island NY and this winter we had a lot of snow and i was very please to see that outdoor condenser working just great almost full cover of snow........ill be updating this review after this summer 2021 to provide a fair comment about cooling mode and hope to have great news on that as well..............im happy so far with what i see but anyways im causious and i want to provide a fair comment base on a real performance over the time and not on first sight emotions so you can dedide better on buying and judge if its woth it or not the investment on this mr cool units...........good luck
                • Recommended
                11 found this review helpful
                Easy install, definitely a DIY with an extra hand and the right tools. Cools down our living room...
                Easy install, definitely a DIY with an extra hand and the right tools. Cools down our living room with sky lights on the hottest days easily and cools down the first floor pretty well too.
                • Verified Purchase
                • Recommended
                1 found this review helpful
                Easy to install, Cools exceptional ,Quiet ,Know more when I get my first electric bill.
                Easy to install, Cools exceptional ,Quiet ,Know more when I get my first electric bill.
                • Verified Purchase
                • Recommended
                2 found this review helpful
