Internet #309173649

Model # MAC16048A

0810512030989

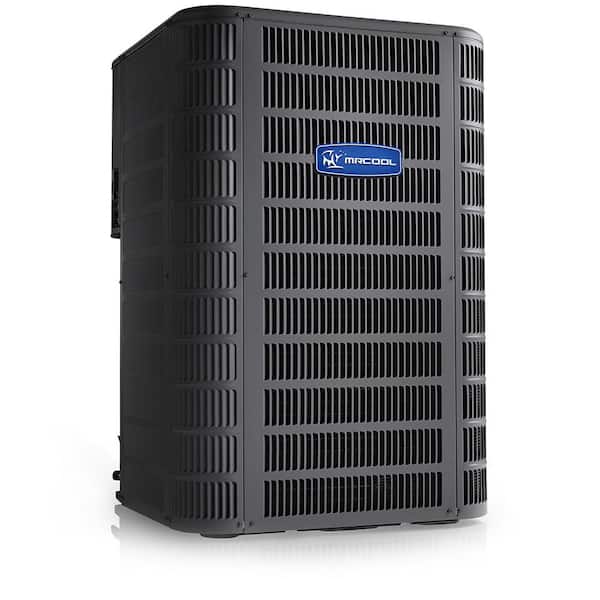

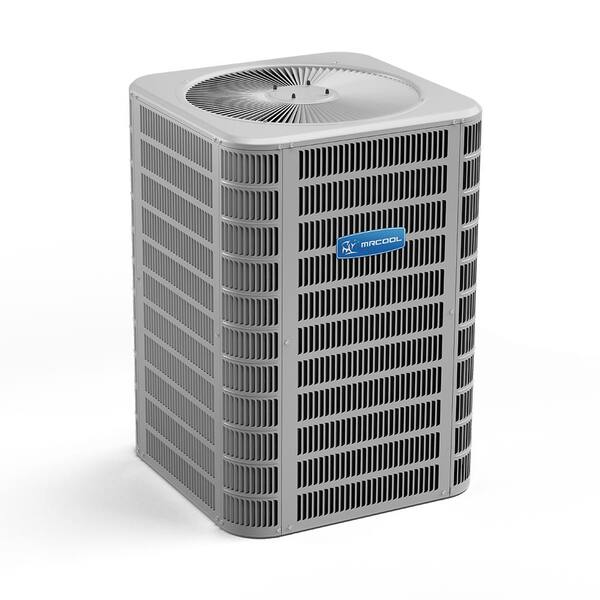

Signature 4 Ton 46,000 BTU up to 16 SEER R-410A Central Split System Air Conditioning Condenser

  • Complete electrical cooling system
  • Includes CoolGuard coil, fan orifice, and high-pressure switch
  • Thread-on pressure switches enable quick replacement
$ 1,318 00

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Complete electrical cooling system
  • Includes CoolGuard coil, fan orifice, and high-pressure switch
  • Thread-on pressure switches enable quick replacement
Do you need cooling relief right away. How about a decreasing utility bill. Thanks to MRCOOL, you can have all these things and more with our split system a/c condensers. This is a brand new 4 Ton, 208-Volt - 230-Volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year-after-year. This unit only provides cooling (this is not a heat pump).
  • CoolGuard total corrosion protection technology designed coil
  • Corner-mounted controls for easy service
  • Full metal louvered construction to protect the coil/hail protection
  • Factory installed high pressure switch
  • Thread-on pressure switches for simple, quick replacement
  • 10-year limited warranty on compressor
  • Charged for 15 ft. of line set
  • Fan orifice for smoother airflow and sound level reduction
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leakproof construction
  • All units ETL and ETLC approved and AHRI certified
  • Internally protected against high temperature motor overload conditions
  • California residents see Prop 65 WARNINGS

Product Overview

  • Complete electrical cooling system
  • Includes CoolGuard coil, fan orifice, and high-pressure switch
  • Thread-on pressure switches enable quick replacement
Model #: MAC16048A
Internet #: 309173649

Do you need cooling relief right away. How about a decreasing utility bill. Thanks to MRCOOL, you can have all these things and more with our split system a/c condensers. This is a brand new 4 Ton, 208-Volt - 230-Volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year-after-year. This unit only provides cooling (this is not a heat pump).

  • CoolGuard total corrosion protection technology designed coil
  • Corner-mounted controls for easy service
  • Full metal louvered construction to protect the coil/hail protection
  • Factory installed high pressure switch
  • Thread-on pressure switches for simple, quick replacement
  • 10-year limited warranty on compressor
  • Charged for 15 ft. of line set
  • Fan orifice for smoother airflow and sound level reduction
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leakproof construction
  • All units ETL and ETLC approved and AHRI certified
  • Internally protected against high temperature motor overload conditions
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
33
Product Height (in.)
28.25
Product Width (in.)
28.25

Details

Amperage (amps)
45
BTU Cooling Rating
46000 Btu
Color
Gray
Color Family
Gray
Compressor
Scroll
Cooling
Single stage
Decibel (Sound) Rating
78 dBA
Decibel Rating
78 dBA
Nominal sound level (dB)
78
Number of Phases
1
Product Weight (lb.)
219lb
Returnable
180-Day
Voltage (volts)
208/230
Whole House Air Conditioner Type
Split System

Warranty / Certifications

Certifications and Listings
AHRI Certified,ETL Listed,Energy Star
Manufacturer Warranty
10 Year Parts warranty when registered and when installed by a licensed professional/5 Year Parts warranty when not registered and when installed by a licensed professional
Seasonal Energy Efficiency Ratio (SEER)
16

Specifications

Dimensions

Product Depth (in.)
33
Product Height (in.)
28.25
Product Width (in.)
28.25

Details

Amperage (amps)
45
BTU Cooling Rating
46000 Btu
Color
Gray
Color Family
Gray
Compressor
Scroll
Cooling
Single stage
Decibel (Sound) Rating
78 dBA
Decibel Rating
78 dBA
Nominal sound level (dB)
78
Number of Phases
1
Product Weight (lb.)
219lb
Returnable
180-Day
Voltage (volts)
208/230
Whole House Air Conditioner Type
Split System

Warranty / Certifications

Certifications and Listings
AHRI Certified,ETL Listed,Energy Star
Manufacturer Warranty
10 Year Parts warranty when registered and when installed by a licensed professional/5 Year Parts warranty when not registered and when installed by a licensed professional
Seasonal Energy Efficiency Ratio (SEER)
16

Questions & Answers

Will unit cool off my 2000sq home with upstairs

Asked by: PB
Yes, it will cover a 2000 sq ft room.
Answered by: Communityanswer
Date published: 2020-04-28

How many sqft would this cover

Asked by: mhall7274
1,600 sq ft
Answered by: Damon
Date published: 2020-04-12

can this condenser be replace with my existing unit without any problem the old unit isnt able to...

can this condenser be replace with my existing unit without any problem the old unit isnt able to cool the house down
Asked by: Leo

how much will it be to have a whole home a.c. unit installed?

Asked by: nate
