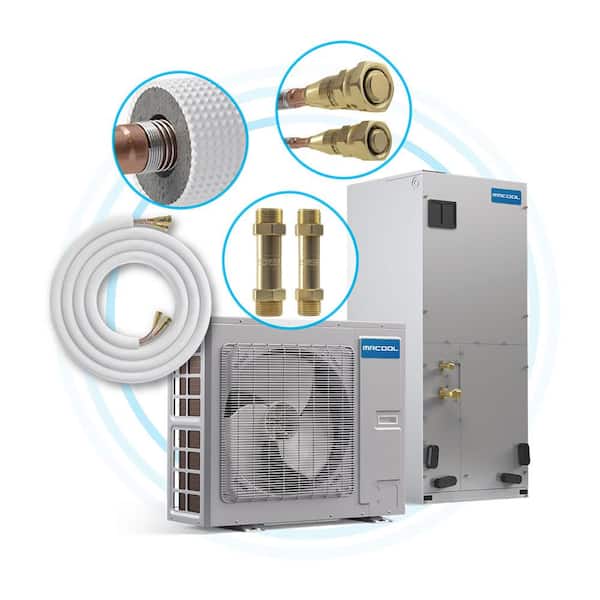

Universal Series Split System 24,000 BTU 2-Ton 20 Seer Heat Pump and Air Handler - 230V

$3469.99
/bundle
Apply Now
$undefined.00 /mo** suggested payments with months** financingApply Now
  • Up to 20 seer efficiency rating
  • Rapid cooling and heating
  • 10 year registered limited warranty
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

MRCOOL would like to introduce you to the future of HVAC with its new 20 SEER Ultra-Heat Inverter Unitary Condensing Unit and Air Handler. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end. Don't be stuck in the past with your traditional system, think ahead with MRCOOL.

Highlights

Product Information

Internet # 327780344

Model # MDHP1824

Store SKU # 1011053548

Additional Resources

Shop All MRCOOL

Specifications

Dimensions

Evaporator height (in.)

32.25

Evaporator weight (lb.)

156.5

Evaporator width (in.)

37

Outdoor unit depth (in.)

22.78

Outdoor unit height (in.)

37

Outdoor unit width (in.)

22.78

Details

Air Conditioner Product Type

Whole House Unit

Amperage (A)

15 A

Appliance Category

A/Cs and Fans

BTU Cooling Rating (Btu/h)

24000 Btu/h

Color

gray

Color Family

Gray

Compressor

Rotary

Cooling

Single stage

Decibel (Sound) Rating

55 dBA

Decibel Rating

55 dBA

Evaporator depth (in.)

18.13

Fan-only option

Yes

Filter light reminder

No

Filter Type

Washable

Heat Output (BTU/hour)

24000

Nominal sound level (dB)

55

Number of Fan Speeds

8

Outdoor unit weight (lb.)

217.2

Pack Size

3

Remote Control

No

Returnable

90-Day

Self-diagnostic tools

No

Short cycle protection

Yes

Sleep setting

No

Voltage (V)

208/230 V

Weather-resistant hardware

Yes

Whole House Air Conditioner Type

Split System

Warranty / Certifications

Certifications and Listings

AHRI Certified, ETL Certified, ETL Listed, Energy Star

Manufacturer Warranty

10 year limited warranty

Seasonal Energy Efficiency Ratio (SEER)

20

Questions & Answers

16Questions
caret
Q:Is this designed to replace traditional furnace and central air units
by|Jun 18, 2024
0 Answer
Answer This Question
caret
Q:MDUO18024036 is listed as 55 decibels, what is the decibel for the MDUI18024036E air handler? Also, how can a 36K condenser only put out 24k BTU? Last, can you provide a heating/cooling performance chart for various temps?
by|Jun 14, 2024
1 Answer
Answer This Question

A:  Hello Randy, I hope you're having a great day! I wanted to share some information with you about the MDUO18024036 condenser. This unit is capable of putting out up to 36k BTU when in the 36k setting, instead of the 24k setting. The MDUI18024036E has a dB rating of 45 in the 2 ton setting and 47 in the 3 ton setting. I will post a link below to our spec sheet on for the MRCOOL Universal Series. Have a wonderful day! https://mrcool.com/wp-content/dox_repo/mc-uni-perf-ss-en-01.pdf

by|Jun 17, 2024
    caret
    Q:Can this retro fit you current existing copper line set? Mine is built in and would be a pain to replace.
    by|Jun 9, 2024
    1 Answer
    Answer This Question

    A:  That will depend on the line set size. If using the existing line set, you will need to have a technician install the system.

    by|Jun 23, 2024
      1 found this answer helpful
      caret
      Q:MDHP1824 doe these come with line set pre charge and how long ar the lines
      by|May 15, 2024
      1 Answer
      Answer This Question

      A:  This bundle, MDHP1824, does not include the Quick Connect NoVac pre-charged line set. You will need to purchase the line set separately if you purchase this bundle.

      by|May 16, 2024
        Showing 1-4 of 16

        Customer Reviews

        5 out of 5

        • 5 out of 2 reviews
        • 0% recommend this product
        Filter by:
        Showing 1-2 of 2 reviews
        It is performing as advertised. I had to...
        It is performing as advertised. I had to contacted Mr Cool company the associates were extremely helpful. They wasted no time getting the heat pumping into my home.
        by
        • Verified Purchase
        This unit is running less than half as much as...
        This unit is running less than half as much as my second unit and it is set at a lower temperature. This unit was a headache to get because Home Depot had originally had it advertised incorrectly and after getting it replaced we finally got the correct product. All issues with receiving the product aside, this seems to be a great choice. I can’t wait to replace my other unit.
        by
        • Verified Purchase
        1 found this review helpful
        Showing 1-2 of 2 reviews
