18V X2 LXT Lithium-Ion (36V) Brushless Cordless Rear Handle 7-1/4 in. Circular Saw (Tool-Only)
- BL Motor delivers 5,100 RPM and 50% longer run time per charge
- Up to 558 cross-cuts per charge with two 5.0Ah batteries
- Brushless motor eliminates carbon brushes for longer tool life
- View More Details
Product Details
About This Product
Makita, a pioneer in brushless motor technology and battery innovation, combines both in the 18-Volt X2 LXT (36-Volt) Lithium-Ion Brushless Rear Handle 7-1/4 in. Circular Saw (XSR01Z, tool only, batteries and charger sold separately). It's powered by two 18-Volt LXT Lithium-Ion batteries for maximum performance and has an electronically-controlled BL Brushless motor that matches torque and RPM to the application. Makita 18-Volt X2 means freedom from the cord, even for demanding applications like cutting sheet and dimensional lumber that traditionally called for a corded saw. Best of all, users can remain in one battery platform, using the same fast-charging 18-Volt batteries with the XSR01Z as they use across the expansive Makita 18-Volt LXT cordless tool series. The XSR01Z has a long list of features for efficient cutting without the cord. Users of leading corded saws will appreciate the blade-left rear-handle design. The electronically-controlled brushless motor delivers a full 5,100 RPM for efficient cutting. In internal testing, the XSR01Z made up to 558 cross-cuts per charge in 2x4 SPF lumber using two fully-charged 5.0Ah batteries. Added features include a large 2-9/16 in. cutting capacity at 90° that will cut 3X lumber in a single pass and an electric brake for maximum productivity.
Highlights
- Powered by two LXT batteries; X2 LXT technology delivers more power, speed and run time without the hassles of a cord
- Makita built electronically controlled BL Motor delivers 5,100 RPM for maximum performance and 50% longer run time per charge
- BL brushless motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Automatic speed change technology adjusts cutting speed and torque during cut for optimum performance
- X2 LXT technology delivers up to 558 cross cuts per charge in 2 x 4 SPF lumber and up to 291 cross-cuts per charge in 2 x 10 SPF lumber using two 5.0Ah batteries (batteries not included)
- Large 2-9/16 in. cutting capacity at 90°; cuts 3x material in a single pass
- Electric brake for maximum productivity
- 0°- 53° bevel capacity with positive stops at 22.5°, 45° and 53°
- Die-cast magnesium base and blade guard along with a die-cast aluminum blade cover and motor housing provide a lightweight, durable design
- Compact and ergonomic design at only 17-1/2 in. long
- Weighs only 12.4 lbs. with batteries (batteries not included) for reduced operator fatigue
- Ideal for framers, formers, builders, roofers and more
- Equipped with star protection computer controls to protect against overloading, over-discharging and over-heating
- Retractable tool hook secures the tool when not in use
- Built-in tether notch (tether sold separately)
- Rubberized soft grip handle provides increased comfort on the job
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- 3-stage LED gauges indicate battery charge levels
- Click here to shop for more Makita products
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 11.53 in, W 18.58 in, D 8.66 in
Dimensions
Blade Diameter (in.) | 7-1/4 in | Product Depth (in.) | 8.66 in |
|---|---|---|---|
Product Height (in.) | 11.53 in | Product Width (in.) | 18.58 in |
Details
Battery Amp Hours | No Battery | Battery Power Type | Lithium Ion |
|---|---|---|---|
Battery Size | 18-volt | Battery Voltage (V) | 36V |
Bevel Capacity (degrees) | 53 ° | Blade Location | Left |
Charger Included | Charger Not Included | Color Family | Teal |
Condition | New | Construction Material | Plastic |
Cordless Tool Type | Circular Saw | Cordless/Corded | Cordless |
Included | No Additional Items Included | Included Accessories | Blade(s),Hand Tools |
Maximum Cut Depth at 45 Degrees (in.) | 1.75 in | Maximum Cut Depth at 90 Degrees (in.) | 2.563 in |
Maximum Speed (RPM) | 5100 RPM | Motor Type | Brushless |
Number of Total Batteries Included | 0 | Power Tool Features | Depth Adjustment, Electric Brake, Keyed Blade Change |
Product Weight (lb.) | 12.4 lb | Returnable | 90-Day |
Saw Drive Type | Worm Drive | Tools Product Type | Power Tool |
Warranty / Certifications
Certifications and Listings | UL Listed | Manufacturer Warranty | 3-year limited warranty |
|---|
Questions & Answers
Customer Reviews
4.8 out of 5
Compare Similar Items
Cordless/Corded | |||
|---|---|---|---|
Cordless | Corded | Cordless | Cordless |
Power Tool Features | |||
Depth Adjustment, Electric Brake, Keyed Blade Change | Keyless Blade Change | Cushioned Grip, Depth Adjustment, Electric Brake, Keyed Blade Change, Side Handle | Depth Adjustment, Electric Brake, Keyed Blade Change, Spindle Lock |
Blade Diameter (in.) | |||
7-1/4 in | 7-1/4 in | 10-1/4 in | 6-1/2 in |
Blade Location | |||
Left | Left | Left | Right |
Saw Drive Type | |||
Worm Drive | Worm Drive | Worm Drive | Sidewinder |
Related Searches
Related Products
18V LXT Lithium-Ion Cordless 6-1/2 in. Lightweight Circular Saw and General Purpose Blade (Tool-Only)
The Makita 18-Volt LXT Lithium-Ion Cordless 6-1/2 in. Circular Saw delivers cordless cutting power to the job site. The XSS02Z (tool only) has a Makita-built high-torque motor and a compact design for a range of cutting applications and will cut 2X material at 45 degree while producing 3700 RPM for faster cutting. The heavy-gauge, precision-machined base is engineered for smooth, accurate cutting and added durability in harsh job site conditions. It's part of Makita's expanding 18-Volt lithium-ion series, the world's largest cordless tool lineup powered by slide-style batteries. Makita 18-Volt lithium-ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
40V Max XGT Brushless Cordless Rear Handle 7-1/4 in. Circular Saw (Tool Only)
The 40V max XGT Brushless Rear Handle 7-1/4 in. Circular Saw (GSR01Z) provides cordless convenience, while taking on high-demand applications. The Makita-built brushless motor delivers 6,400 RPM for high-speed cutting performance. It cuts 3X the material in a single pass with a large cutting capacity of 2-9/16 in.. This saw is ideal for framers, builders, roofers, forming, and more. The GSR01Z offers 56-degrees bevel capacity with positive stops at 22.5-degrees and 45-degrees and a bevel up to 56-degrees. The saw features an electric brake for maximum productivity and a die-cast magnesium base. Automatic Torque Drive Technology adjusts cutting speed under load for optimum cutting performance. The saw is also equipped with Makita's Extreme Protection Technology (XPT), is a series of integrated seals designed to improve a tool's operation in harsh conditions by channeling water and dust from key internal components. XGT is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the competition.
FLEXVOLT 60V MAX 7-1/4 in. Cordless Worm Drive Style Saw with 9.0Ah Battery Kit
The DEWALT (DCS577X1) 60V MAX 7-1/4 in. Cordless Worm Drive Style Saw with 3.0 Ah battery offers big runtime. The blade is oriented to the left of the motor and the handle is at the rear to optimize line of sight when cutting. An electronic brake helps stop the blade after the trigger is released. Bevel capacity is 53s with stops at 45s and 22.5s. The saw makes smooth, accurate cuts and delivers long runtime with a durable, high-grade magnesium shoe and an efficient brushless motor.

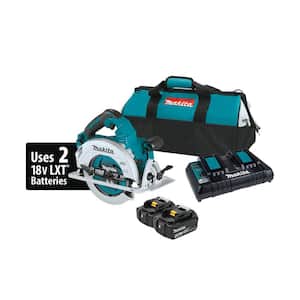

18V X2 LXT 5.0Ah Lithium-Ion (36V) Brushless Cordless Rear Handle 7-1/4 in. Circular Saw Kit
