Internet #100144526

Model #4DPK24X24X24

Store SKU #430320

Store SO SKU #1000683830

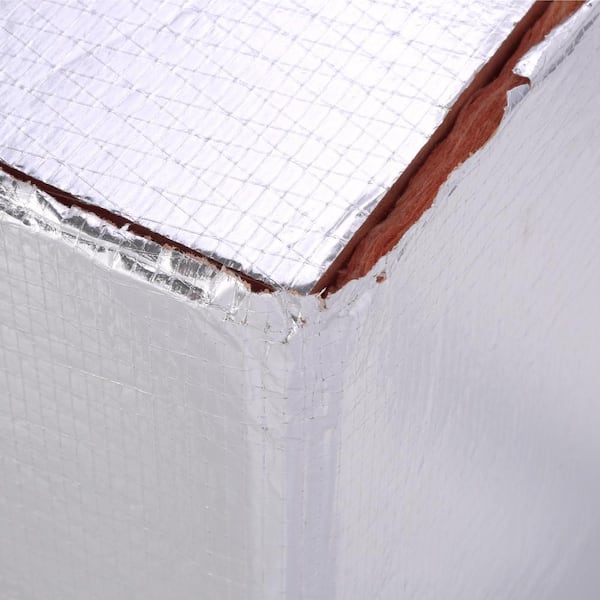

24 in. x 24 in. x 24 in. Duct Board Plenum Kit - R6.0

  • R-6.0 duct board plenum
  • 4 sides and top included in kit
  • Easily cut to size
  • See More Details

Frequently Bought Together

+
+
Price:
$5298

Product Overview

This Master Flow 24 in. x 24 in. x 24 in. Duct Board Plenum Kit - R6.0 lets you easily create an air mixing chamber for your furnace before your ventilation system accepts it. The duct board reduces ventilation system noise and reduces condensation for improved performance. Its high 6.0 R-value provides thermal efficiency. Kit includes 4 sides and top. Open bottom to attach to air system. Product is “knocked down” for shipping and must be assembled.
  • Lets you build an air supply plenum chamber to allow air mixing directly from the furnace before the air is released into your ventilation system
  • Pre-cut design allows easy assembly using compatible foil tape (not included)
  • Insulation lining absorbs and reduces system noise and reduces condensation for improved ventilation system performance
  • R-value of 6.0 delivers optimal thermal efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
24
Product Height (in.)
24
Product Width (in.)
24

Details

Insulation R-Value
6.0
Insulator material
Other
Returnable
180-Day

Questions & Answers

24Questions26Answers

How many of these kits will i need to make 3 complete boxes?

Asked by john August 17, 2020
2
Answers

Each of these plenum kits have one open side to attach to a piece of HVAC equipment, if you are looking to make 3 "boxes" with no openings you would need to purchase 1 extra plenum kit, for a total of 4 kits. If you have any other inquiries about our Master Flow products please call Technical Services at 800-211-9612.

Can this be used in my attic instead of a sheet metal box (i.e. Store SO SKU #1000800162 20 in. W...

Asked by BrianH321 July 5, 2020
3
Answers

yes

how thick is the fiberglass board

Asked by willie May 30, 2020
1
Answer

The 24 in. x 24 in. x 24 in. Duct Board Plenum Kit - R6.0, is 1.5 inches thick. If you have any other inquiries about our Master Flow products please call Technical Services at 800-211-9612.

How do you add starter flanges? How do you attach to furnace? Will it handle furnace heat if dire...

Asked by roy January 28, 2020
2
Answers

there are starter flanges that have longer tabs made for this purpose. I would check with the manufacture about using it directly attached to the furnace.

Is the inside UV resistant?

Asked by Will January 27, 2020
2
Answers

You can use a UV light inside, make sure to follow the Lights installation instructions for mounting and placement. If you have any other inquiries about our Master Flow products please call Technical Services at 800-211-9612.

i need to remove the humidifier attached to furnace plenum, can i use this product to cover the h...

Asked by MD20878 January 5, 2020
3
Answers

What you should use would depend on what the plenum is made of, please call Technical Services at 800-211-9612.

Can you order an extra side to complete a full box, without having to buy 2 of these units?

Asked by Chris December 13, 2019
2
Answers

We do not have an "extra side" available as a separate product. If you have any other inquiries about our Master Flow products please call Technical Services at 800-211-9612.

Can this be used on the interior of my plenum? My drain plug clogged and my bottom pieces in the return saturated

Asked by Ric July 22, 2019
3
Answers

Yes, can be used as replacement insulation in your plenum, this is great product.

Could this be converted to a triangular terminal box using the top piece triangles as a top and a...

Asked by HomeDIY February 21, 2019
3
Answers

The material is easily cut and could be made into any shape using metal tape to connect and seal the edges.

Can this be used in my attic as the central return box for my return air? I have flex duct returns in attic.

Asked by Mark January 19, 2019
5
Answers

Yes, it can be used as you are describing. This is typically used to attach to the air handler as return air plenum although it can be used to connect returns in the attic as a "mixing box" before attaching to the furnace. If you have any other inquiries about our Master Flow products please call Technical Services at 800-211-9612.

24 in. x 24 in. x 24 in. Duct Board Plenum Kit - R6.0 - page 2

Customer Reviews

  • 49 Customer Reviews
  • 3.7 out of 5 stars overall
70% of customers recommended.
Overall Ratings
5star-icon(19)
4star-icon(14)
3star-icon(5)
2star-icon(2)
1star-icon(9)
Sort By:
I've made a nice trapezoid
I purchased this 24x24" pre fab duct board plenum kit to save time and do the job quickly. I special ordered this kit, and while it arrived for pick up within a week, I was confused to find incorrect/unfinished shiplap edges on the panels. Against my better judgement I followed the mediocre instructions on the packaging, and ended up with an oblong, trapezoid shaped box closer to dimensions of 23x25." I hope this is an error in my kit, because it should be issue for the manufacturer to shiplap all mitered joints to code for an easy assembly.
Was this helpful?
0
0
Largo, FL
Exactly what I needed!
Quality :
5
Value :
5
I opted to tackle the job of replacing my entire duct system myself when the estimate to have pro's do it was in excess of $3000 - and moving up to $4800 after April 1st because of the heat in FL. The junction box that served the far side of my house had obviously been used as a seat by someone and was completely crushed and had a gash in the top, so I had to construct a new junction box, and this was just what I needed. The instructions on the packaging were clear and easy, and the materials were of good quality, and cut easily with a box cutter and a duct knife. To make a complete box with a top and a bottom, you will need 2 kits, as the kit only comes with one panel for top or bottom.
Was this helpful?
19
0
Great product, only comes with 5 sides...
Quality :
4
Value :
4
This duct board plenum kit worked perfectly for my application. I purchased 3, because I had to get the extra sides to build 2 complete boxes, which is my biggest complaint. the only way I knew it was not a complete box was because another reviewer mentioned the same thing. I used 1 box as a supply sub-plenum, 25 ft away from the main furnace supply plenum. 14" flex run in, (3) - 8" flexes out, split to (6) 6" register connections. I used the other box as a return sub-plenum, 35 ft away from the main furnace return plenum. 14" flex run to the box, branching to (4) 8" flexes to return runs in stud cavities. The boxes were easy to assemble once I figured out how to do it, although it takes a while to build them. Comes in 3 "pieces", which make up 5 sides. 2 of the pieces are ready to fold into a half square, with 2 corner seems to tape completing the square. The 3rd piece is an end, with all 4 edges to tape. Fabricating a 6th side from the 3rd plenum kit was easy, just took a side with 3 "beveled" edges, and added a 4th bevel edge using a utility knife. Cutting material is very easy and clean. Used a utility knife with a sharp blade, cuts through like butter. In order to cut completely through the thick material, I used a sharp lock blade knife to finish the cuts. Minimal mess, easy to cut clean holes, no "sawing" required. I would choose to work with this material over sheet metal any day. One more thing. Material is itchy hard fiberglass. Use gloves, try not to get it on your skin.
Was this helpful?
28
0
Awesome product Worked really well to insult plenum On the furnace...
Awesome product Worked really well to insult plenum On the furnace
Was this helpful?
0
0
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Once Stapled,taped with NASHUA tape,membrane and mastic its makes a nice strong box for supply or...
Once Stapled,taped with NASHUA tape,membrane and mastic its makes a nice strong box for supply or return air.
Was this helpful?
0
0
It fit the bill. Had no issue with it....
It fit the bill. Had no issue with it.
Was this helpful?
0
0
There was no way you could make a plenum out of them by just folding and taping. I ordered 4 and ...
There was no way you could make a plenum out of them by just folding and taping. I ordered 4 and everything about them were all cut wrong. Got me some duct board, got out the ol cutters and did it myself. Over 50 years in the business I know a little about it.
Was this helpful?
1
0
The pieces did not match the instructions. I was able...
The pieces did not match the instructions. I was able to cut them to allow them to fit together properly. Also, this product is way overpriced for what it is.
Was this helpful?
1
0
