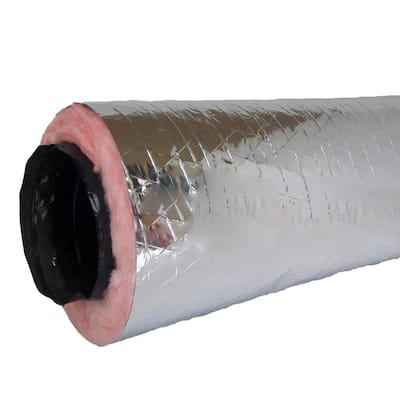

Master Flow 8 in. x 25 ft. Insulated Flexible Duct R6 Silver Jacket
0050206922446

Master Flow

8 in. x 25 ft. Insulated Flexible Duct R6 Silver Jacket

  • R6 fiberglass insulation for greater insulating power
  • Used for heating, A/C systems and some venting
  • Duct can be cut to length as needed
$3098 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • R6 fiberglass insulation for greater insulating power
  • Used for heating, A/C systems and some venting
  • Duct can be cut to length as needed
The Master Flow 8 in. x 25 ft. Insulated Flexible Duct R6 Silver Jacket is used in standard Heating and Air Conditioning (HVAC) systems and some venting applications. The duct has R6 insulation which contains 33% more insulation than the standard R4.2 product. This additional insulation provides greater thermal efficiency to save energy. The product is also covered in a heavy duty, silver jacket for durability. The duct is ETL listed, meeting the UL181 standard.
  • Flexible duct is convenient for use in multiple applications including heating and A/C systems and some venting
  • Oversized core to connect quickly and easily to standard sheet metal fitting
  • Galvanized core wire for greater corrosion resistance vs. non-galvanized wire
  • Insulated duct features a maximum temperature rating of 200 degrees F
  • Always install per instructions and seal using approved mastic or sealant (or approved tape)

Product Overview

  • R6 fiberglass insulation for greater insulating power
  • Used for heating, A/C systems and some venting
  • Duct can be cut to length as needed
Model #: F6IFD8X300
Sku #: 685764
Internet #: 100396936

The Master Flow 8 in. x 25 ft. Insulated Flexible Duct R6 Silver Jacket is used in standard Heating and Air Conditioning (HVAC) systems and some venting applications. The duct has R6 insulation which contains 33% more insulation than the standard R4.2 product. This additional insulation provides greater thermal efficiency to save energy. The product is also covered in a heavy duty, silver jacket for durability. The duct is ETL listed, meeting the UL181 standard.

  • Flexible duct is convenient for use in multiple applications including heating and A/C systems and some venting
  • Oversized core to connect quickly and easily to standard sheet metal fitting
  • Galvanized core wire for greater corrosion resistance vs. non-galvanized wire
  • Insulated duct features a maximum temperature rating of 200 degrees F
  • Always install per instructions and seal using approved mastic or sealant (or approved tape)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
300
Product Diameter (in.)
8 in
Product Height (in.)
12
Product Length (in.)
300 in
Product Width (in.)
12

Details

Color
Silver Jacket
Insulated
Yes
Insulation R-Value
6
Insulator material
Other
Material
Fiberglass
Maximum air flow (CFM)
200
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
2-UL Recognized,ETL Listed

Specifications

Dimensions

Product Depth (in.)
300
Product Diameter (in.)
8 in
Product Height (in.)
12
Product Length (in.)
300 in
Product Width (in.)
12

Details

Color
Silver Jacket
Insulated
Yes
Insulation R-Value
6
Insulator material
Other
Material
Fiberglass
Maximum air flow (CFM)
200
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
2-UL Recognized,ETL Listed

Questions & Answers

Will the insulation help with reducing sound between rooms? Looking to install this in return air...

Will the insulation help with reducing sound between rooms? Looking to install this in return air that runs between above-garage-apartment and the main house through the attic and want to make sure sound doesn't carry from one room the the other.
Asked by: Landlord
We installed this under our kitchen floor and don't hear a thing from it. Of course there is R 30 insulation under the floor.
Answered by: DD
Date published: 2018-01-07

can i use this for hot air outlet on a wood furnace

can i use this to connect hot air outlet of wood furnaces to oil furnaces. i'm running black stove pipe for the first couple of feet out of the hot air outlet of furnaces then i was going to use this for the rest. can it take the heat from the furnaces being that close to it
Asked by: fiberman38
Absolutely not. This is designed to carry cold or hot air only, not flue gases. The interior is a metal coil covered in plastic foil which would probably melt or even catch fire from hot flue gasses.
Answered by: kidsnave
Date published: 2017-12-20

is the outer jacket of this insulation a vapor barrier ?

Asked by: mickey
from my reading, yes it is. be sure to use an appropriate tape to join and seal the ends
Answered by: GeoSplash
Date published: 2017-11-17

Can this be used for the inlet side of a Furness or will it collaps?

Asked by: Mike
Thus is merely a duct. Your intake plenum should take the initial force. As long as airflow is not restricted, no duct should collapse, including this one.
Answered by: DROG2002
Date published: 2017-12-19
